portable concrete pump for sale with China manufacturer

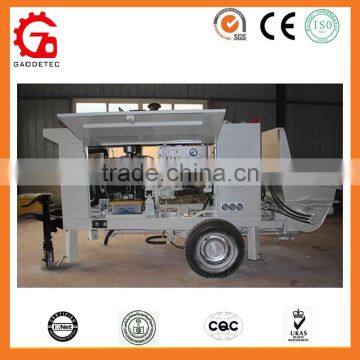

GPS-30 portable concrete pump with diesel engine
GPS-30 concrete pump is a small size coarse aggregate concrete conveying pump, it is used for the project which large concrete pump cannot construct or other small output concrete conveyance.
Feature of portable concrete pump:
1. It can convey coarse aggregate like large concrete pump
2. As it is small and light weight, so it is easy to set in the tunnel which height is only 2-3m.
3. Distribution system valve is skirt valve, the abrasion is easy to be repaired.
4. Skirt valve type hopper is easy to maintain and repair, dismounting needs no hanger
GPS-30 portable concrete pump data:
| Model | GPS-30 | ||
| Basic data | Max.output(high pressure) | m³/h | 34 |
| Max.output(low pressure) | m³/h | 50 | |
| nveying pressure(high pressure) | Mpa | 8 | |
| Max.horizontal conveying distance | m | 240 | |
| Max.vertical conveying distance | m | 96 | |
| nveying pressure(low pressure) | Mpa | 4.8 | |
| Max.horizontal conveying distance | m | 144 | |
| Max.vertical conveying distance | m | 58 | |
| Distributing valve | petticoat valve | ||
| Main oil cyclinder (Cylinder bore*stroke) | mm | Φ 100*Φ65*800 | |
| Concrete cylinder(Cylinder bore*stroke ) | mm | Φ 195*800 | |
| Hopper capacity * filling height | mm | 650*1200 | |
| Outlet diameter | mm | Φ 150 | |
| Power system |
Diesel engine | Cummins | |
| model | 4BT3.9-C100 | ||
| Rated power | kw | 74 | |
| Rated rotating speed | r/min | 2200 | |
| Main oil pump | Liyuan(China) | ||
| Model | A10V071 | ||
| Main oil pump output | ml/r | 71 | |
| Hydraulic circuit | Open circuit electric-hydraulic control | ||
| Hydraulic system |
Main hydraulic system pressure | Mpa | 28 |
| Distributing system pressure | Mpa | 16 | |
| Mixing system pressure | Mpa | 12 | |
| Hydraulic oil tank capacity | L | 320 | |
| Max.aggregate | mm | pebble 50,macadam 40 | |
| other data | Hydraulic oil cooling way | Air cooling/Water cooling | |
| High/Low pressure shift | Hand | ||
| Remote control | wired remote control | ||
| Dimension | mm | 4768*1700*2300 | |
| Weight | kg | 3480 |
We have many types concrete conveying pump,the output is from 7-70 m³/h.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Cleanning ball for cleaning the hose of portable concrete pump
copper bushing for rotation axis

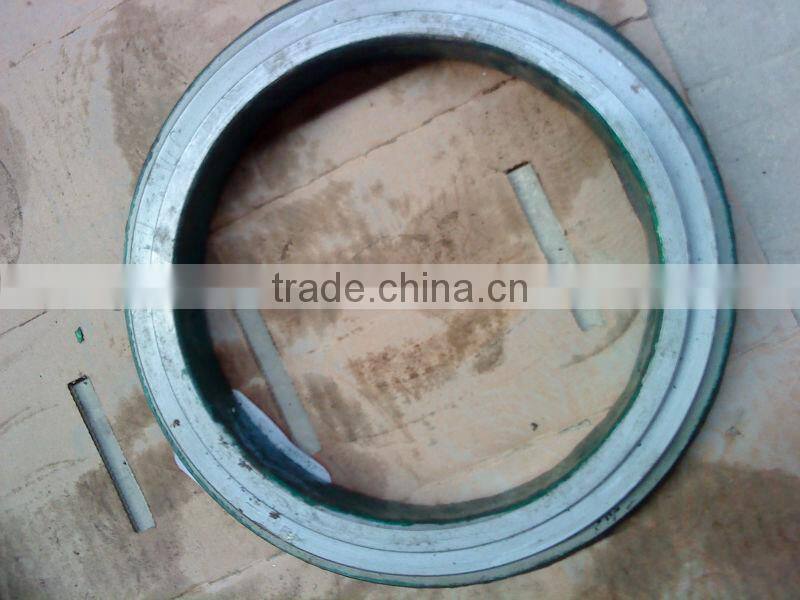

cutting ring

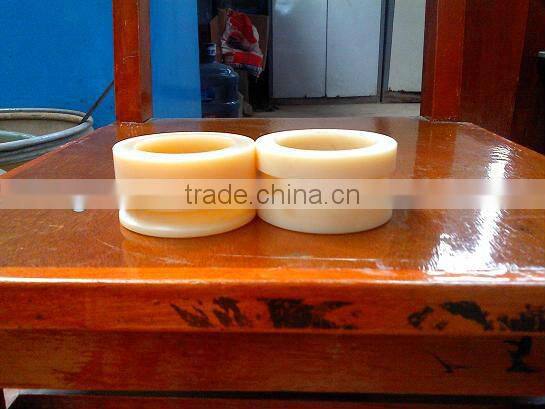

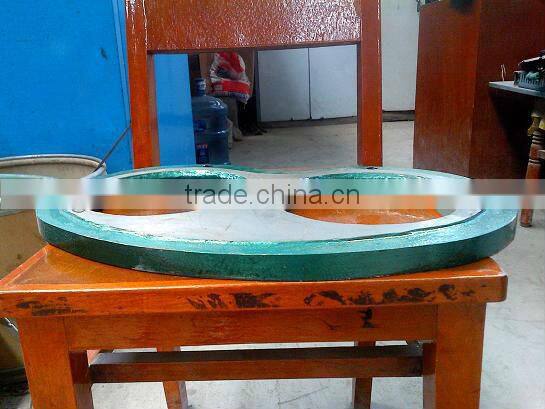

glass plate and mixing shaft sleeve

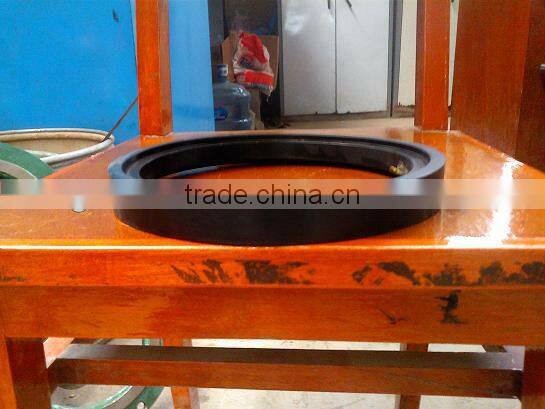

rubber spring
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
