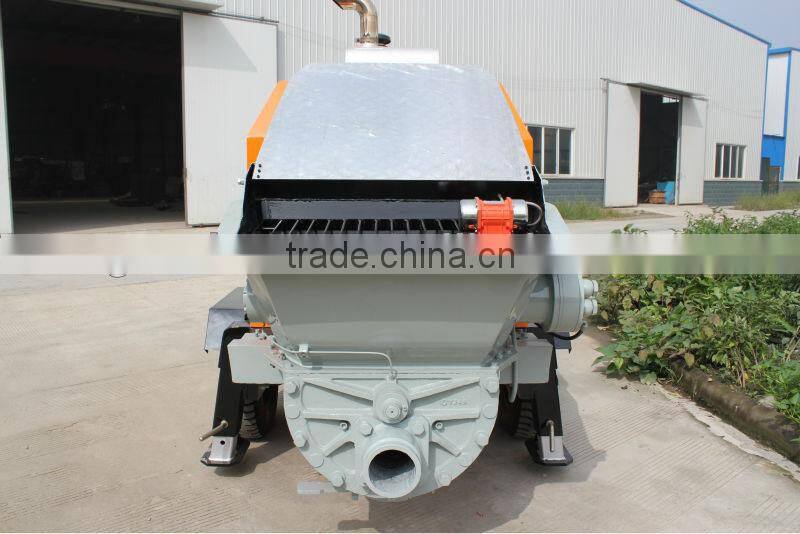

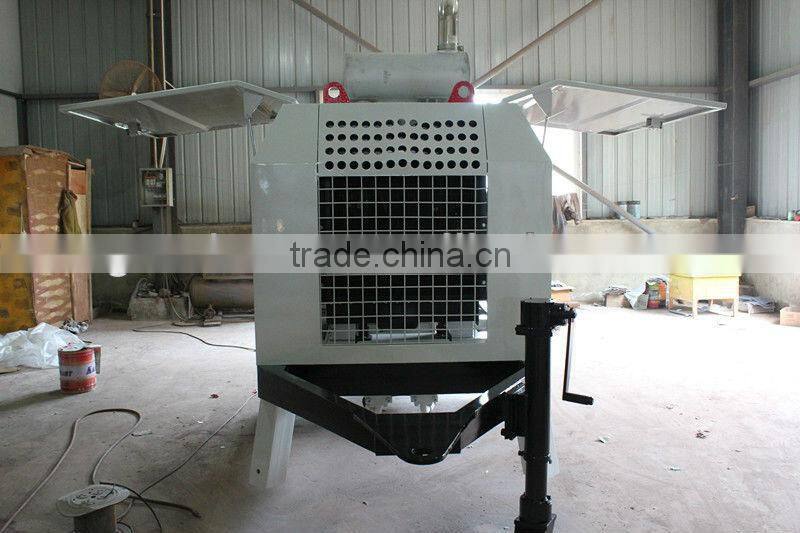

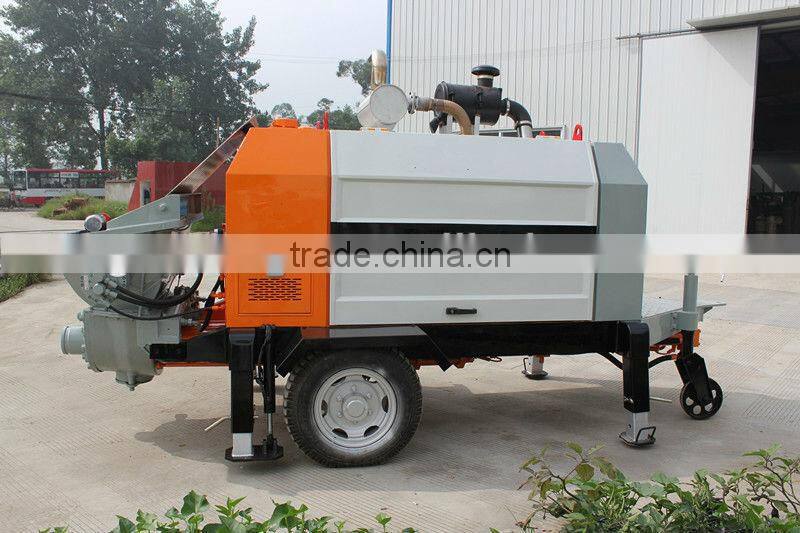

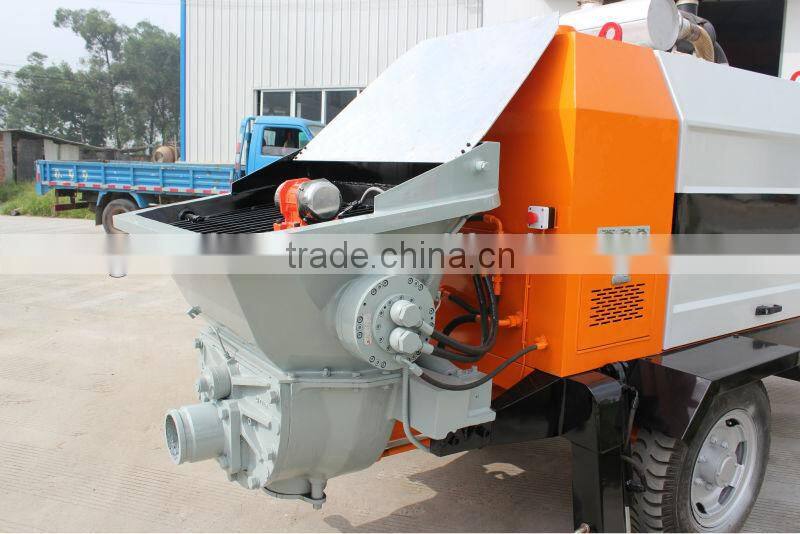

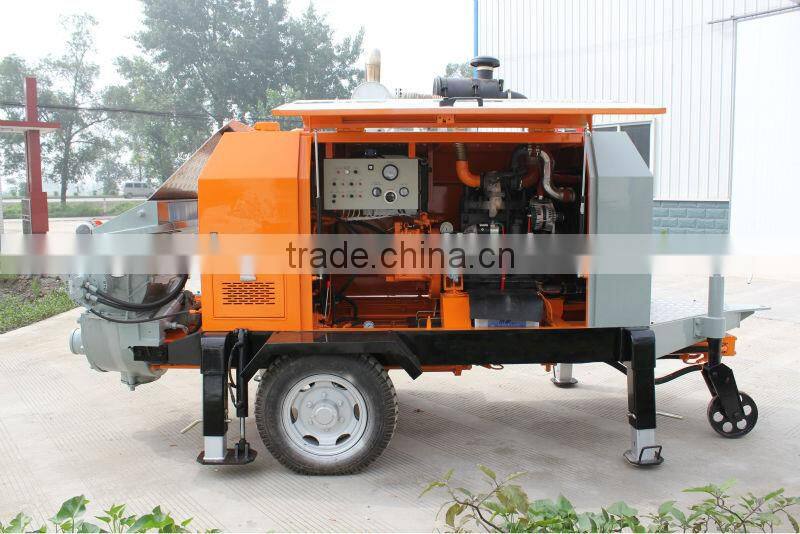

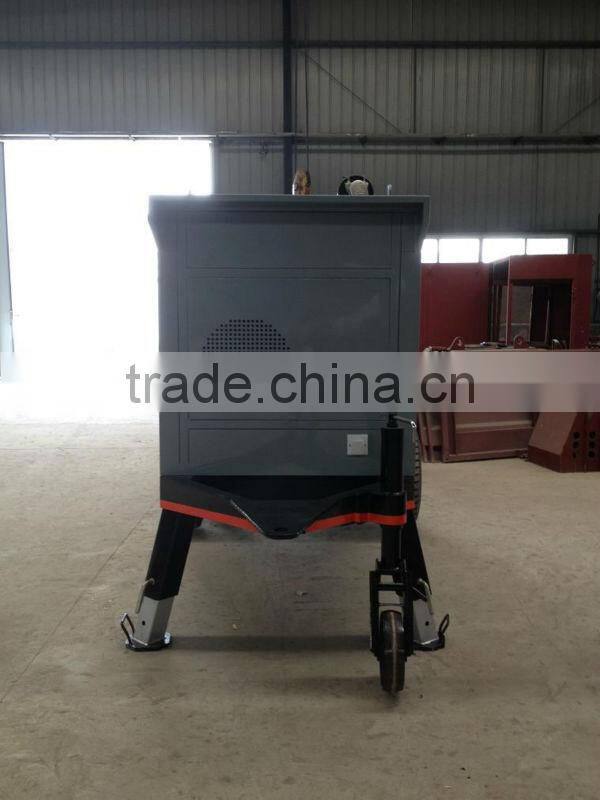

Multi-use 15m3/h plunger type concrete conveying pump China supplier
Choose GEC, choose high quality!
GPS-15 multi-use plunger type concrete conveying pump with diesel engine
GPS-15 multi-use concrete conveying pump is a constant pressure plunger pump.It can be track type according to the customers' requirement.
Feature of concrete conveying pump:
1. Main system and distributing system has a function of interlocking, that is when distributing valve is not ready, the main oil cylinder will not work to avoid the jam.
2. Hydraulic system is open circuit, main oil pump is A10V045.
3. Unique design for oil tank and powerful water cooling system can make the temperature of hydraulic oil lower than 65 C ° . So it can make sure the safety of system.
4. S valve and open hydraulic system can make the inhalation rate of various concrete pump more than 90%.
GPS-15 concrete conveying pump data:
| Model | GPS-15 | ||
| Basic data | Max.output | m³/h | 15 |
| ure | Mpa | 10 | |
| Max.horizontal conveying distance | m | 300 | |
| Max.vertical conveying distance | m | 120 | |
| Distributing valve | S valve | ||
|
Main oil cyclinder(Cylinder bore*stroke ) |
mm | Φ100*Φ65*800 | |
|
Concrete cylinder(Cylinder bore*stroke ) |
mm | Φ 160*800 | |
| Hopper capacity * filling height | mm | 400*1120 | |
| Outlet diameter | mm | Φ 125 | |
|
Power system |
Diesel engine | Lovol | |
| Model | F4L912 | ||
| Rated power | kw | 56 | |
| Rated rotating speed | r/min | 2200 | |
| Main oil pump | Liyuan(China) | ||
| Model | A10V045 | ||
| Main oil pump output | ml/r | 45 | |
| Hydraulic circuit | Open circuit electric-hydraulic control | ||
|
Hydraulic system |
Main hydraulic system pressure | Mpa | 28 |
| Distributing system pressure | Mpa | 12 | |
| Mixing system pressure | Mpa | 10 | |
| Hydraulic oil tank capacity | L | 180 | |
| Max.aggregate | mm | pebble 40,macadam 30 | |
| other data | Hydraulic oil cooling way | Air cooling/Water cooling | |
| Remote control | wired remote control | ||
| Dimension | mm | 4500*1600*2300 | |
| Weight | kg | 2870 | |
We have many types concrete conveying pump,the output is from 7-70 m³/h.
