Choose GEC,choose high quality!

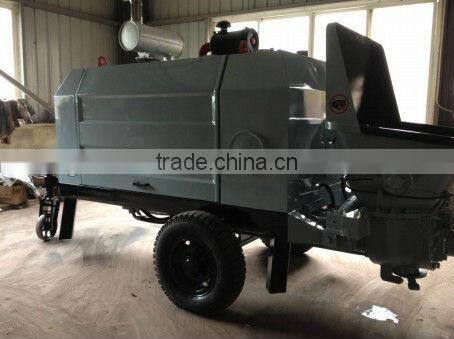

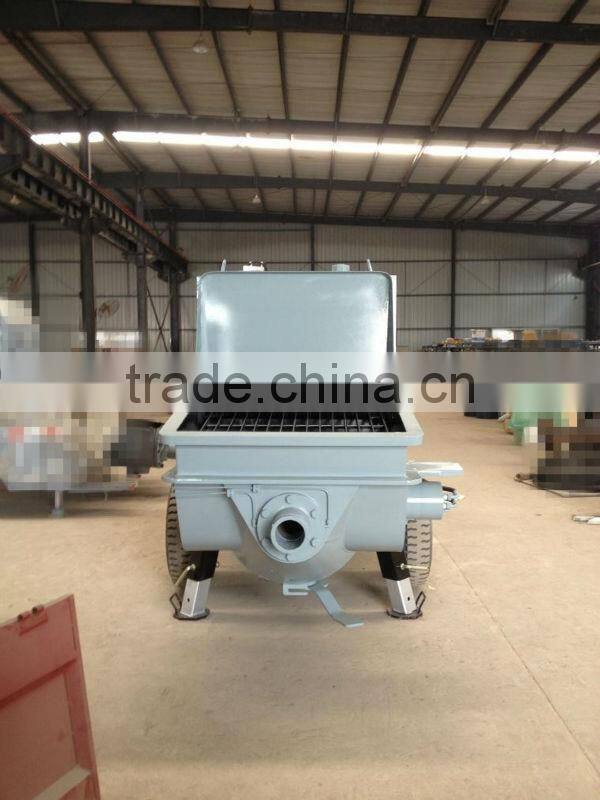

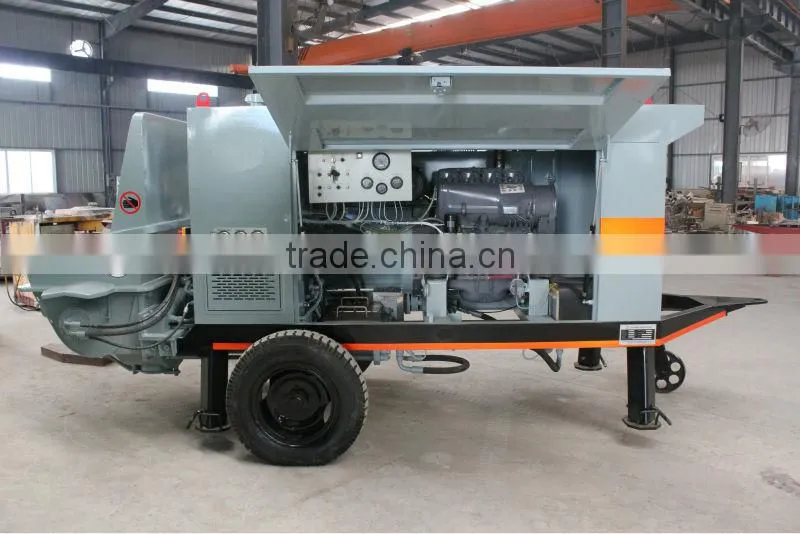

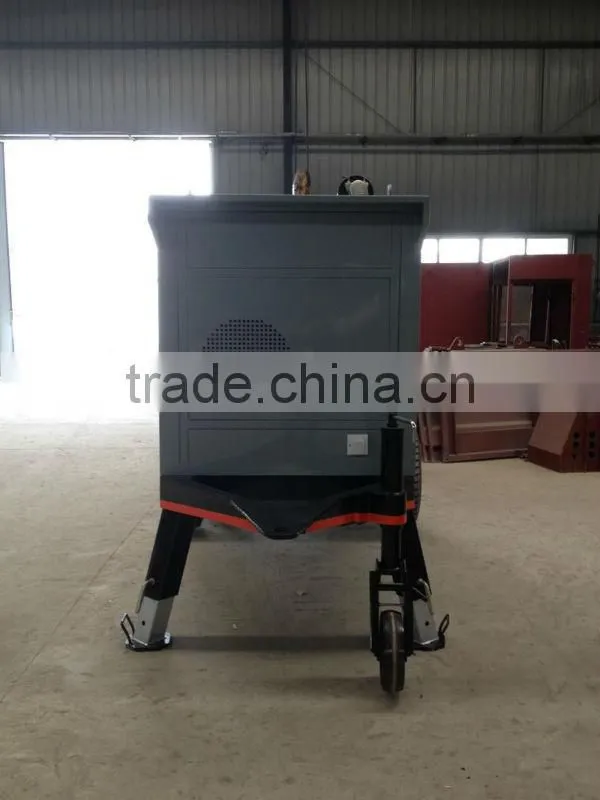

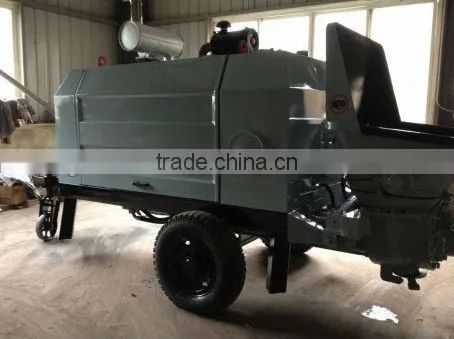

GPS-50 powerful hydraulic concrete pump for sale
Features of concrete pump for sale:
1.K3V112S(Kawasaki) constant output high pressure plunger pump has super service life.
2.Distributing system valve is skirt valve, hopper has no blind angle. Concrete in hopper can fall without resistance, and improve absorption efficiency of concrete cylinder.
3.Hydraulic system is open single pump double circuit control system.
concrete pump for sale data:
| Model | GPS-50 | ||
| Basic data | Max.output(high pressure) | m³/h | 50 |
| Max.output(low pressure) | m³/h | 70 | |
| nveying pressure(high pressure) | Mpa | 10 | |
| Max.horizontal conveying distance | m | 450 | |
| Max.vertical conveying distance | m | 120 | |
| nveying pressure(low pressure) | Mpa | 5.3 | |
| Max.horizontal conveying distance | m | 171 | |
| Max.vertical conveying distance | m | 68 | |
| Distributing valve | Skirt valve | ||
| Main oil cyclinder(Cylinder bore*stroke ) | mm | Φ 100*Φ65*1400 | |
| Concrete cylinder(Cylinder bore*stroke ) | mm | Φ 180*1400 | |
| Hopper capacity * filling height | mm | 650*1200 | |
| Outlet diameter | mm | Φ 150 | |
| Power system | Diesel engine | Cummins | |
| Model | 4BT3.9-C125 | ||
| Rated power | kw | 93 | |
| Rated rotating speed Main oil pump | r/min | 2200 Kawasaki(Japan) | |
| Model | K3V112 | ||
| Main oil pump output | ml/r | 112 | |
| Hydraulic circuit | Open circuit electric-hydraulic control | ||
| Hydraulic system | Main hydraulic system pressure | Mpa | 32 |
| Distributing system pressure | Mpa | 16 | |
| Mixing system pressure | Mpa | 12 | |
| Hydraulic oil tank capacity | L | 320 | |
| Max.aggregate | mm | pebble 50,macadam 40 | |
| other data | Hydraulic oil cooling way | Air cooling/Water cooling | |
| High/Low pressure swift | Hand | ||
| Remote control | wired remote control | ||
| Dimension | mm | 4900*1850*2300 | |
| Weight | kg | 3800 | |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We have many types concrete pump for sale, its output is from 7-70 m³/h
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
