QT5-15 Fully Automatic Block Making Production Line Interlocking Cement Block Making Machine
- 5 Set / Sets per Month
- Shanghai or other
- T/T L/C D/P D/A Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Cutting Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | Hollow Block 6240 pcs./8hours | Place of Origin: | Henan, China | Brand Name: | GD |
Model Number: | QT5-15 | Voltage: | Local Voltage | Power: | 24.7KW |
Dimension(L*W*H): | 3000x1900x2930mm | Certification: | CE ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

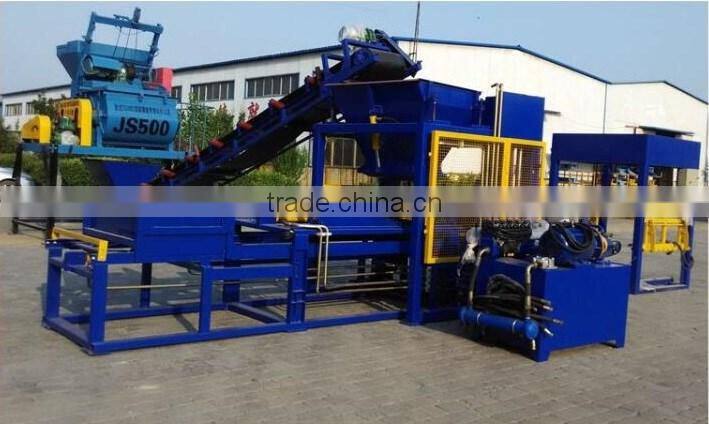

QT5-15 Fully Automatic Block Making Production Line Interlocking Cement Block Making Machine
QT5-15 block making machine with different types of moulds is used to make concrete pavement blocks, hollow blocks, solid blocks, interlocking bricks etc. It can be described as a machine to meet various needs of different customers from companies or individual.
Raw material:Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel,
perlite, and other industrial wastes.

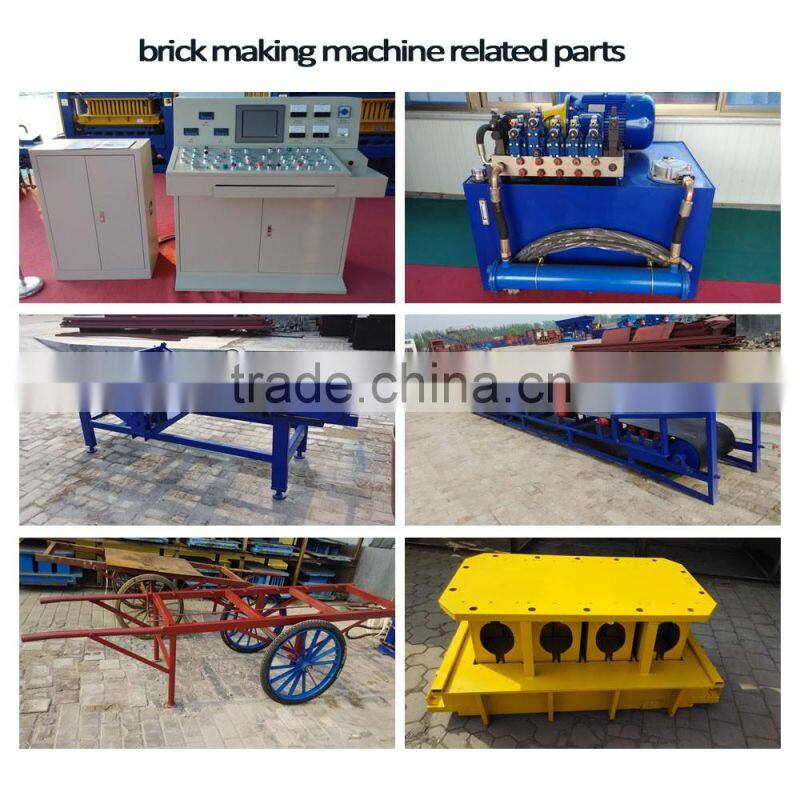

Related parts
Features
1.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and
density.The machine can produce hollow block,solid block,paving block by changing mould.
2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and
well distributed.The vibration is oil-immersed to have a good lubrication.
3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.
4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.
5.Mould is made with heat treatment, carburizing.So working life of mould is improved.
Specification:
Description | Data |
Block making machine type | QT5-15 |
Vibration Frequency | 4200r/min |
Vibration Force | 70KN |
Cycle Time | 15-25sec |
Power | 24.7KW |
Mode of Vibration | Table Vibration |
Pallet Size | 1100 x700x30mm |
Overall Weight | 6T |
Overall Dimension | 3000x1900x2930mm |
Recommendation Configuration
Description | Quantity | Remark |
Main Machine | 1set |
|
Hydraulic System | 1set |
|

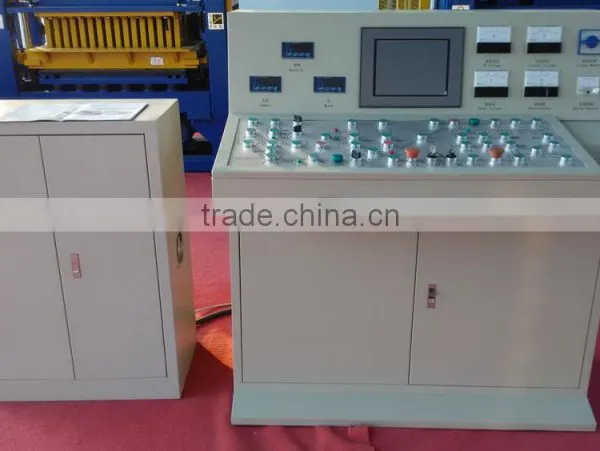

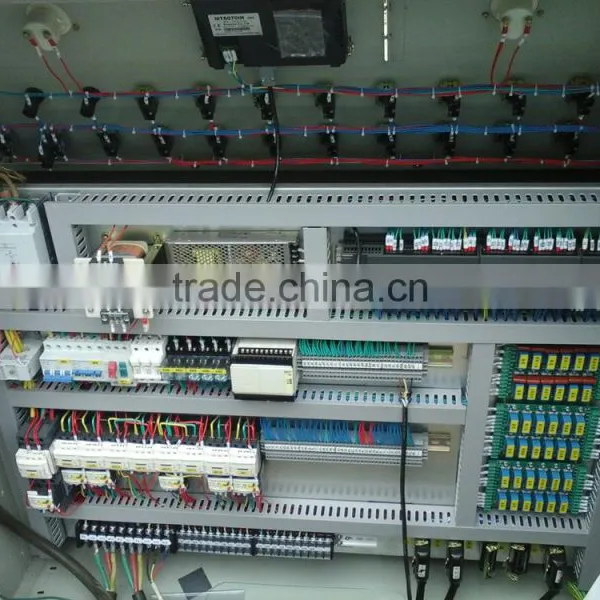

ElectricControl Cabinet | 1set |
|
Concrete Feeder | 1set |
|
Pallets Feeder | 1set |
|
Belt Conveyor | 1set |
|
Pallet Stand | 1set |
|
HT350 Mixing Machine | 1set |
|

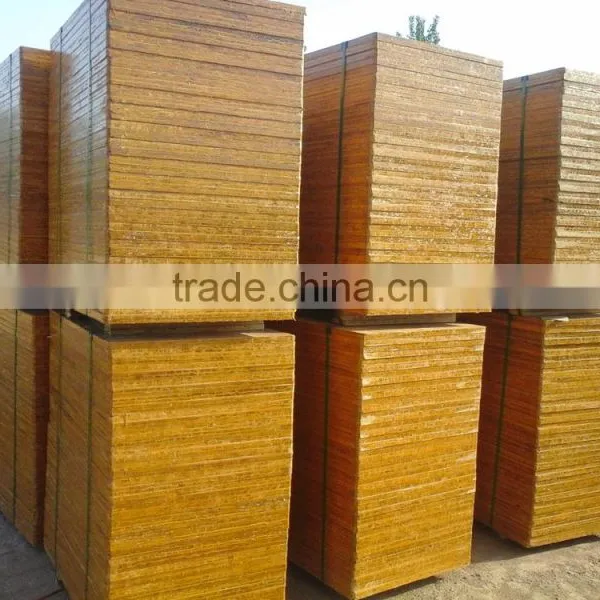

Pallet | 15 pieces |
|
Manual Cart | 4sets |
|
Colour Feeder | 1set | Optional Parts |
Pallet(960x630x30mm) | 1000pieces | Optional Parts |
Production Capacity
Block Type | Picture | Size(L x W x H) | Pcs./Mold | Pcs./Hour | Pcs./8 Hours |
Hollow Block |
| 390x190x190mm | 5 | 780 | 6240 |
Hollow Block |
| 390x150x190mm | 6 | 940 | 7520 |
Hourdi Block |
| 530x160x195mm | 6 | 940 | 7520 |
Stock Brick |
| 220x110x70mm | 24 | 5400 | 43200 |
Paving Block |
| 200x100x60mm | 22 | 3160 | 28280 |
Paving Block |
| 225x112.5x60mm | 20 | 2880 | 23040 |
Block/brick Samples

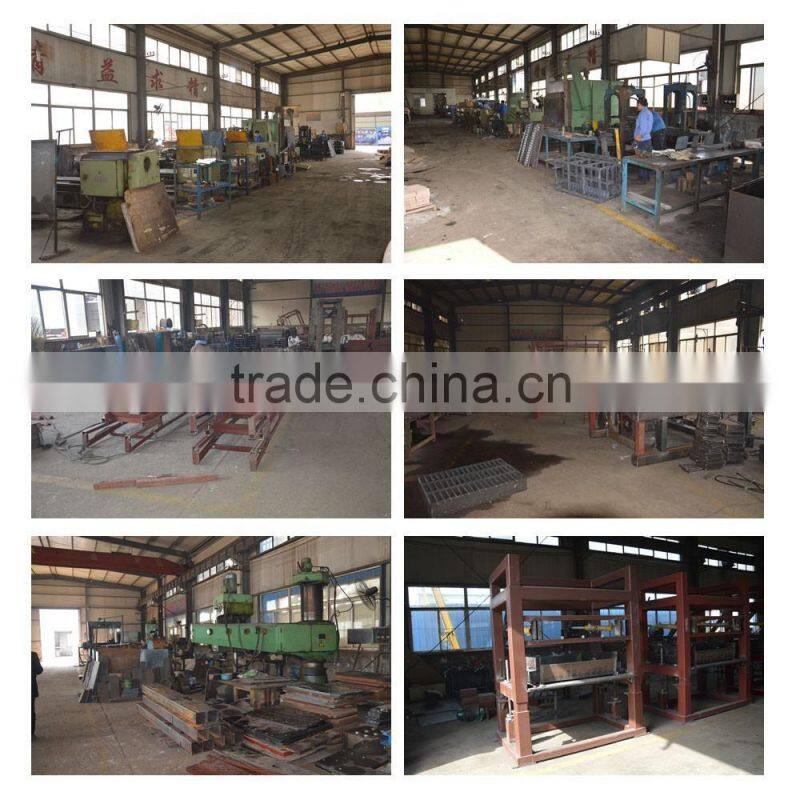

Our workshop show
1. What is the service we will provide?
We will arrange technicians to customers' factory to guide installation and training operators.
Details of installation will be provided by Installation Report.
2. What is the information for recommending the suitable brick machine type?
In order to provide the suitable machine for you, we need comfirm the below question about: the brick type and brick size the customers' requirement, the production per day the customer require.
3. Which machine type is that we can provide for customers?
According to the requirement of customer, we can provide QT4-15 Semi-automatic block making machine, QT5-15 Semi-automatic block making machine, QT7-15 Semi-automatic block making machine, QT5-15 Automatic block making machine, QT7-15 Automatic block making machine and QT8-15 Automatic block making machine for customers.

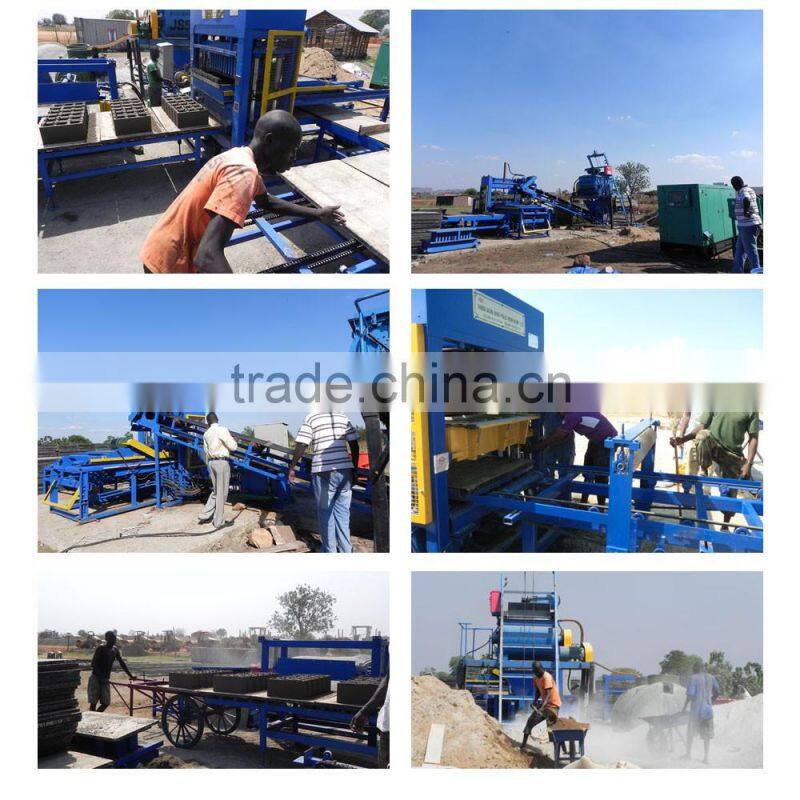

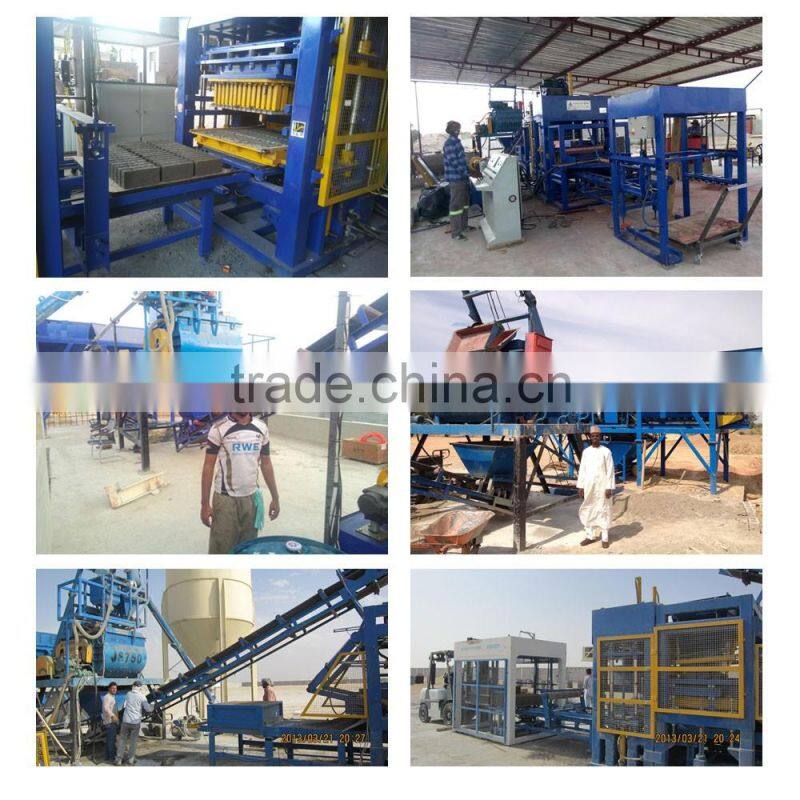

Our customers in the world
