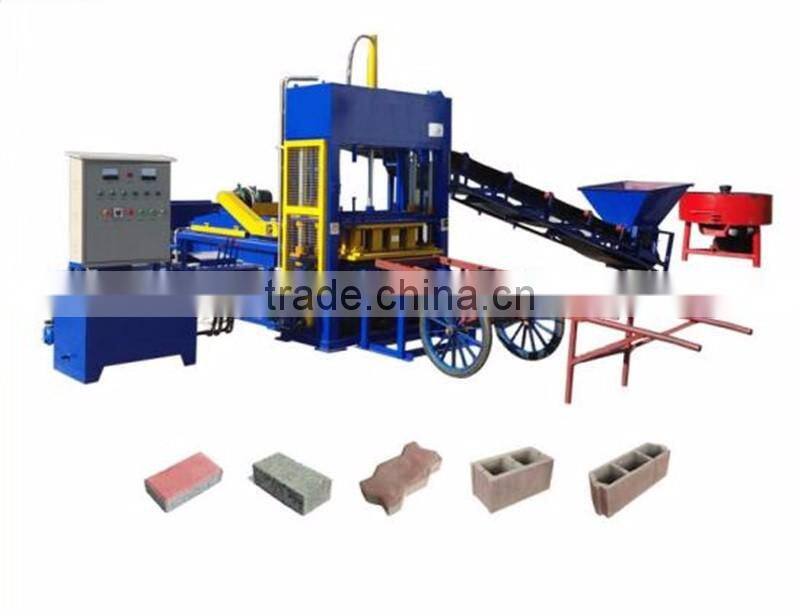

QT4-15 Semi-Automatic Fly Ash Cement Brick Making Machine Price in india
The brick making machine has a good design and simple operation, which will make you feel the value of technology. For simple operation, morden way of moulding, power-saving and special technology, the value of the machine is higher than price.
Production Features
1.Way of moulding is vibration combined with hydraulic pressure. So blocks have good strength and
density. The machine can produce hollow block,solid block, paving block by changing mould.
2.The way of concrete feeding into mould is compulsive by three shaft with blades. It is quick speed
and well distributed. The vibration is oil-immersed to have a good lubrication.
3.Only two vibration motors is always working, other motors works fitfully. So it is power saving.
4.Concrete feeder, pallet feeder, up mould and down mould is powered by hydraulic system.
5.Mould is made with heat treatment, carburizing. So working life of mould is improved.
Main Technical Specification:
Description | Data |
Block making machine type | QT4-15 |
Vibration Frequency | 4200r/min |
Vibration Force | 70KN |
Cycle Time | 15-25sec |
Power | 19.9KW |
Mode of Vibration | Table Vibration |
Pallet Size | 960x630mm |
Weight | 4500KG |
Dimension | 2800x1570x2600mm |
Production Capacity
Block Type | Picture | Size(L x W x H) | Pcs./Pallet | Pcs./Hour | Pcs./8 Hours |
Hollow Block |
| 390x190x190mm | 4 | 625 | 5000 |
Hollow Block |
| 390x150x190mm | 5 | 780 | 6240 |
Hourdi Block |
| 530x160x195mm | 5 | 780 | 6240 |
Stock Brick |
| 220x110x70mm | 20 | 4500 | 36000 |
Paving Block |
| 200x100x60mm | 16 | 2300 | 18400 |
Paving Block |
| 225x112.5x60mm | 14 | 2000 | 16000 |
Recommendation Configuration
Description | Quantity | Remark |
Main Machine | 1set |
|
Hydraulic System | 1set |
|
ElectricControl Cabinet | 1set |
|
Concrete Feeder | 1set |
|
Pallets Feeder | 1set |
|
Belt Conveyor | 1set |
|
Pallet Stand | 1set |
|
HT350 Mixing Machine | 1set |
|
Pallet | 15 pieces |
|
Manual Cart | 4sets |
|
Colour Feeder | 1set | Optional Parts |
Pallet(960x630x30mm) | 1000pieces | Optional Parts |

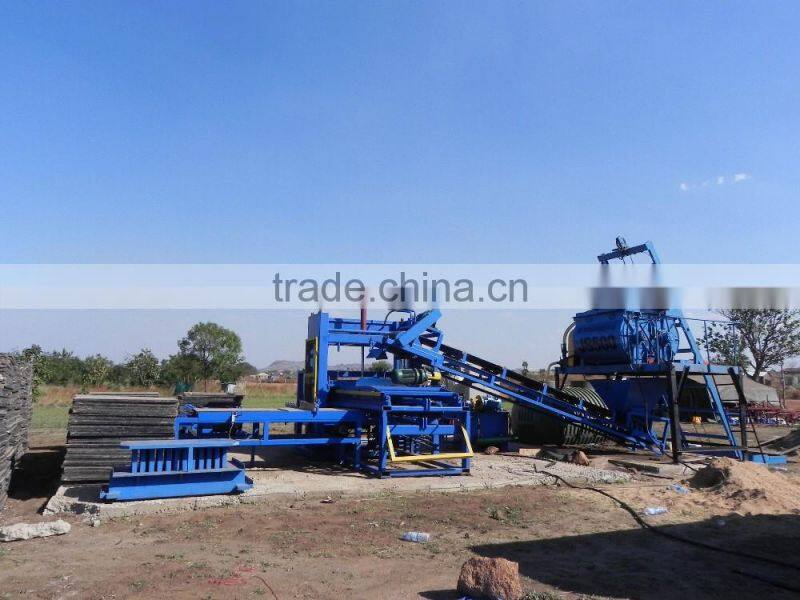

Our Brick Making Machine at worksite
The information you may like to know before order:
1. Methods of Payment:
Trade Assurance, T/T (Telegraphic Transfer), Western Union or L/C at sight.
2. Handling time for an order:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control:
We have our own experienced ISO9001.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded);
b. Technical Support will be available in any time;
