LEC Brand LZ-3E electric motor drive Spray Concrete Shotcrete Gunning Machine
Description:
LEC Brand LZ-3E electric motor drive Spray Concrete Shotcrete Gunning Machine is small-sized shotcrete machine/equipment/Gunning machine for the dry spraying process.
It can be used for small jobs or compact worksite, such as joint filling, swimming pool, refractory application work, etc.
We can offer other versions: air motor or diesel drive combined skid or rail-wheel shotcrete machine.
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
LEC Brand LZ-3E electric motor drive Spray Concrete Shotcrete Gunning Machine data
Specification (with Electric motor drive): | |
Rated Output |
3m 3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤ 1: 3~5 |
Water Cement Ratio |
< 0.4 |
Max. Aggregate Size |
Φ 10 mm |
Conveying Hose Inner Diameter |
42/51mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m³ /min(180-215CFM |
Motor Power |
3kW(4hp) |
Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height |
0.9m |
Rotor Speed |
13.2r/min |
Overall Dimension(L× W× H) |
1.13× 0.54× 1.02m |
Net Weight |
430kg |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Accessories of Gunning Machine :

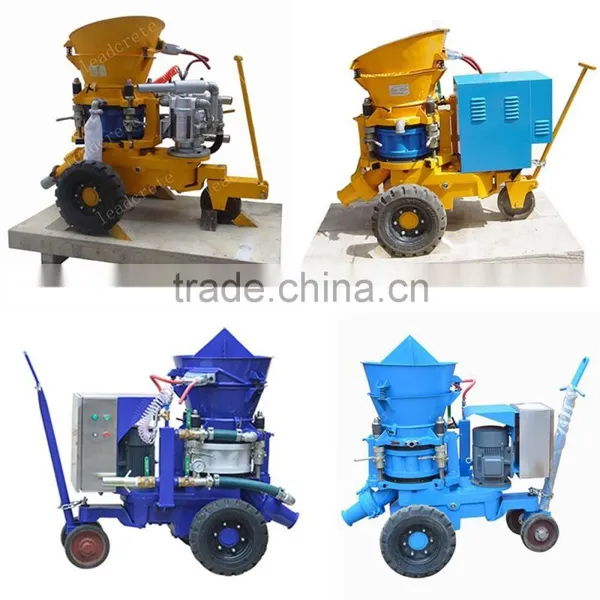

Other Electric Drive Shotcrete Machines
LZ3000E wet-mix concrete spraying machine video application:
Other air motor or diesel drive dry mix shotcrete machine we supply:

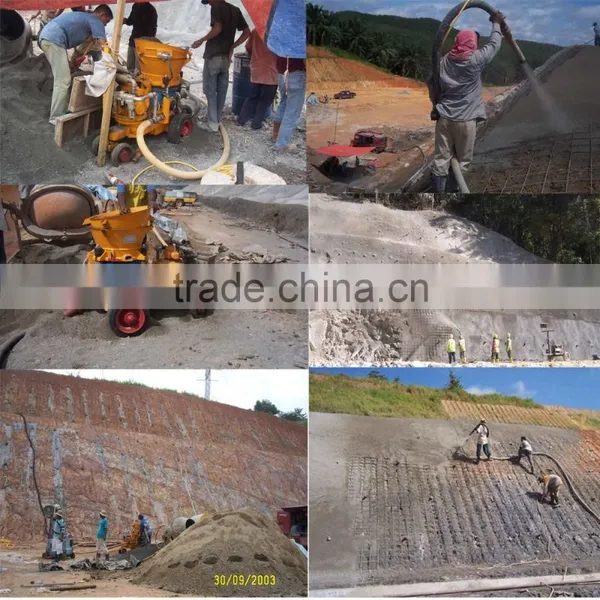

Spray Concrete Shotcrete Gunning Machine On Site:
Spray Refractory shotcrete Gunning Machine on site:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
Why choose us ?
1. We are China's leading gunning machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certifications our company:
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~
FAQ:
Thank you for your time and welcome to visit our factory!
