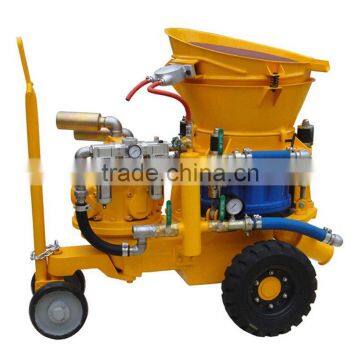

dry-mix durable shotcrete gunite machine for concrete repairing
dry-mix durable shotcrete gunite machine for concrete repairing description:
According to customer needs, our machine is designed and manufactured by us
based on our original LZ-5 concrete spraying machine. Besides holing all advantages of LZ-5 concrete spraying machine , LZ-5A Air motor drive concrete spraying machine holds the additional new features:
In worksites, only one compressed air hose is connected to the inlet of LZ-5A Air motor drive concrete spraying machine , the machine can work, without electric power supply.
The output of machine can be Variable Speed from 2.5-5 cubic meter per hour(or from 3.3-6.6 cubic yards per hour)
The LZ-5A concrete spraying machine can work in the explosion protection worksites.
LZ-5A Air motor drive concrete spraying machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel
dry-mix durable shotcrete gunite machine for concrete repairing
LZ-5 shotcrete machine
Dry-mix durable shotcrete gunite machine for concrete repairing technical data:
Output |
2.5-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
Max. Aggregate Size |
Φ15 mm |
Conveying Hose Inner Diameter |
Φ51 mm |
Operating air Pressure for gunite machine |
0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material |
8~9m3/min(285-325CFM) |
Air Pressure for air motor |
0.5MPa(72PSI) |
Air Consumption for air motor |
7.5m3/min (268CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
10rpm |
Total air consumption |
16.5m3/min (590CFM) |
Required air compressor work pressure |
0.7MPa(100PSI) |
Overall Dimension(L×W×H) |
1.35×0.75×1.2m |
Weight |
720 kgs |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Dry-mix durable shotcrete gunite machine for concrete repairing spare parts:
Dry-mix durable shotcrete gunite machine for concrete repairing application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Dry-mix durable shotcrete gunite machine for concrete repairing Package:
Why choose us ?
1. We are China's leading dry-mix gunite machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
We can also customize the shotcrete machines and here are some customized shotcrete machines for your reference.
You can tell us your request and welcome to consult!
LZ-5 Customizable Rack-mounted Concrete Spraying Machine:
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~
