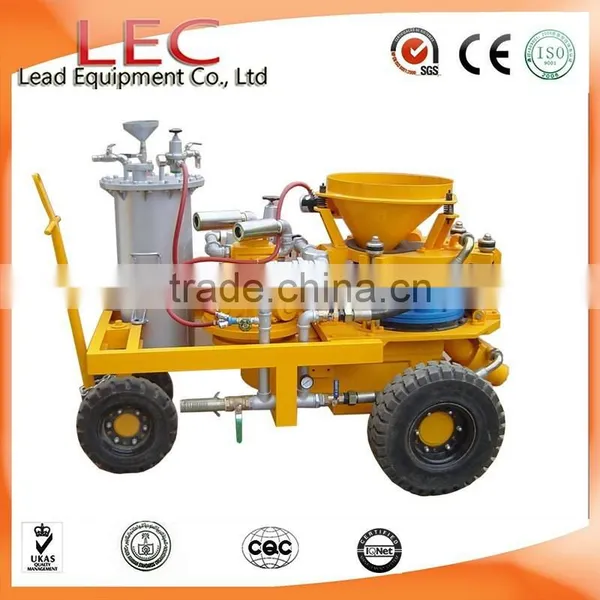

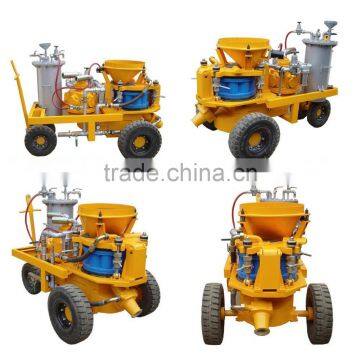

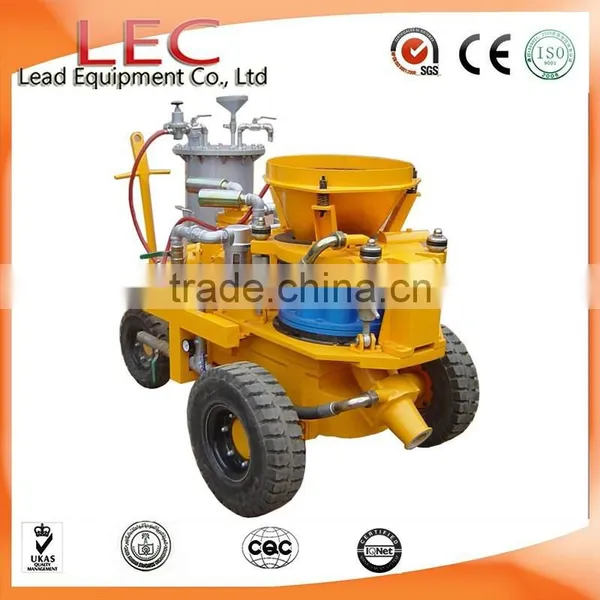

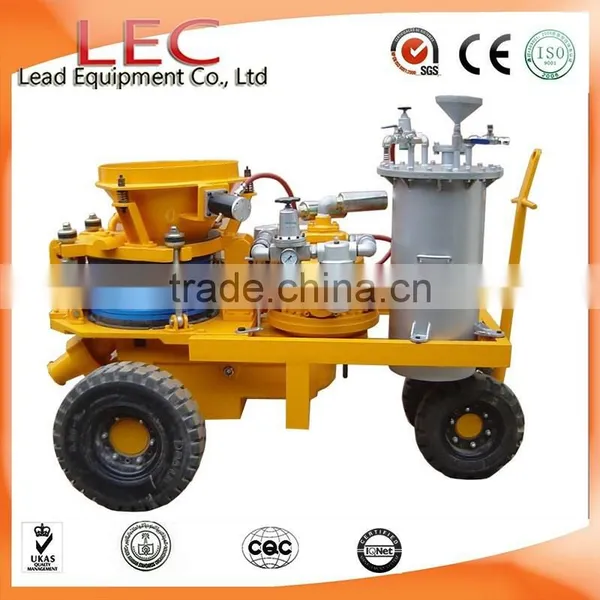

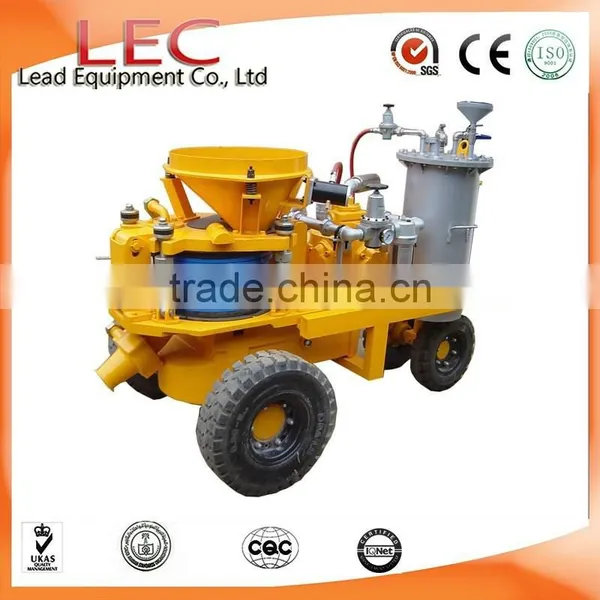

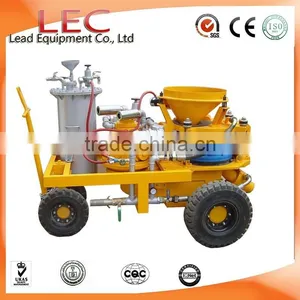

Professional fibre spraying used wet-mix mortar spraying shotcrete machine
I. Professional fibre spraying used wet-mix mortar spraying shotcrete machine description:
LSZ3000A pneumatic wet concrete spraying machine for sale is a universal concrete spraying machine for the processing of wet or dry mix.
LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel
LZ3000E wet-mix concrete spraying machine video application:
II. Professional fibre spraying used wet-mix mortar spraying shotcrete machine Main technical data
Air motor drive:
Rated output |
5m3/h |
Max. horizontal conveying distance |
35m |
Max. aggregate size |
Dia.15mm |
Concrete slump |
8~15cm |
Conveying hose |
Dia.50/65mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
22m3/min (12+10) |
Loading height |
1.17m |
Rotor Rev. |
11r/min |
Rebound |
≤10 % |
Air motor power |
8kW |
Dosing pump model |
BHA530 Dosing pump |
Dosing pump rated pressure |
0.5MPa |
Dosing pump output |
0~100L/h |
Overall dimension(L×W×H) |
1950×1050×1360mm |
Weight |
1200Kg |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Accessories of Shotcrete Machine :
Application on site
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.

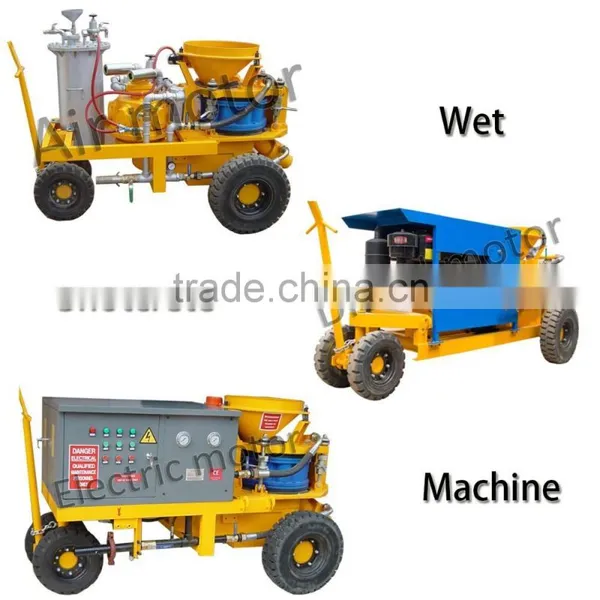

Other shotcrete machine we supply:
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~
Why choose us ?
1. We are China's leading concrete spraying machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Our factory:
Certification of our company
FAQ:
Thank you for your time and welcome to visit our factory!
