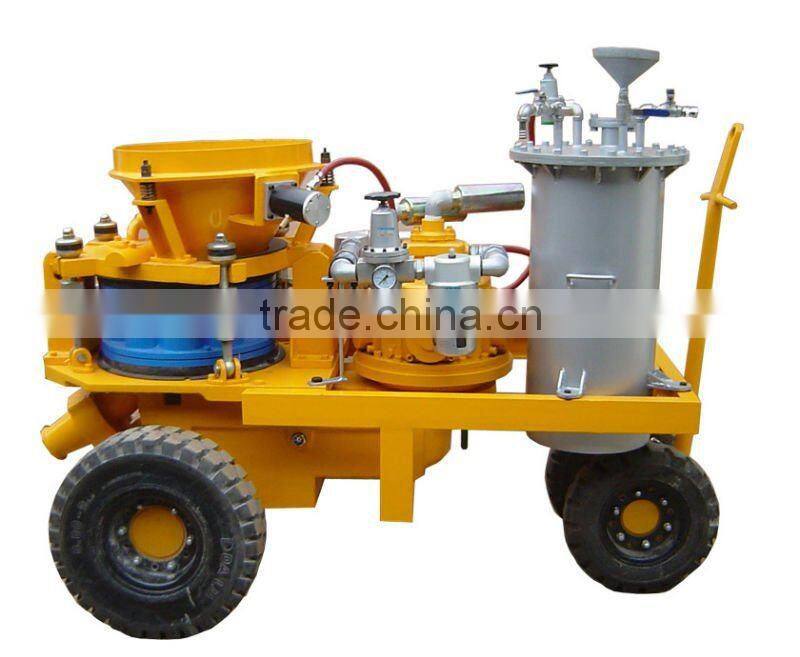

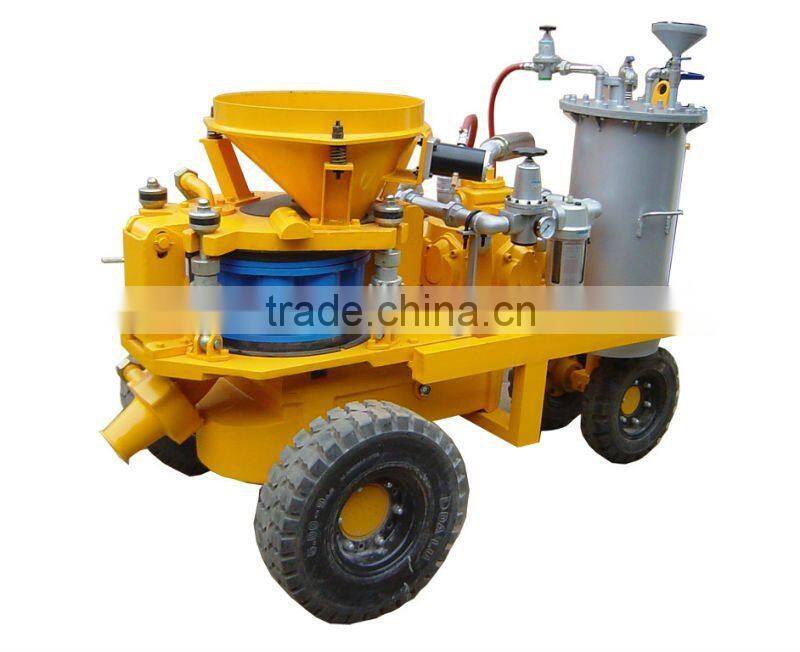

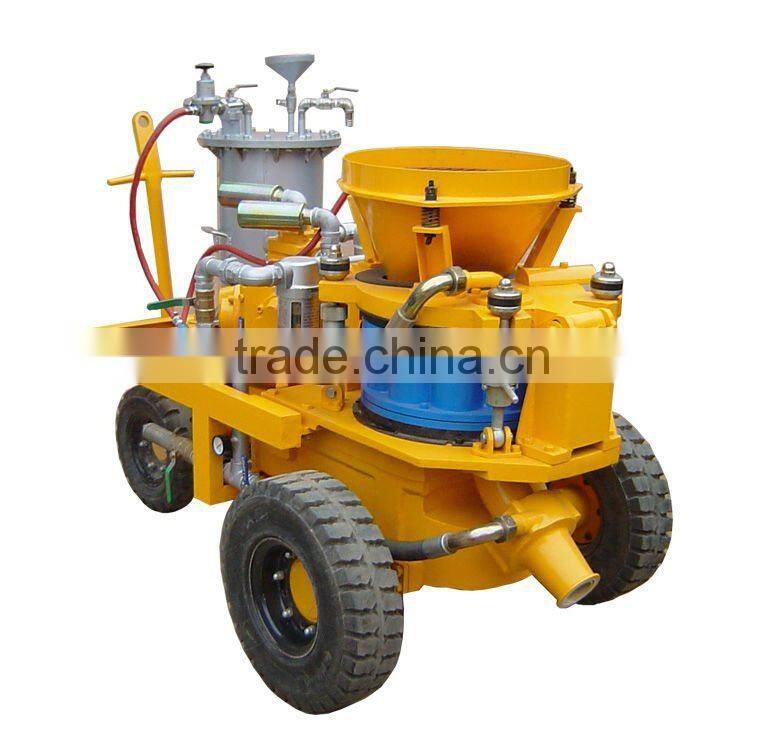

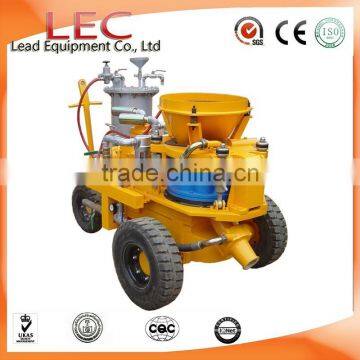

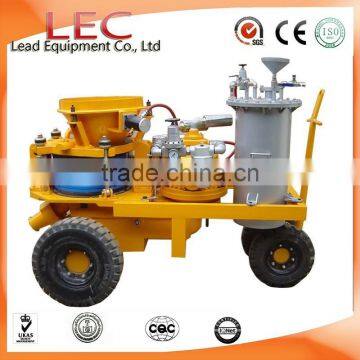

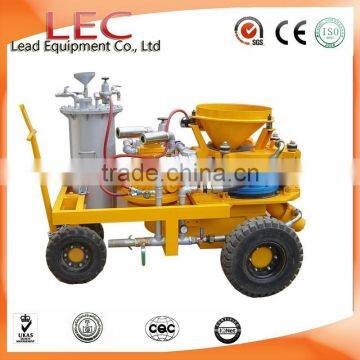

LSZ3000A tunnel pneumatic air motor wet and dry shotcrete spraying machine
LSZ3000A tunnel pneumatic air motor wet and dry shotcrete spraying machine description
LSZ3000A concrete pumping equipment is a full pneumatic driven unit. And it mainly is used for wet spraying concrete. Its advantages are easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, Perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
LSZ3000A tunnel pneumatic air motor wet and dry shotcrete spraying machine technical data
Rated output |
5m3/h |
Max. horizontal conveying distance |
35m |
Max. aggregate size |
dia.15mm |
Concrete slump |
8~15cm |
Conveying hose |
dia.50/65mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
22m3/min (12+10) |
Loading height |
1.17m |
Rotor Rev. |
11r/min |
Rebound |
≤10 % |
Air motor power |
8kW |
Dosing pump model |
BHA530 Dosing pump |
Dosing pump rated pressure |
0.5MPa |
Dosing pump output |
0~100L/h |
Overall dimension(L×W×H) |
1950×1050×1360mm |
|
Weight
|
1200Kg
|
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Application
LZ3000E wet-mix concrete spraying machine video application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package
Why choose us ?
1. We are China's leading shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company:

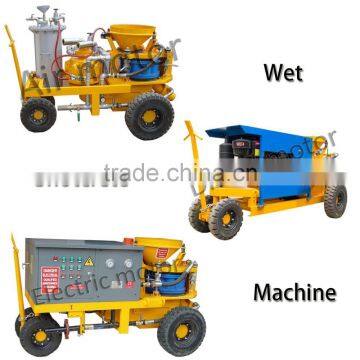

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~
Thank you for your time and welcome to visit our factory!
