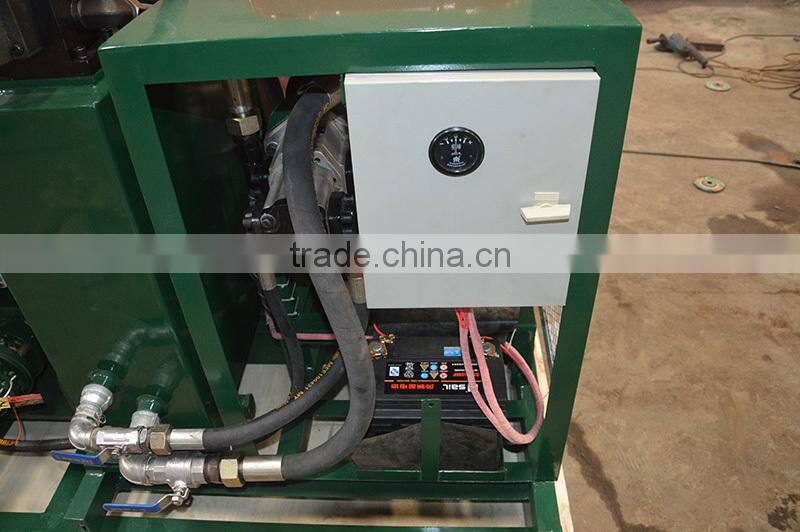

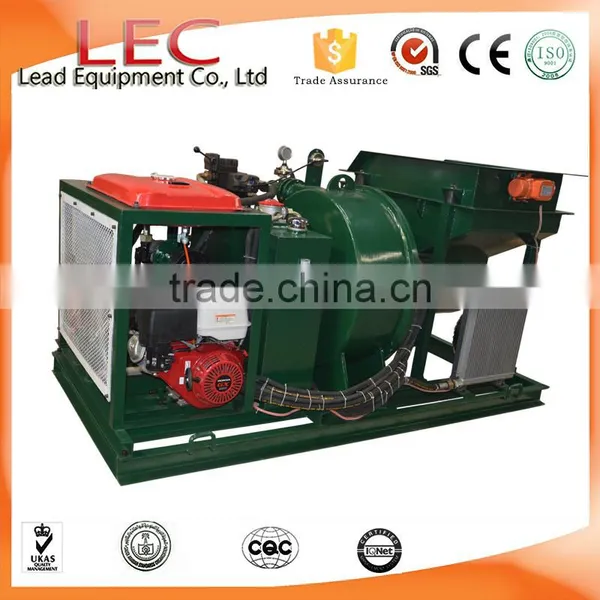

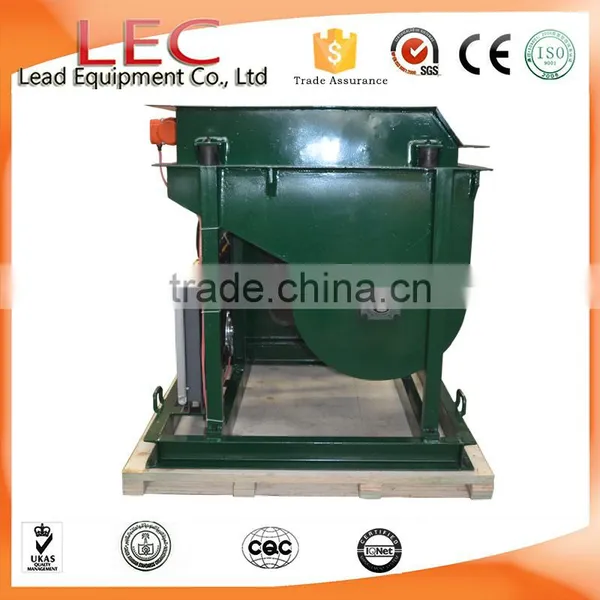

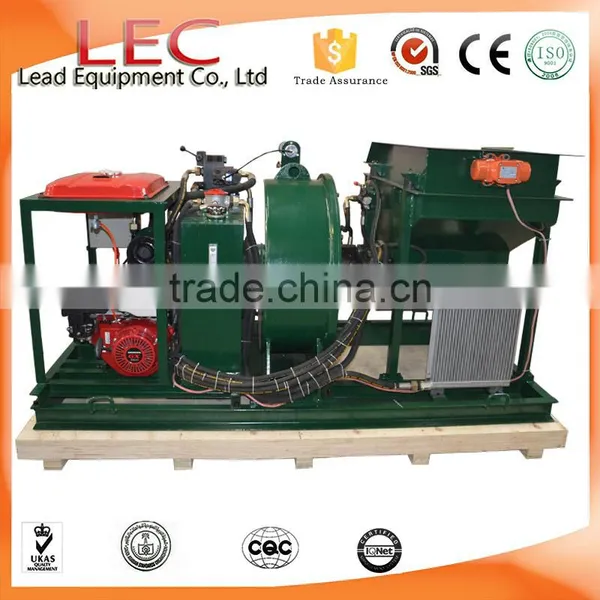

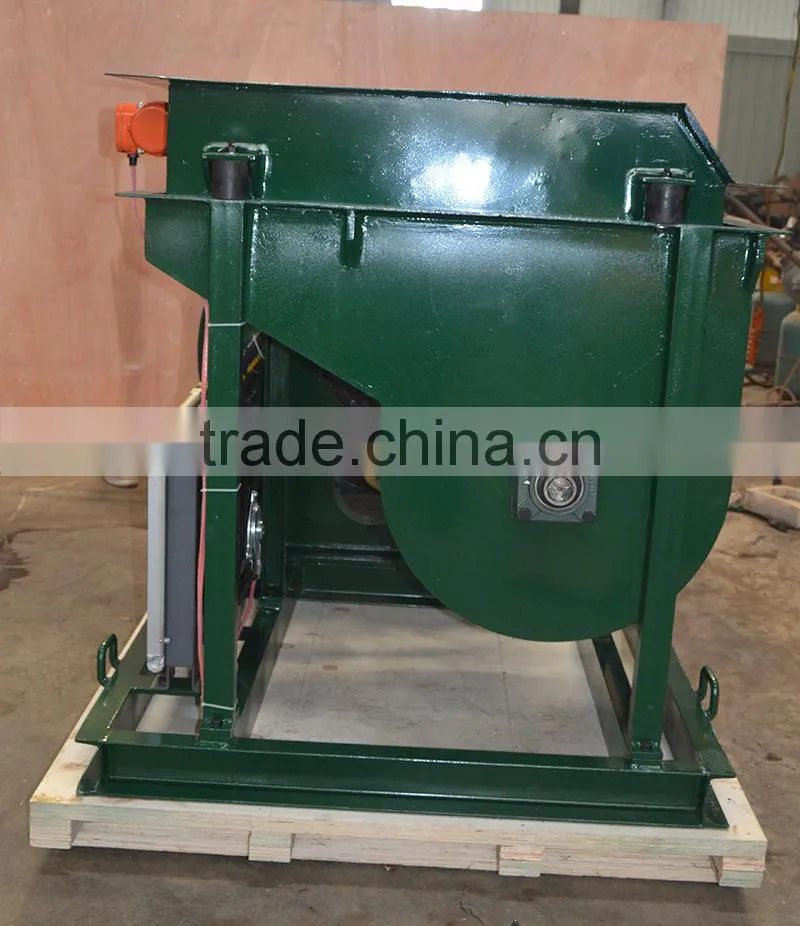

LDS2000G dome building small shotcrete concrete pump machine
Description of small shotcrete machine

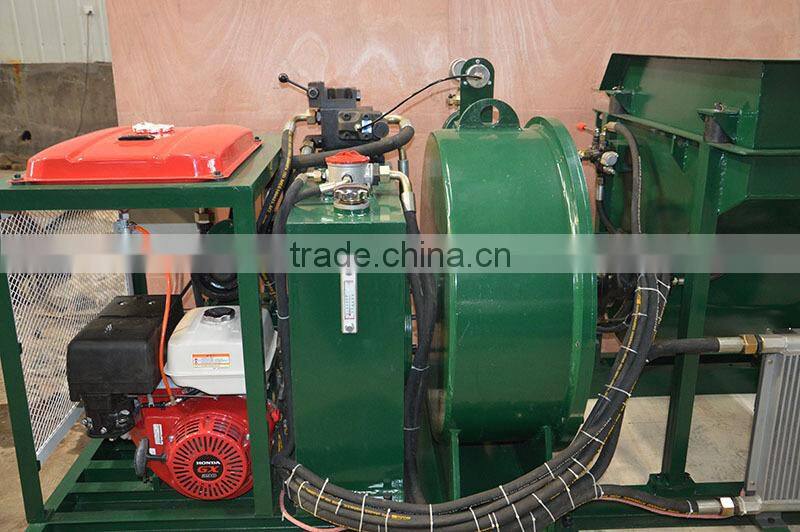

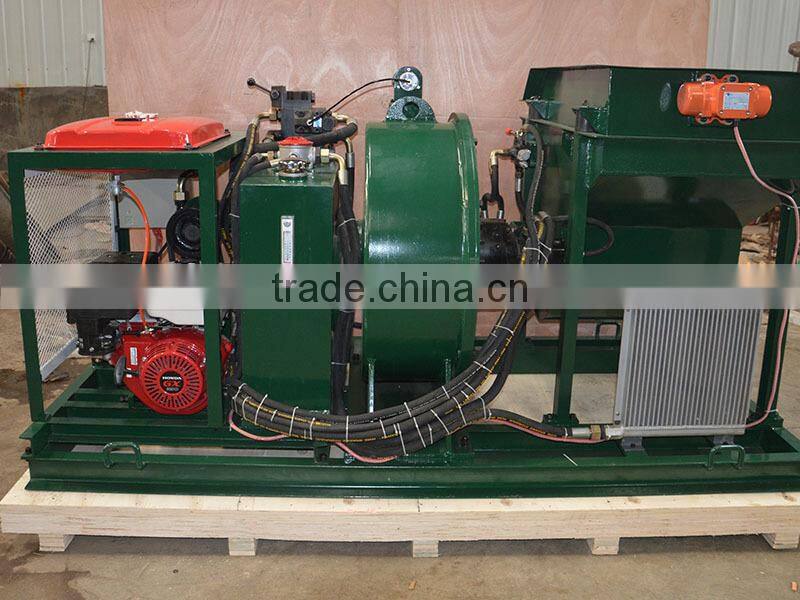

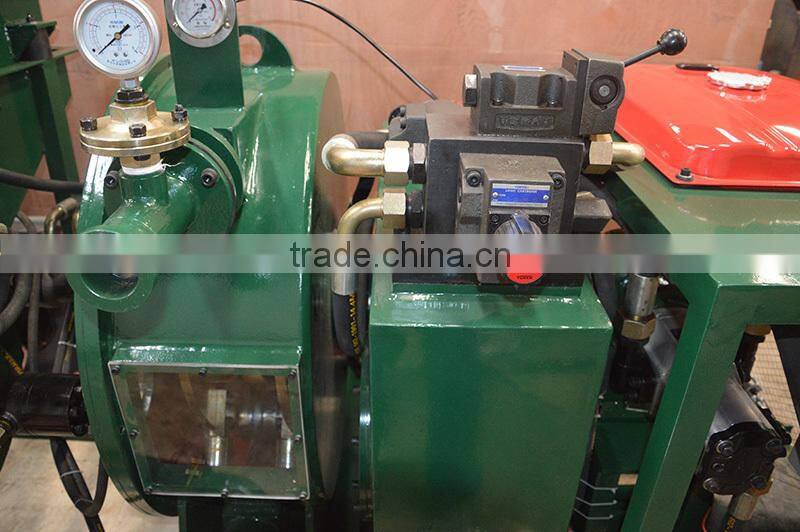

The LDS2000G is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.
Features of small shotcrete machine

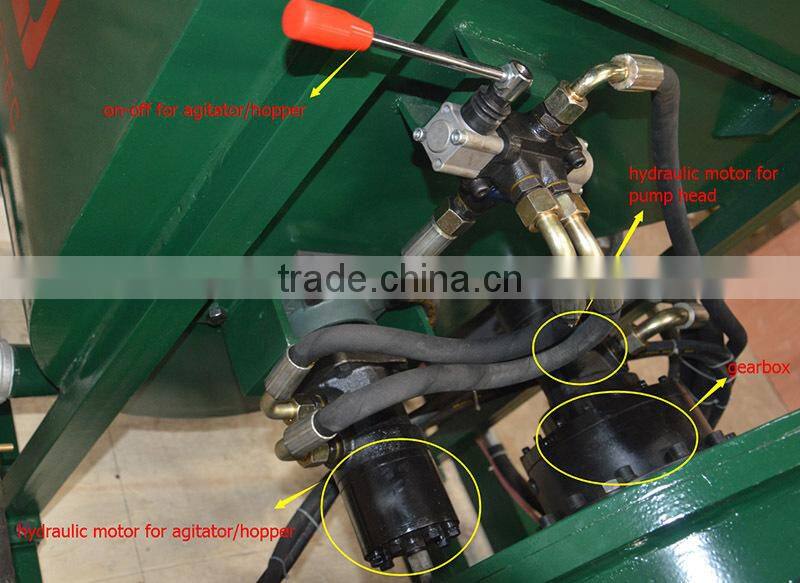

1) Highly-reliable direct drive planetary gearbox
2) Infinite speed variation

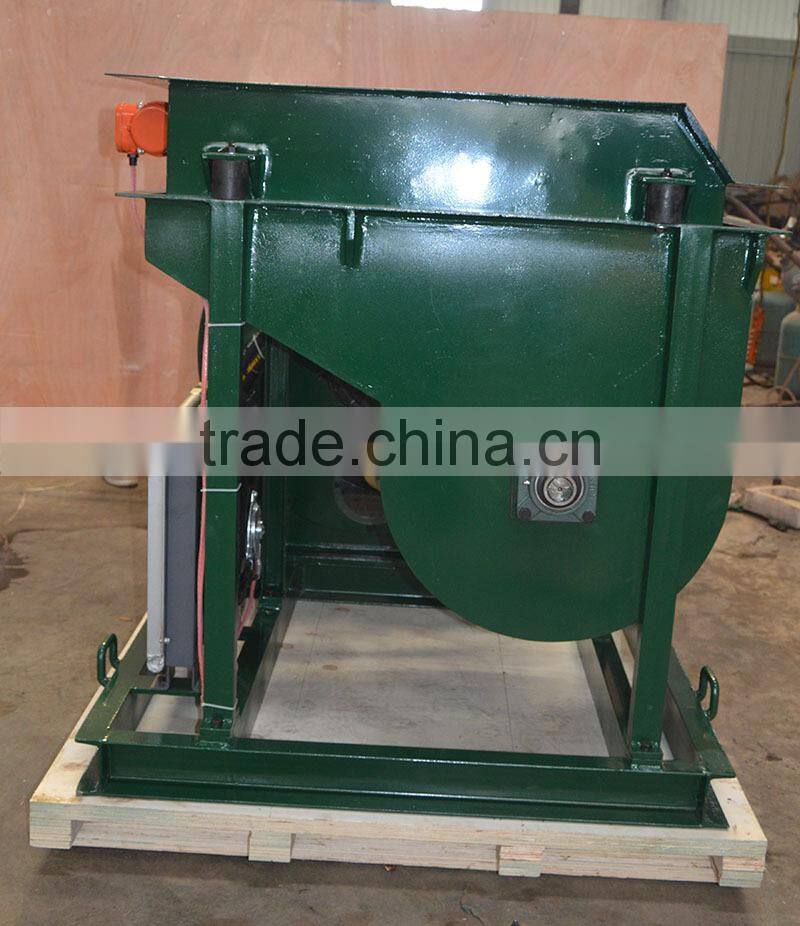

3) Specially hopper/ agitator stir design

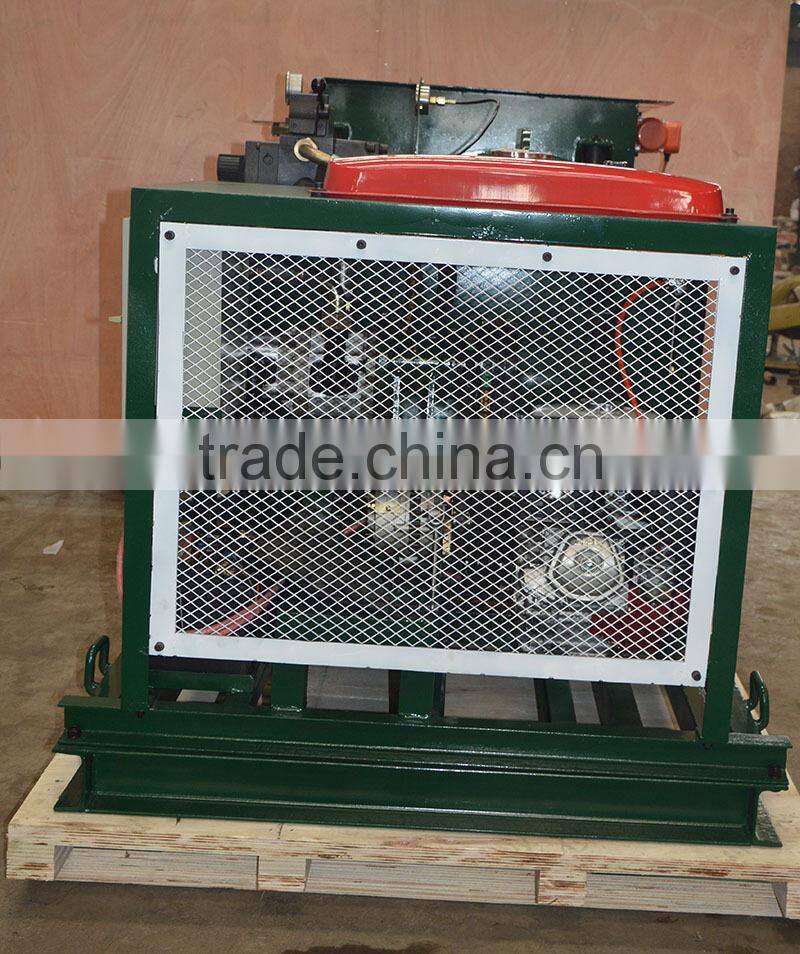

4) Honda GX390 and GX630 gasoline engine for option
5) Easily operating on site work
6) Standard spare part supply
Technical Data Sheet of small shotcrete machine
Item |
Description |
Working Pressure |
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output |
6-8m3/h |
Max. Aggregate |
10mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 50mm |
Squeeze pump |
GH50-680 |
Power |
Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure) |
Hopper volume: |
240 Liter |
Hopper rated rev. |
76r/min |
Oil tank |
130 Liter |
Requested air compressor |
6m3/min, 0.6Mpa Pressure |
Vertical Conveying Distance |
15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance |
40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Weight |
900kg |
Overall Dimension |
2350x1250x1450mm |

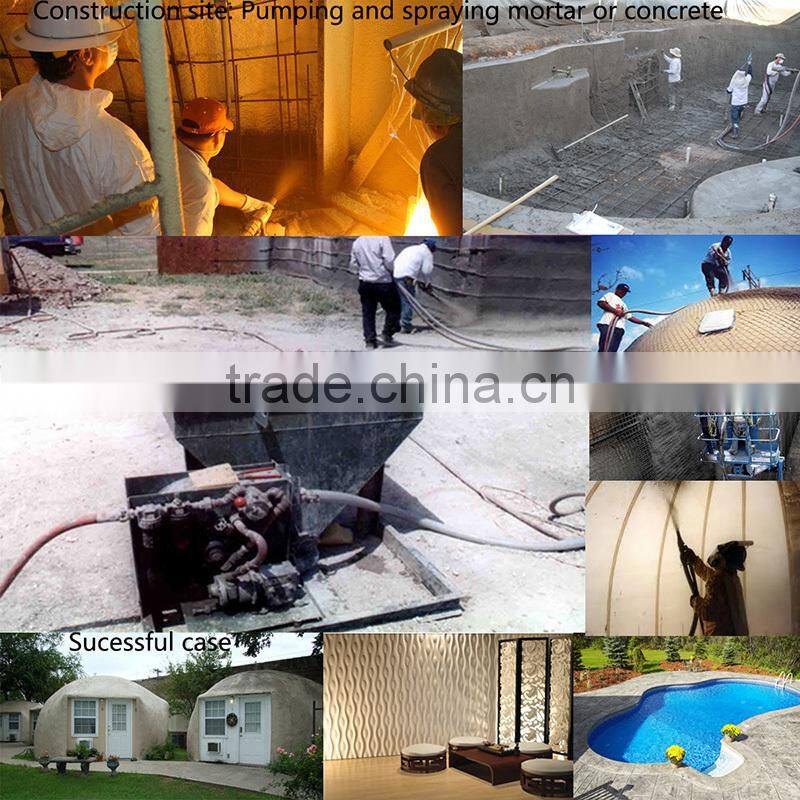

1. For pumping/grouting/spraying mortar/plaster
2. For pumping cellular light weight concrete
3. For pumping of wet normal concrete, acceptable max. aggregate size is 10mm
During-sale service of small shotcrete machine
1. Acceptance of the product
2. Assist client product construction scheme
After sale service
1. Spare parts will be delivered as you need.
2. Engineers will go to clients’ site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commissioning;
