ISO supplier LZ3 durable refractory and concrete spray gunite machine
ISO supplier LZ3 durable refractory and concrete spray gunite machine description:

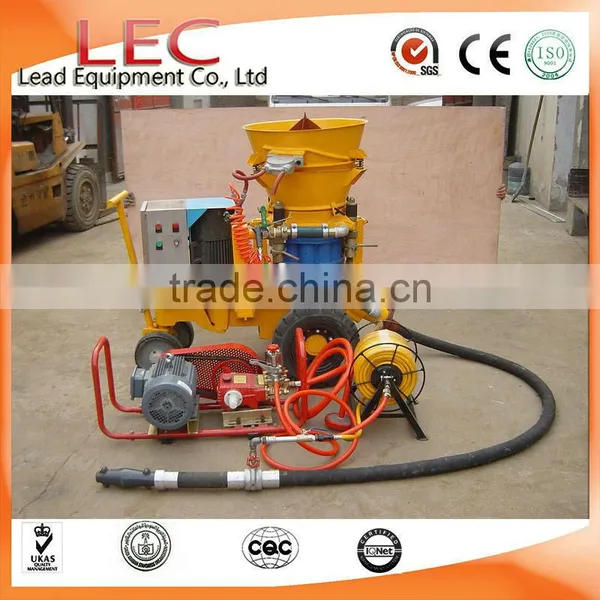

LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.
LZ-3 shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
Features:
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4.Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.
Durable spare parts:
Technical data:
Concrete spray used:
Output Capacity |
3m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
Max. Aggregate Size |
Φ10 mm |
Conveying Hose Inner Diameter |
Φ38/Φ50mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material |
5~6m3/min(180-215CFM) |
Material Charging Height |
0.9m |
Rotor Speed |
14r/min |
Motor Power |
3kW(4hp),IP55 |
Available Voltage |
220V,380V,440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) |
1.13×0.54×1.02m |
Net Weight |
430kg |
Refractory spray used:
Rated Output |
1-3m3 /h |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Dia.10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m3/min(180-215CFM |
Motor Power |
4kW |
Voltage |
3 phase,380V,50Hz |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |
Package:
Why choose us ?
1. We are China's leading gunite machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company:
Application:
LZ-3 shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
Application for concrete spray:
LZ3000E wet-mix concrete spraying machine video application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Application for refractory spray:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
