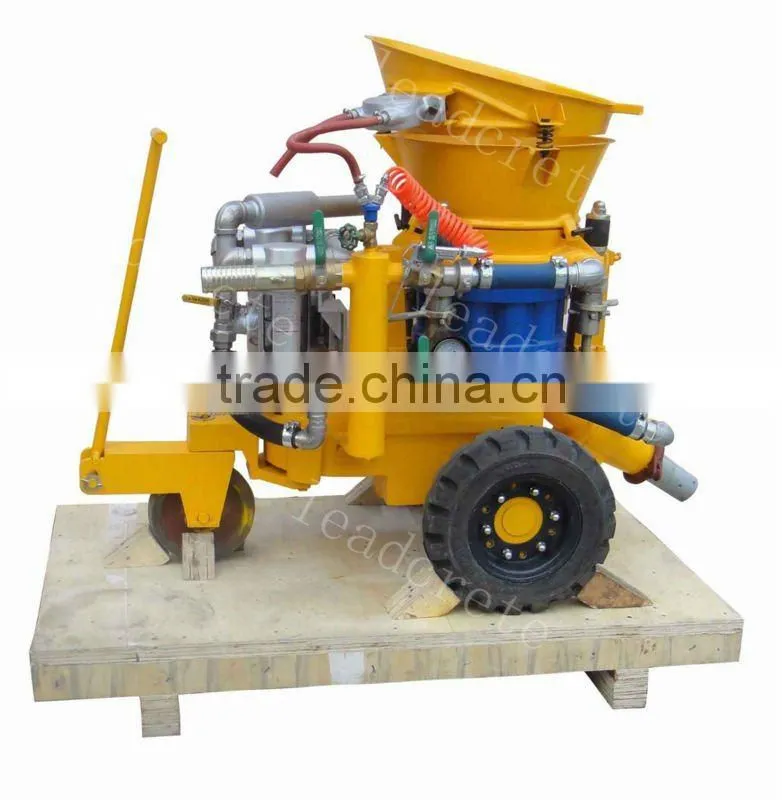

LZ-3D diesel engine type concrete spray gunite shotcrete equipment
1. LZ-3D diesel engine type concrete spray gunite shotcrete equipment description:
LZ-3 shotcrete equipment for the dry spraying process.LZ-3 shotcrete equipment can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
LZ-3 shotcrete equipment is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
2. LZ-3D diesel engine type concrete spray gunite shotcrete equipment technical parameters:
Rated Output |
2-3m 3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤ 1: 3~5 |
Max. Aggregate Size |
Φ 10 mm |
Conveying Hose Inner Diameter |
38/51mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m 3 /min(180-215CFM) |
Diesel Engine |
10hp,2200rpm |
Diesel Engine Starting |
Electric start |
Clutch Type in Diesel Engine |
Automatic Clutch |
Material Charging Height |
0.9m |
Rotor Speed |
9-13r/min |
Overall Dimension(L× W× H) |
1.8× 0.8× 1.2m |
Net Weight |
480kg |
Package:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Other type shotcrete equipment:
Application:
Why choose us ?
1. We are China's leading shotcrete equipment manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certifications of our company
FAQ:
1. Q: Can we have other drive mode ?
A: yes. we also supply air motor type, electric motor type.
2. Q: Can we choose skid or rail-wheel type?
A: Yes. we can make it as per your need.
