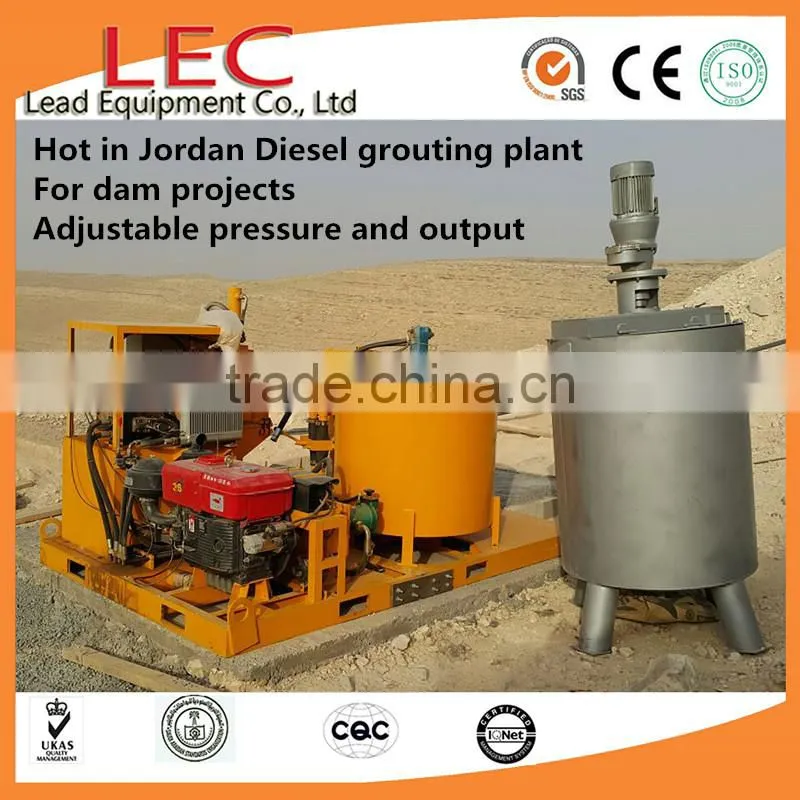

Backfill grout specialized construction machine High Pressure cement grout pump
Backfill grout specialized machine High Pressure cement grout pump
Description of grout pump:

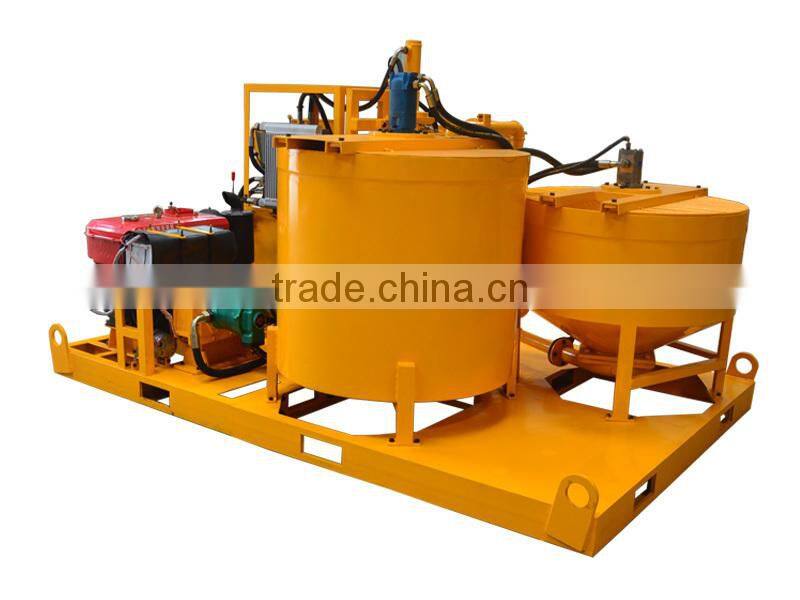

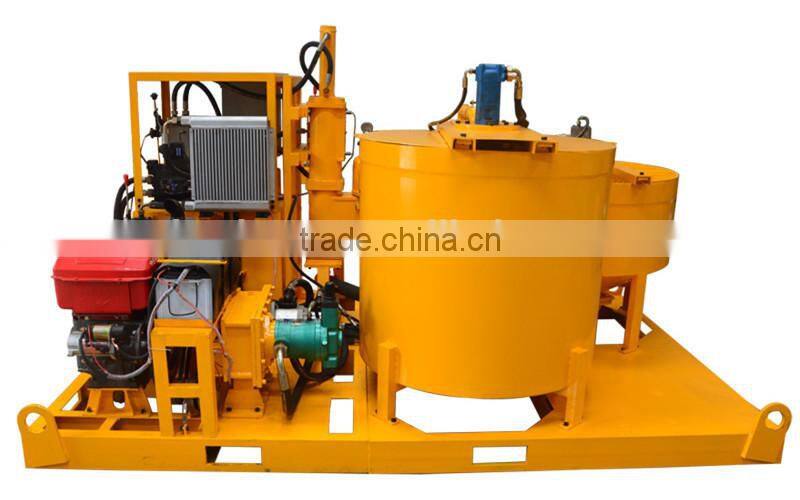

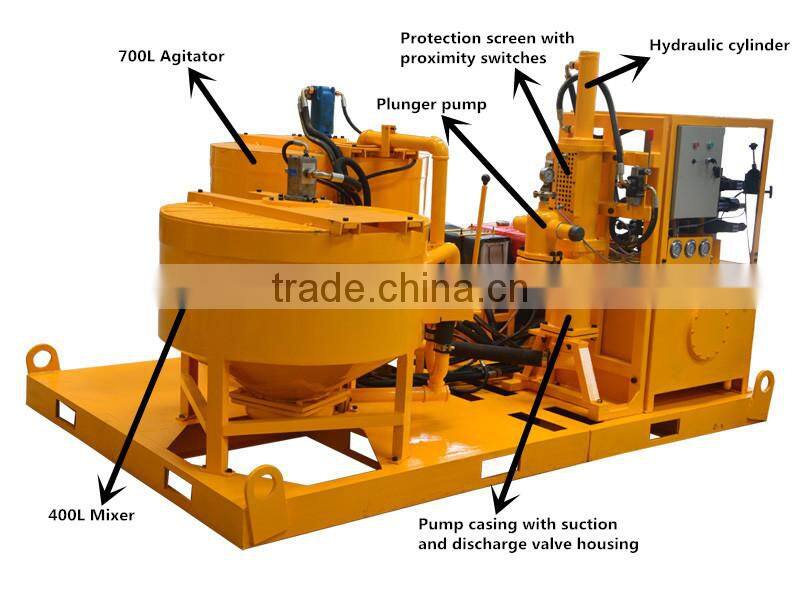

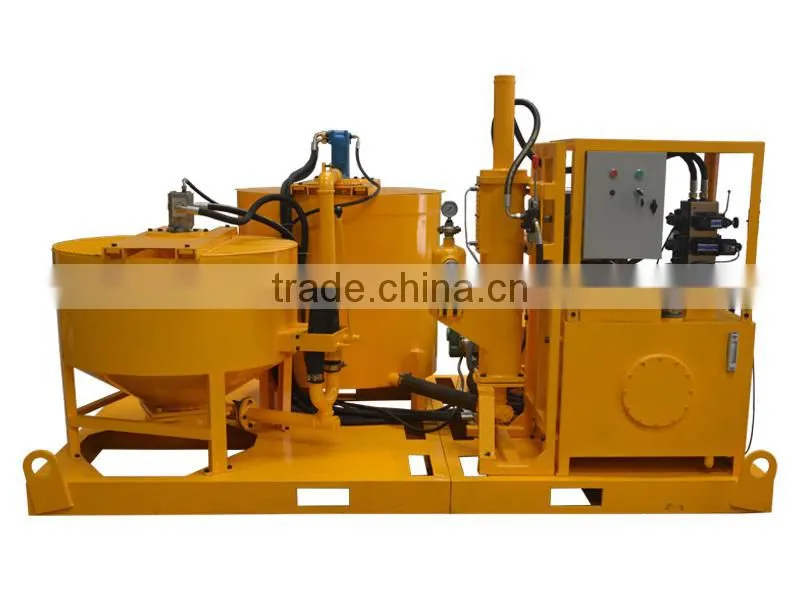

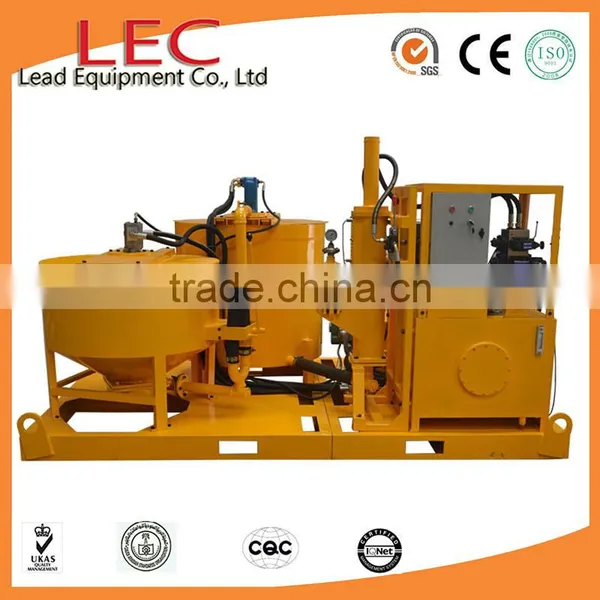

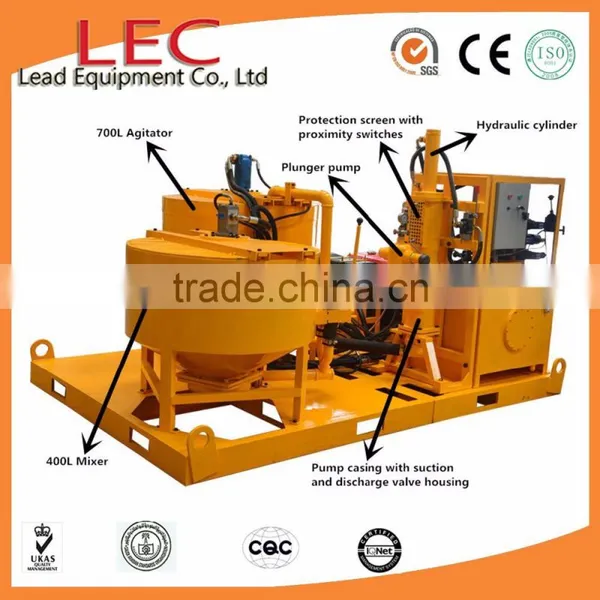

The LGP400/700/100PL-D grout station is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.
Features of grout pump:
- Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;
- Have low pressure and high pressure, stepless speed regulation;

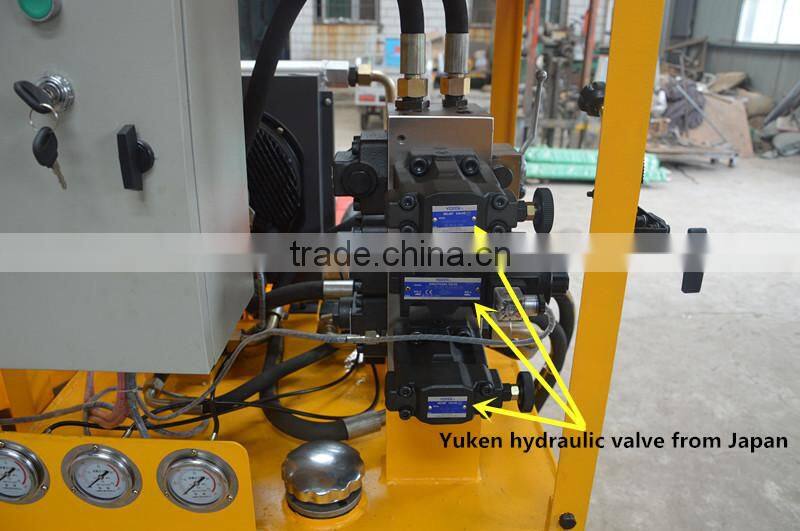

- Yuken relief valve and directional valve for hydraulic system of grout pump;

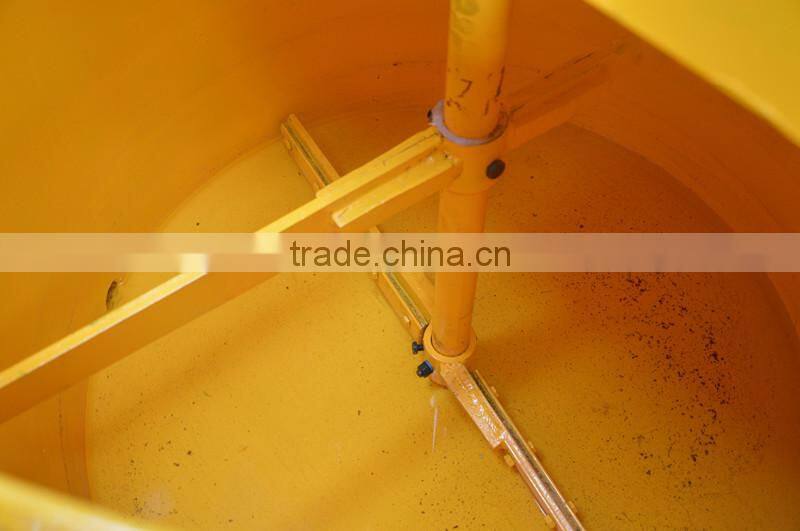

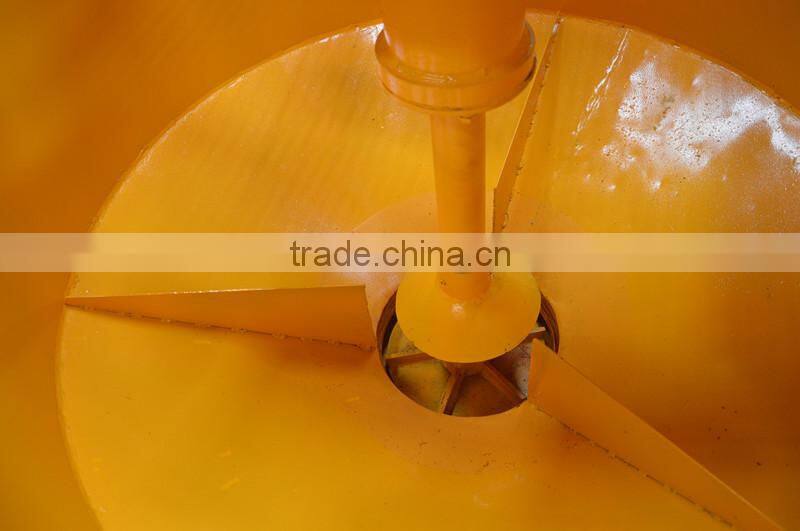

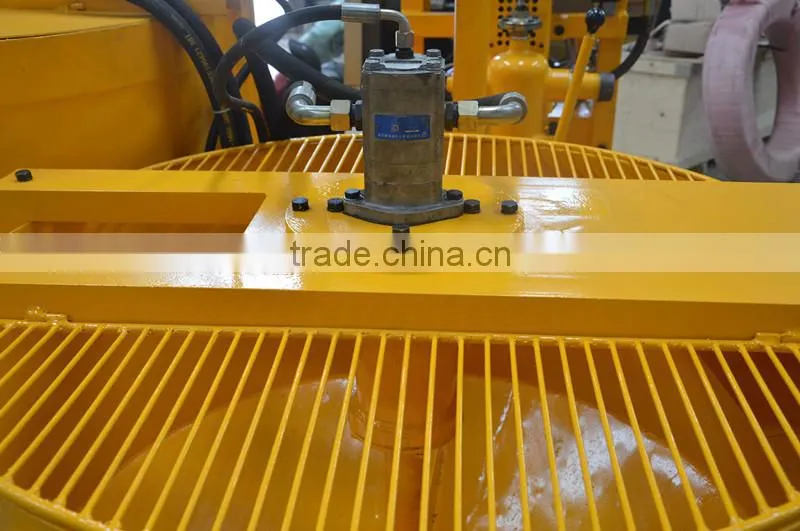

- Butterfly valve of mixer and agitator;
- Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

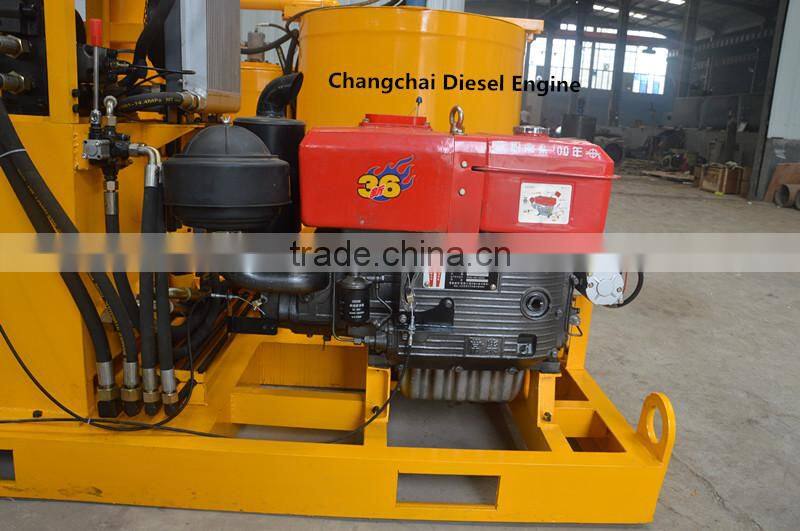

- Full hydraulic drive, diesel engine.
- Operation and maintenance are simple;
- With ISO, CE certificate.
Type |
LGP400/700/100PL-D Grout Station |
Diesel engine |
25kw/36HP |
Rotating speed of engine |
2200r/min |
Dimensions |
2900*1900*1750mm |
Weight |
1900kg |
Mixer | |
Capacity |
400L |
W/C ratio |
0.5-1 |
Rated Rev. |
1500rpm |
Agitator | |
Volume |
700L |
Rated Rev. |
36rpm |
Pump | |
Type |
Hydraulic Plunger pump |
Pressure and Output |
25 Bar (low pressure) 100L/min |
50 Bar (high pressure) 40L/min | |
Applications of grout pump:
- Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
- Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
- Construction - pavement under sealing, slab jacking and slab raising
- Marine - underwater foundations, piers, breakers, shoreline foundations
- Mining - tunnel lining, contact grouting, shaft waterproofing
- Utilities - encasements, waterproofing, slope line grouting
- Geotechnical - deep well casing, monitor wells, well sealing and abandonment
Plywood case for package of grout pump:

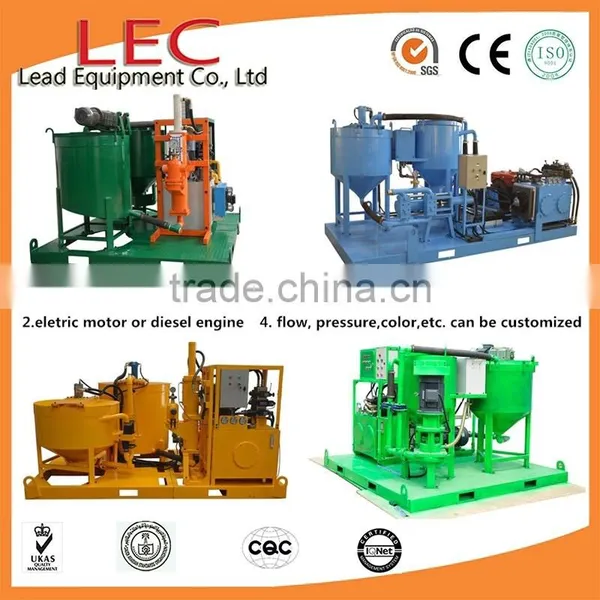

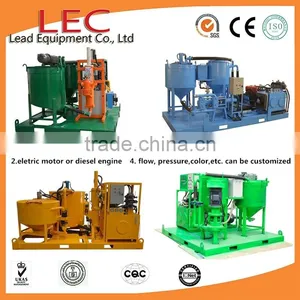

We also can supply other grouting pump, please click below photo for check:
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
