LGH-H China work plant CE Piston hydraulic chemical electric grout pump

FOB Price

USD $4,500 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Shanghai Qingdao Port or other
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	LEC
Model Number	LGH-H electric grout pump	Theory	Reciprocating Pump
Structure	Piston Pump	Usage	Other, grouting
Power	Other, Hydraulic, 11kw;15kw	Standard or Nonstandard	Nonstandard
Fuel	Other, electric motor	Pressure	Other, High Pressure, 0-10Mpa
Application	Other, grouting

Product Description

LGH-H China work plant CE Piston hydraulic chemical electric grout pump

Product Description

LGH-H series hydraulic electric grout pump is suitable for grouting pulgging project of high pressure and large displacement.This hydraulic grout pump transmits pressure signals by working medium(slurry and hydraulic oil)to form closed-loop automatic control function,therefore the hydraulic grout pump is simple in structure,can regulate timely and accurately,and has no overpressure problem.This electric grout pump can adjust its output and working pressure by continuously variable adjustment,grout injection pump can grout simple-liquid and chemical grout.

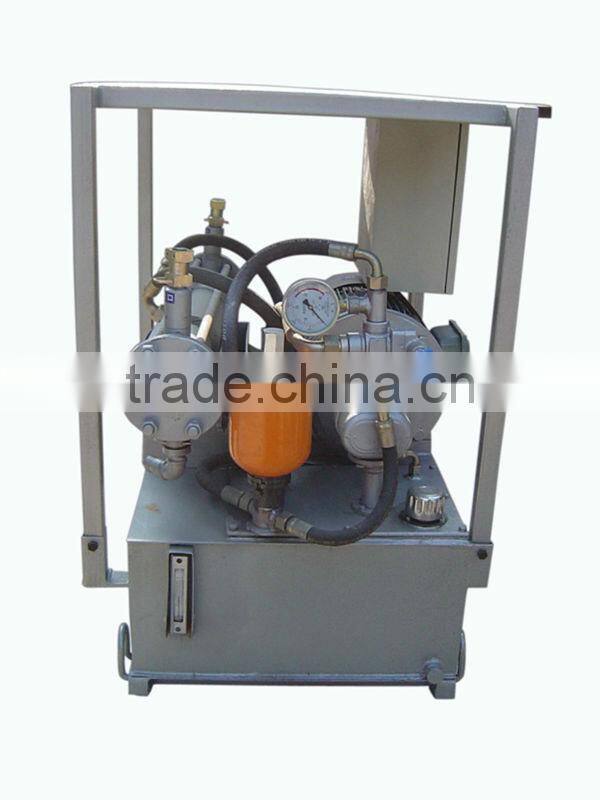

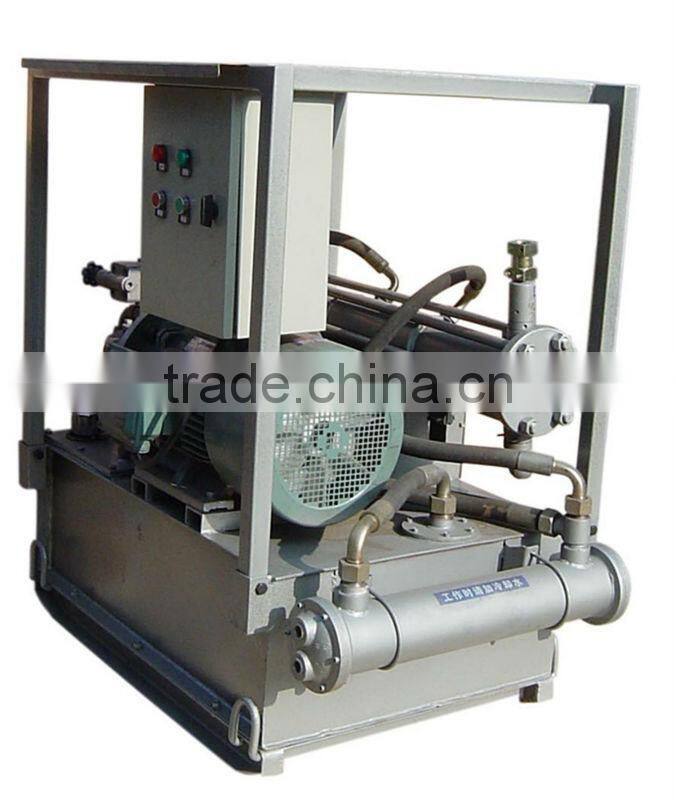

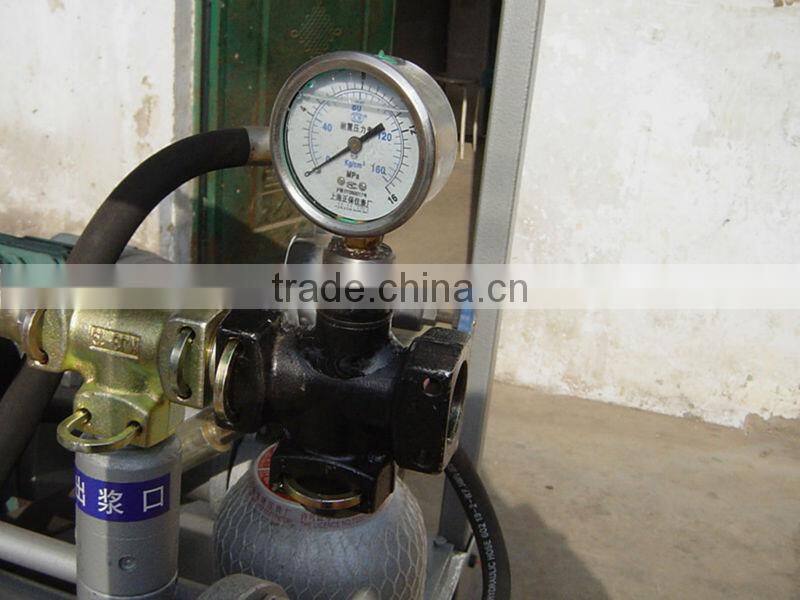

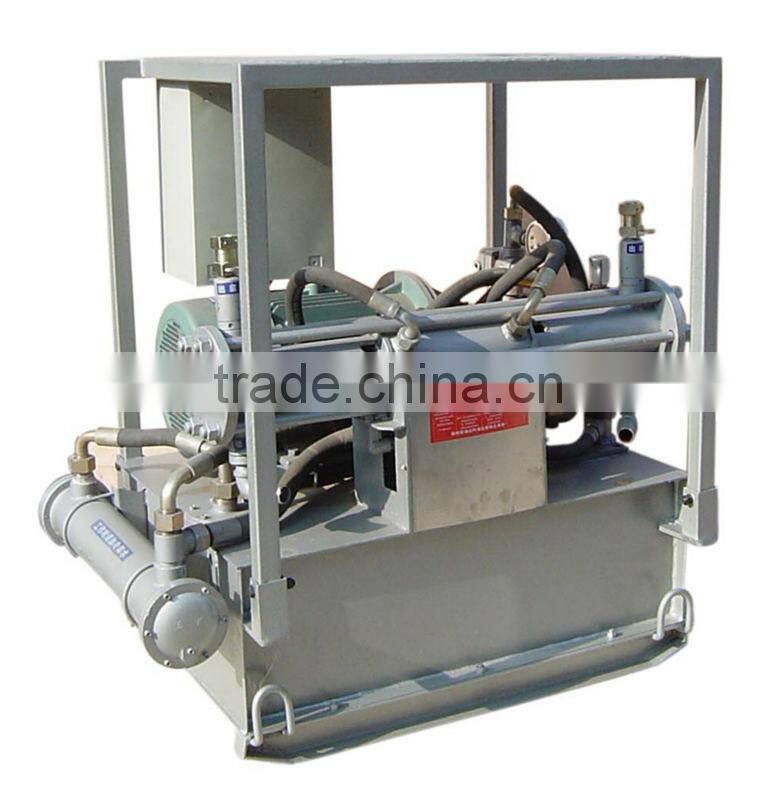

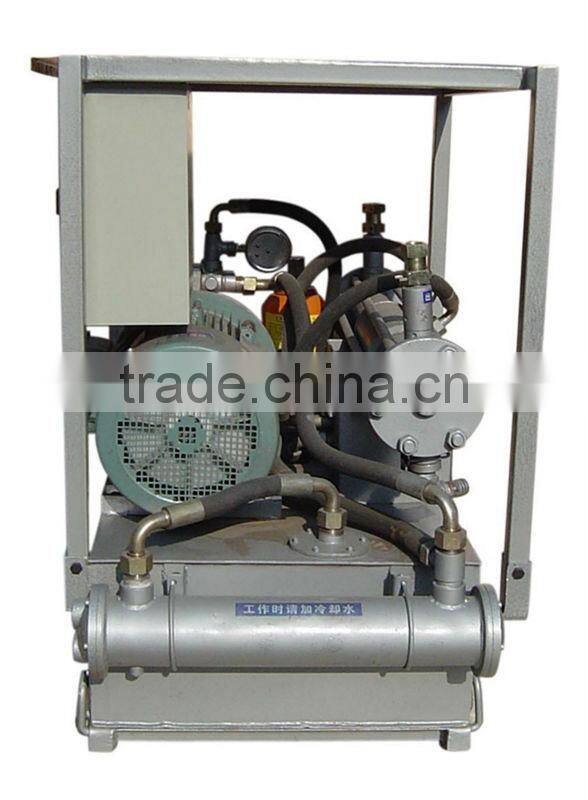

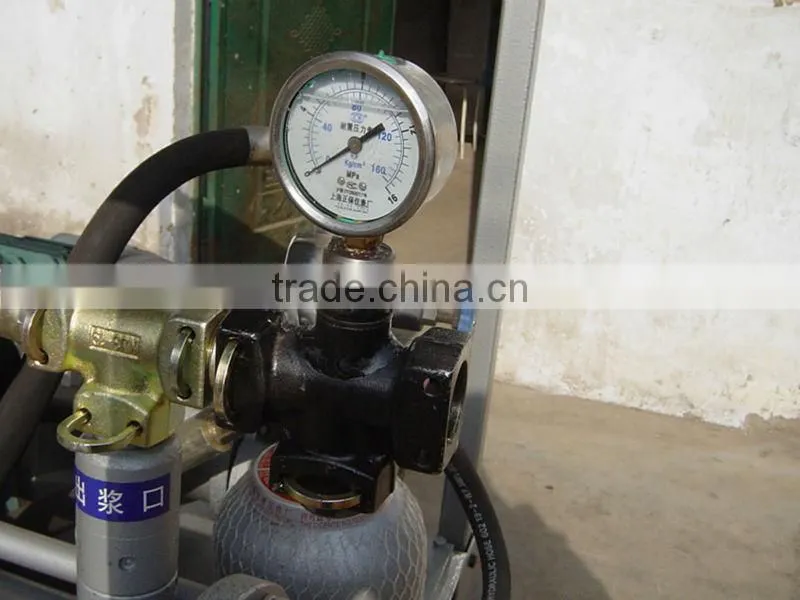

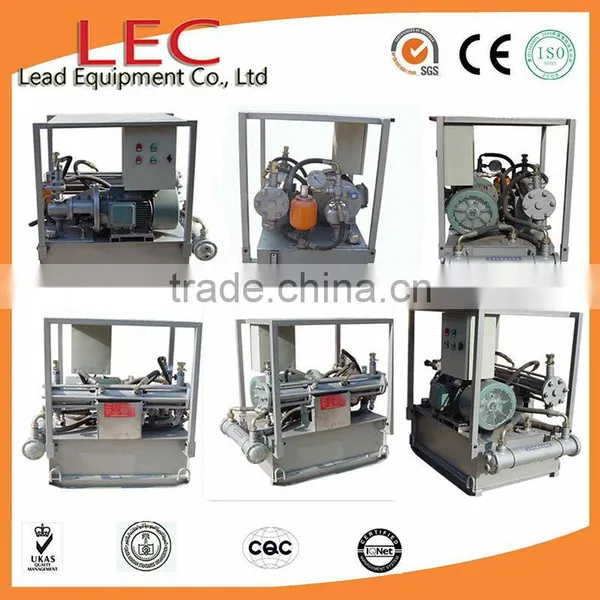

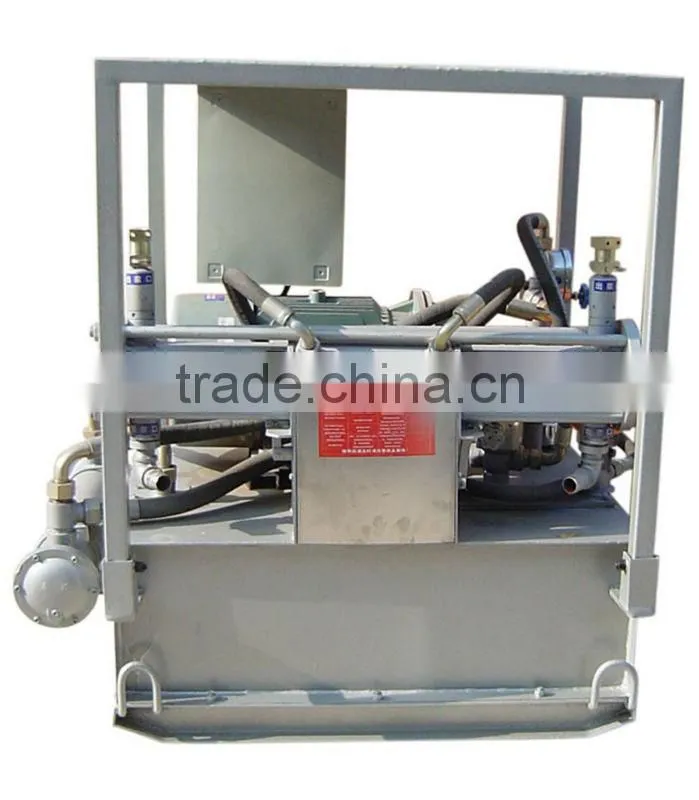

Detailed Images

Feature of electric grouting pump:

1.ISO9001-2008&CE

2.Hydraulic grout injection pump

3.Dual cylinders and single action hydraulic grouting pump

4.Operation and maintenance are simple

Technical data

Technical Sheet of electric grouting pump:

Single slurry grout pump
Power(KW)	Overall Dimension	Weight	Aggregate	Pump Slurry Ratio	Hydraulic oil tank
11, 15	1.0×1.0×0.98m	420(kg)	≤Φ3mm	0.5:1~1:1(W/C)	100L
22, 30	1.2×1.2×1.1m	480(kg)	≤Φ3mm	0.5:1~1:1(W/C)	150L
Power(KW)	Model	Output(L/Min)		Pressure(Mpa)
11	LGH110/4-11H	≤110		≤4
	LGH80/6-11H	≤80		≤6
	LGH50/7-11H	≤50		≤7
15	LGH120/6-15H	≤120		≤6
	LGH80/8-15H	≤80		≤8
	LGH60/10-15H	≤60		≤10
	LGH50/15-15H	≤50		≤15
22	LGH110/10-22H	≤110		≤10
	LGH80/13-22H	≤80		≤13
	LGH60/18-22H	≤60		≤18
	LGH50/23-22H	≤50		≤23
	LGH25/40-22H	≤25		≤40
30	LGH120/12-30H	≤120		≤12
	LGH60/20-30H	≤60		≤25
	LGH35/45-30H	≤35		≤45

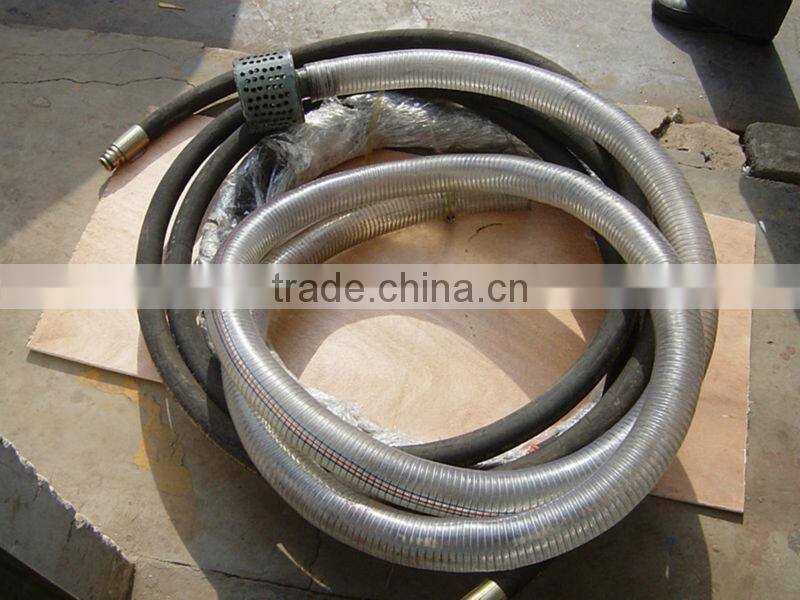

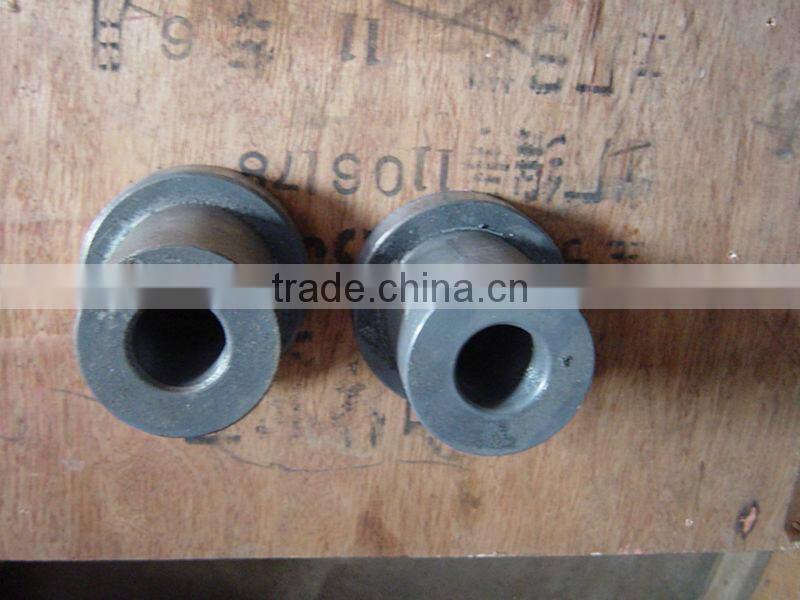

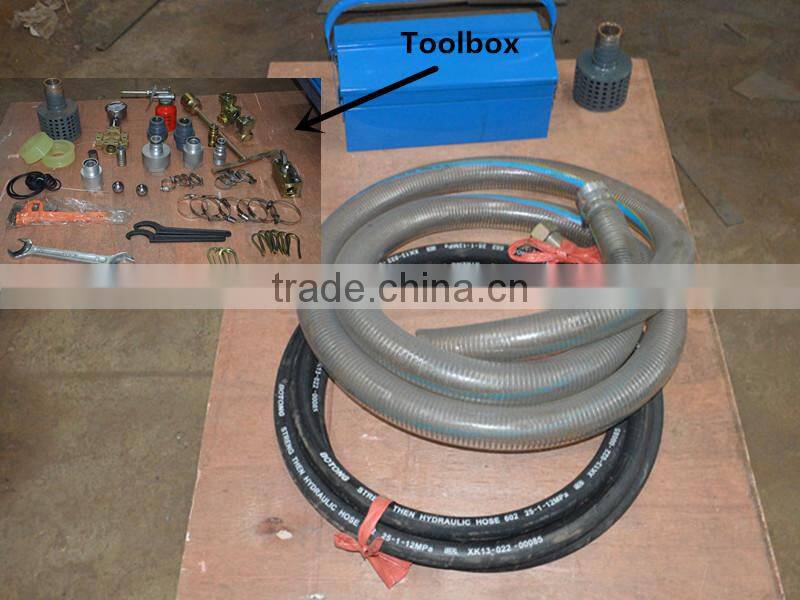

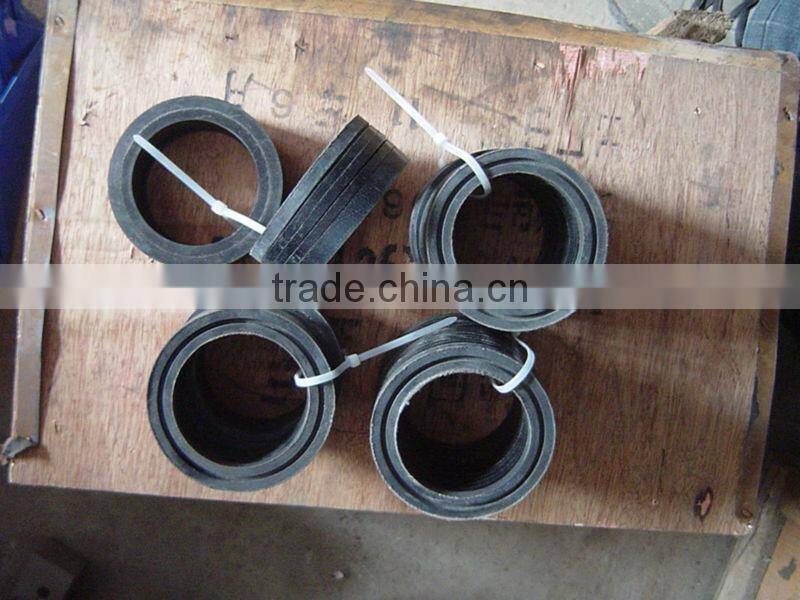

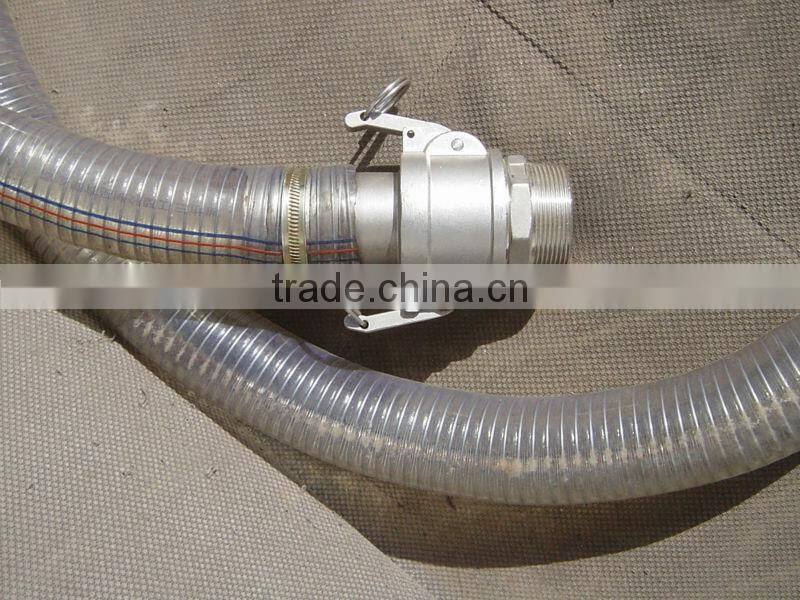

Accessories	Suction hose,filter,delivery hose,junction device,tools,sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.

Accessories

Application

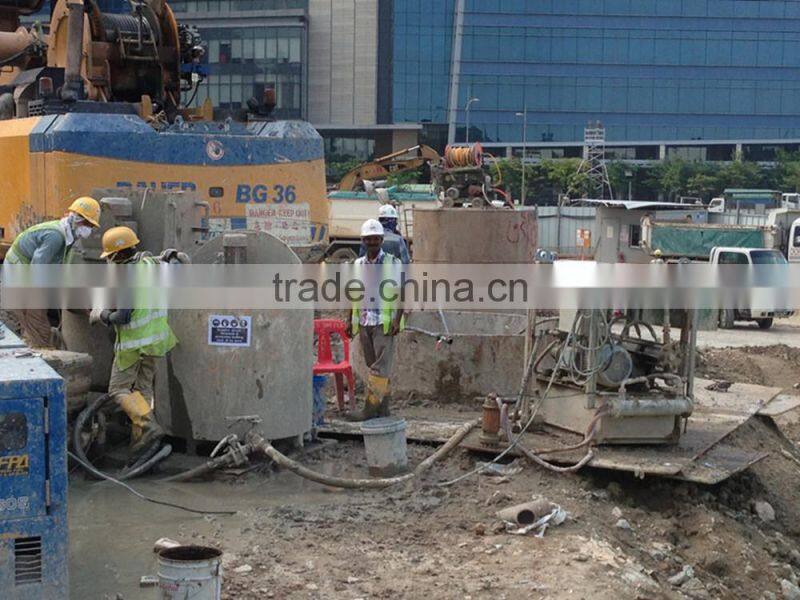

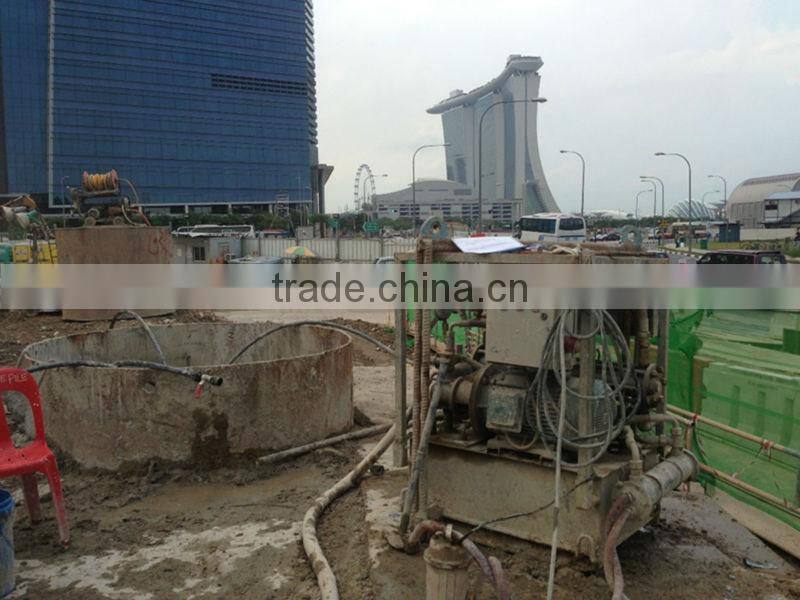

Application photo of electric grout pump in Singapore:

Certifications

FAQ

We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:

1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?

2. what is the output and pressure of pump?

3. what is water cement ratio?

4. which engine do you prefer? electric motor or diesel engine?

if you want to know more about our grouting equipment, please feel free to contact with me.
