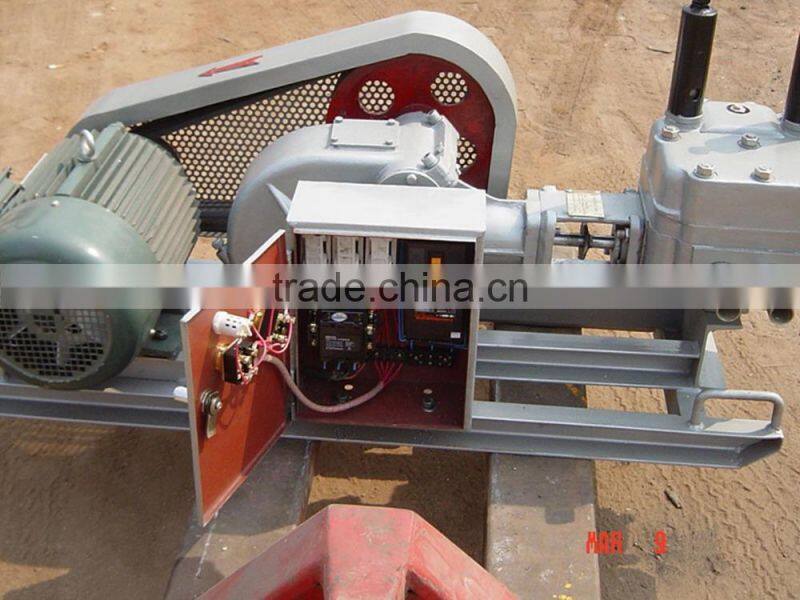

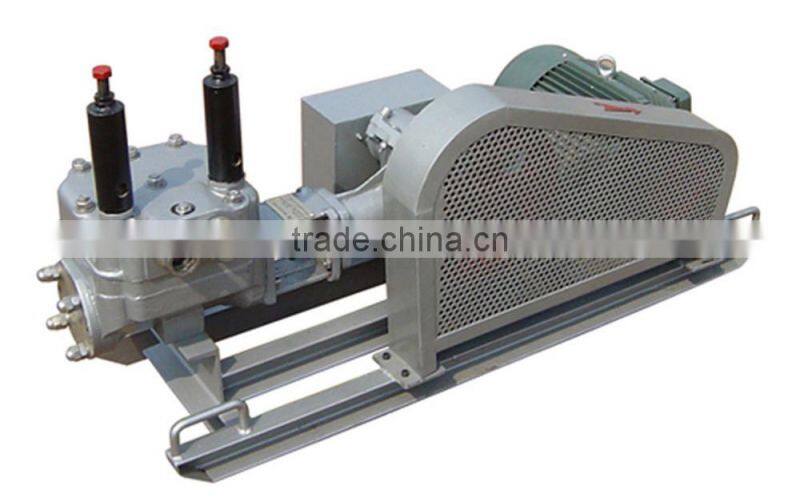

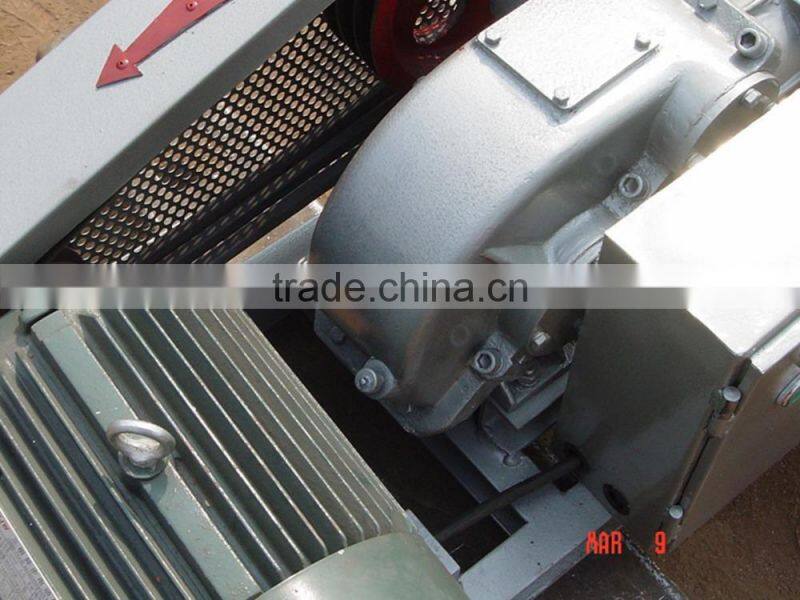

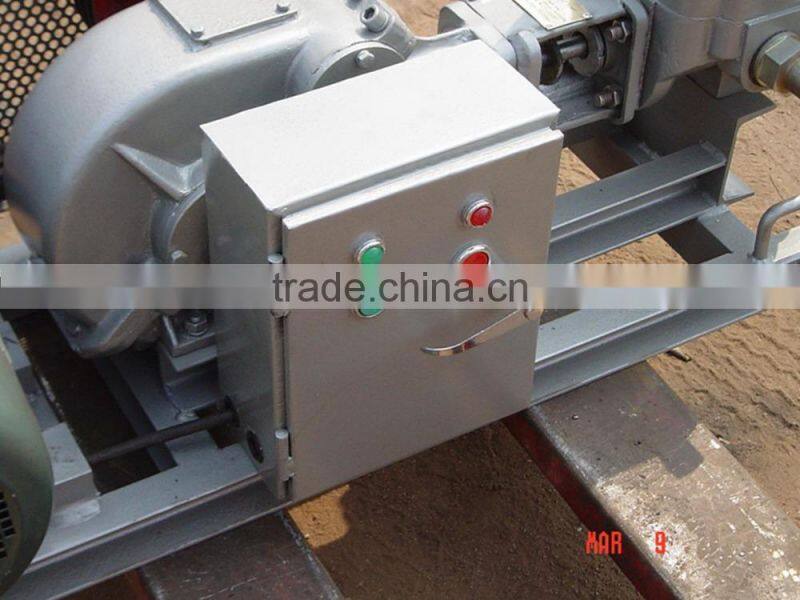

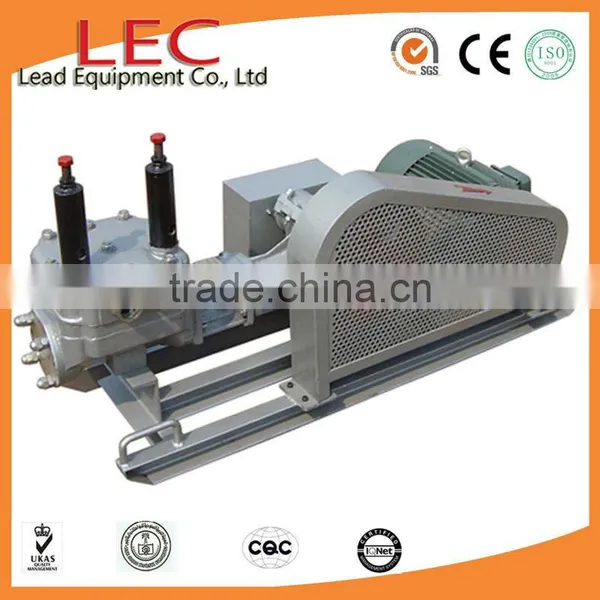

LGD60/40 China manufacturer medium pressure electric cement grouting pump machine
Our medium pressure cement grouting pump machine provide widely range grouting pressure selection as well as the dependability and durability required on your job site. The grouting pumps are ideal for grouting-process in underground and civil applications.
Feature of medium pressure cement grouting pump machine
1.Dual-slurry grouting pump
2.Single piston with double-acting
3.Gear reducer
4.Ball valve
5.Compact size
6.Iron-casting pump house
Technical data of medium pressure cement grouting pump machine:
Specification: |
cement grouting pump |
Rated Output |
60L/min |
Rated Pressure |
4MPa(40bar/580psi) |
Cylinder Dia. |
75mm |
Piston Stroke |
85mm |
Stroke/Minute |
85/min |
Inlet diameter |
38mm |
Outlet diameter |
32mm |
Power unit |
5.5KW(Electric) 10hp(Diesel) |
Transmission |
V-belt+gearbox |
Chassis |
Skid |
Weight |
210kg |
Overall Dimensions |
1280x485x645mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | |
A complete set of LGD60/40 medium pressure cement grouting pump machine:
No. |
Description |
Qty. |
Unit |
1 |
LGD60/40 Cement grouting pump machine |
1 |
set |
2 |
Rubber piston |
2 |
piece |
3 |
Sucking hose ID38mm, L=2m |
1 |
pcs |
4 |
ID32 conveying hose,Length 10m |
1 |
pcs |
5 |
Accessorial tools |
1 |
set |
6 |
Seal parts kit |
1 |
set |
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
