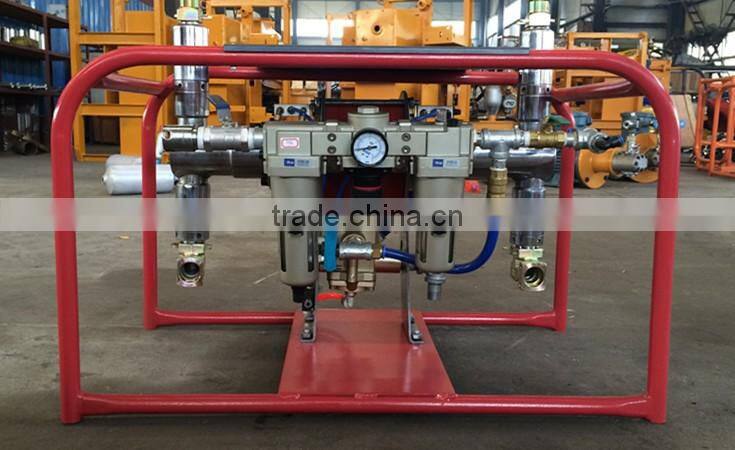

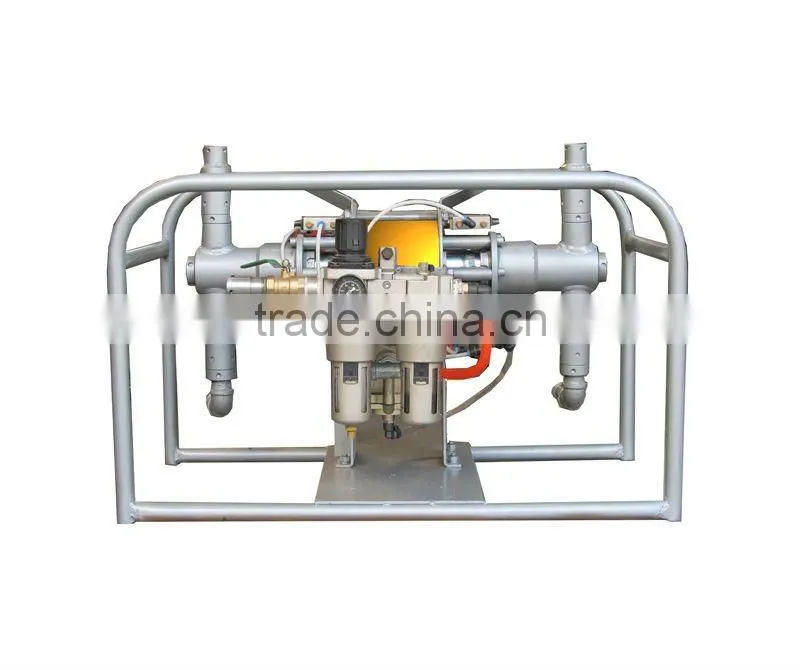

2LGP series CE and ISO portable pneumatic pressure cement grouting machine
2LGP series portable pneumatic grout machine is dirven by compressed air,thus this pump can safely use in the large water drenching and high gas/firedamp places.It can be blocked for a long time and has no heating problem.This pump transmits pressure signals by working medium(slurry and compressed air) to form closed-loop automatic control function,therefore the pump is simple in structure,can regulate timely and accurately, and has no overpressure problem.The shift device of this pump has feature with air pressure automatic location,thus this pump works with safety and reliability.This pump has the function of automatic regulating output according to the pre-seted grouting final pressure.The pump can grout simple-liquid,dual-liquid and chemical grout.
Features:
1.ISO 9001-2008&CE
2.Driven by compressed air
3.Shift device has feature with air pressure automatic location.
4.Can grout cement slurry.
5.Can be used in the workplaces of inflammable, explosive and humidity changes greatly.
Technical sheet:
| 0.5m³,0.7m³ portable pneumatic grout pump | ||||
| air consumption(m³/min) | air pressure(MPa) | overall dimension(m) | weight(kg) | slurry and Sodium silicate ratio |
| 0.5 | 0.2-0.63 | 0.6×0.3×0.4 | 18 | 1:1 |
| 0.7 | 0.8×0.4×0.7 | 41 | 1:1-1:0.75 | |
| Accessories | Suction hose,filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge. | |||
| air consumption(m³/min) | Model | Output(L/min) | Pressure (MPa) | |
| 0.5m³ (portable) | 2LGP10/5 | ≤10 | ≤ 5 | |
| 0.7m³ (portable) | 2LGP50/4 | ≤50 | ≤4 | |
| 2LGP24/10 | ≤24 | ≤10 | ||

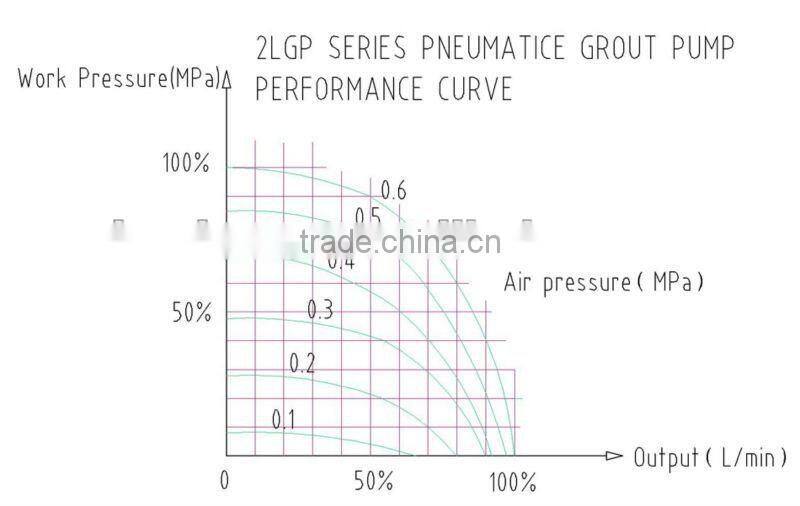

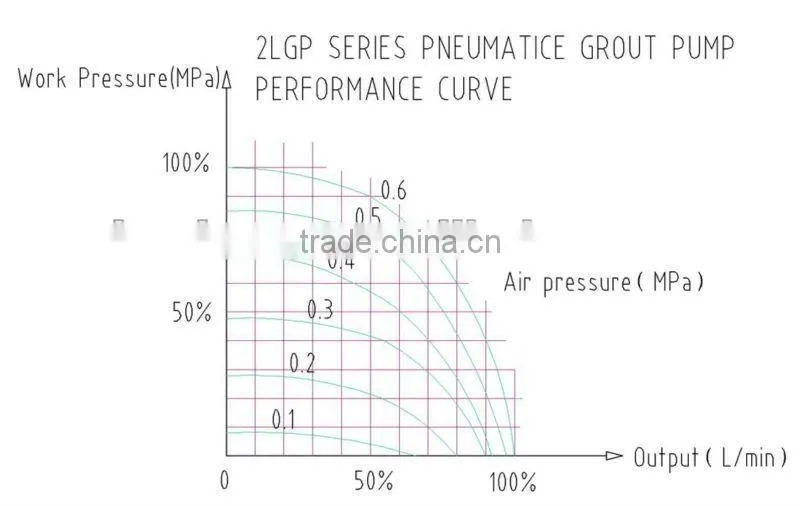

Performance Curve:

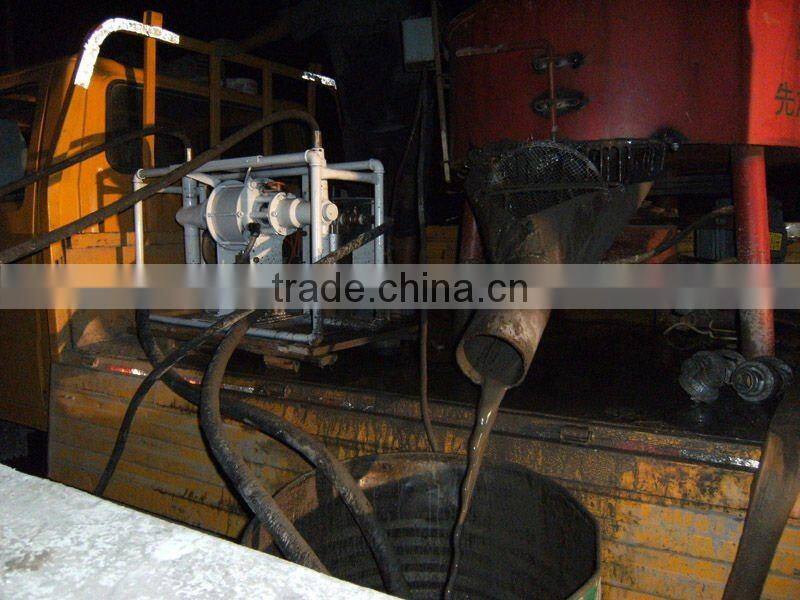

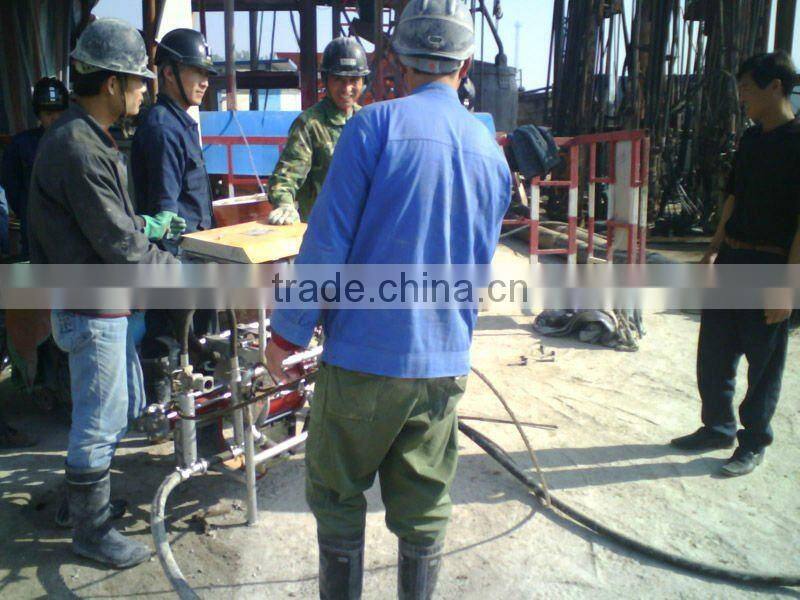

Applications of pneumatic grouting machine:
2LGP series pneumatic grouting pump is used in ore mining,tunnel,bam,construction and bridge to grout slurry,renovate roadbed of highway and railway, ruled out hidden troubles.

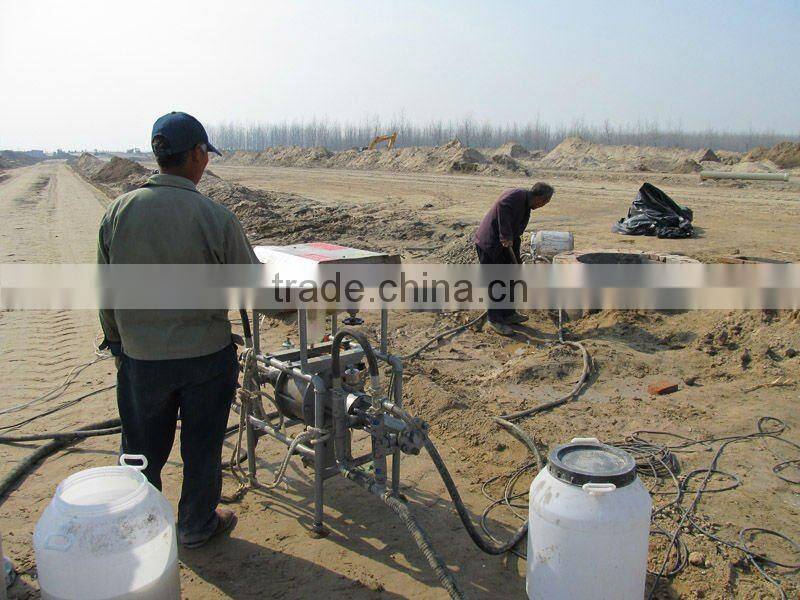

1.2LGP series pneumatic grout machine renovate roadbed of highway.

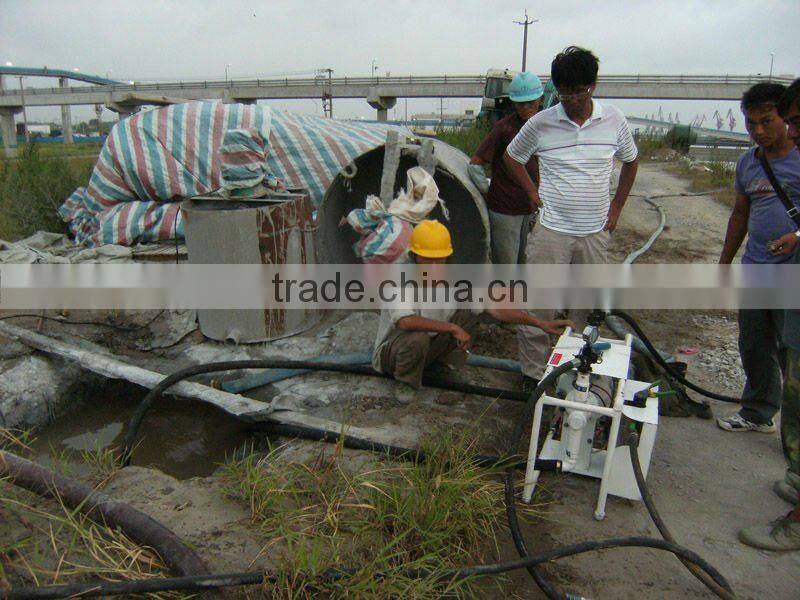

2.Renovate roadbed of bridge.
3.Yangtze river levee construction
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
