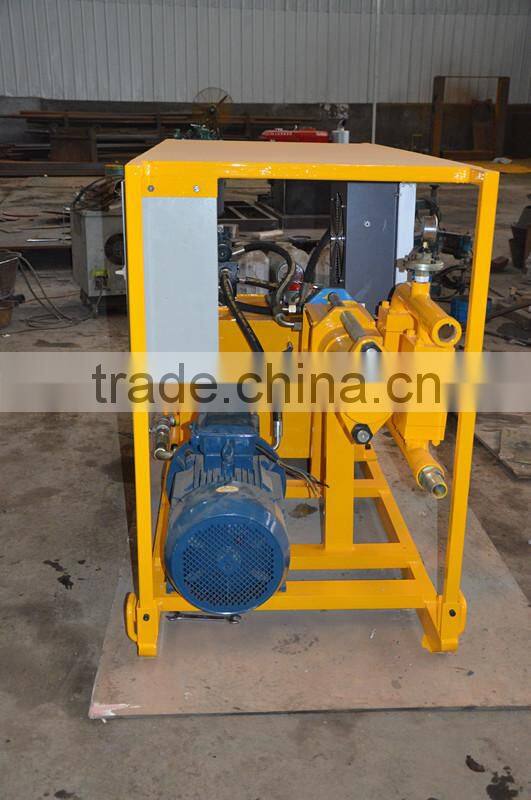

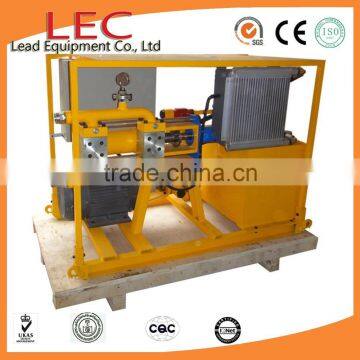

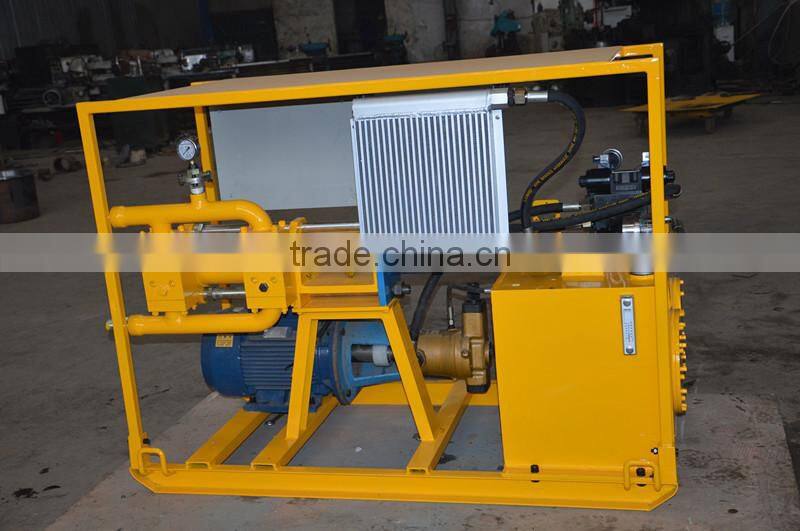

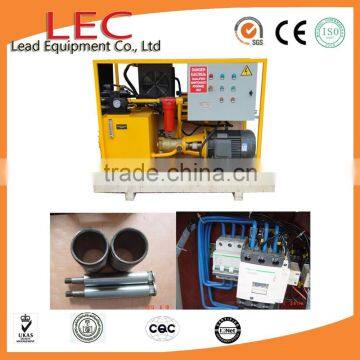

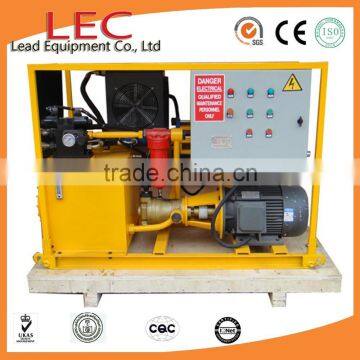

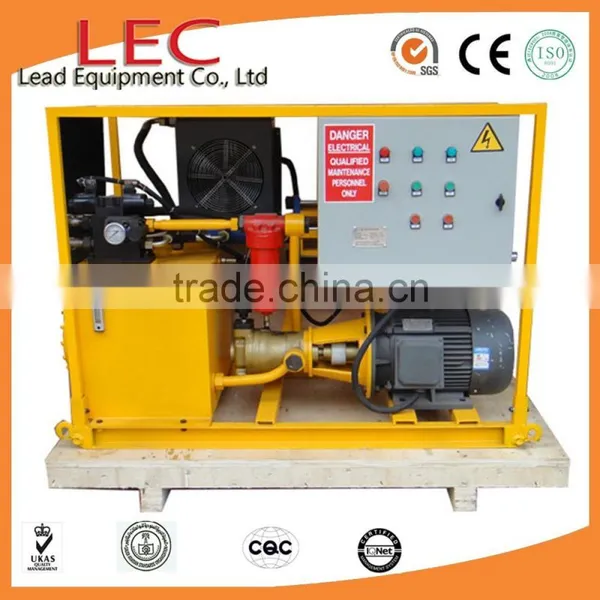

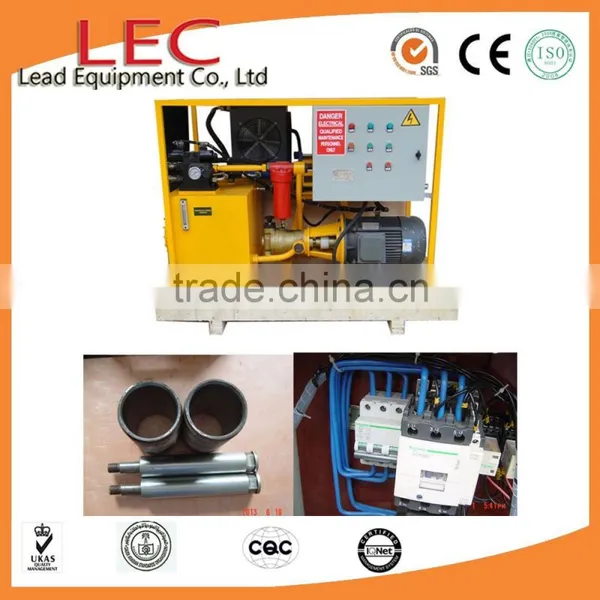

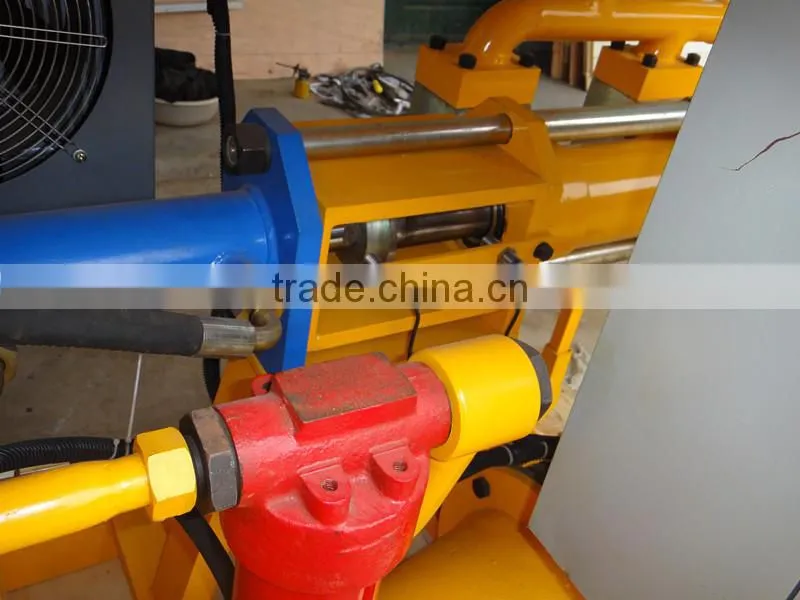

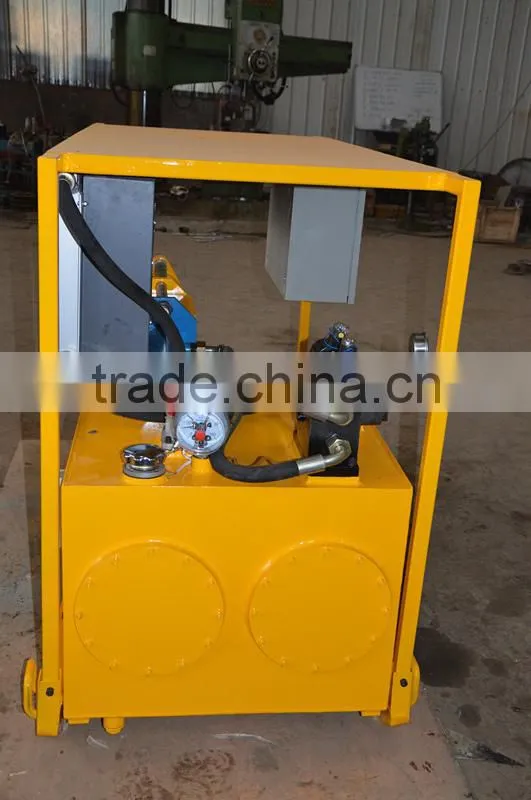

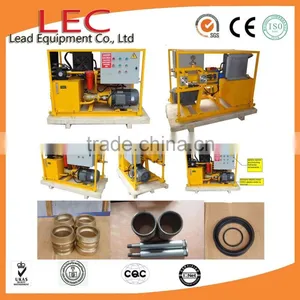

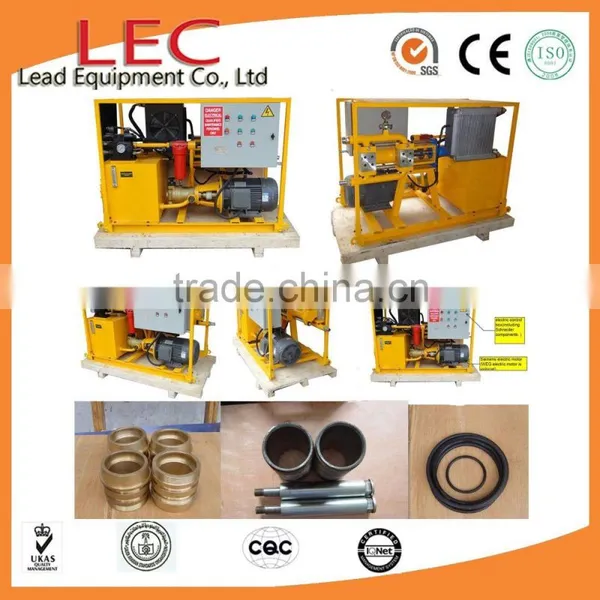

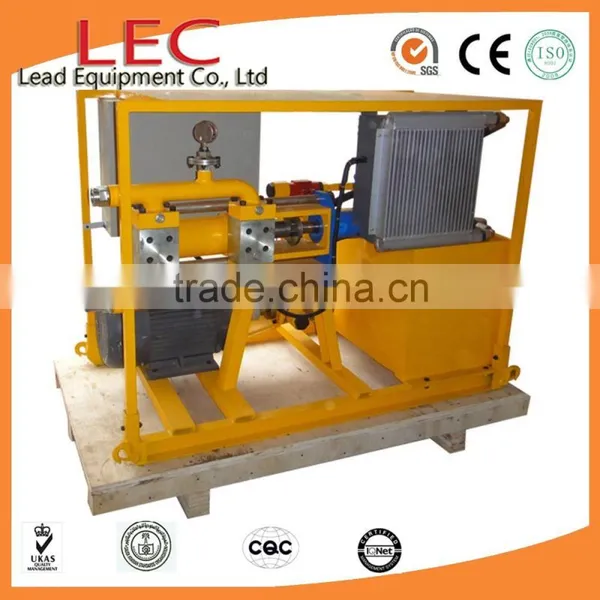

LGH70/90 100L per min hydraulic type high pressure cement grout injection pump
LGH70 and 90 hydraulic type high pressure grouting injection pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Feature of high pressure grout injection pump :
1.Single piston with double-acting.
2.Hydraulic drive
3.Compact structure
4.Ball valve
Technical data of high pressure grout injection pump :
Specification: |
|
|
Item |
LGH70 |
LGH90 |
Rated Output |
0-70 L/Min |
0-100 L/Min |
Rated Pressure |
10MPa(1450PSI) |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
110mm |
Stroke/Minute |
31 |
45 |
Inlet Dia. |
38mm |
38mm |
Outlet Dia. |
32mm |
32mm |
Power Unit |
7.5kW |
11kW |
Transmission |
Hydraulic drive |
Hydraulic drive |
Chassis |
Skid |
Skid |
Weight |
450Kg |
580Kg |
Overall Dimension |
1505x770x1110mm |
1505x770x1110mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | ||
| A COMPLETE SET OF LGH90 grout injection pump | ||||
| No. | Description | Qty. | Unit | Remarks |
| 1 |
High Pressure Grouting Pump LGH90 main unit with cooling system |
1 | set |
11kw motor(Siemens or WEG) electric control(Schneider component) |
| 2 | Conveying Hose, ID38mm, 33ft.Length/ID38 | 1 | pc | |
| 3 | Yx seal ring d60 | 5 | pc | |
| 4 | O-ring 135x5.7 | 5 | pc | |
| 5 | Yx seal ring D110 | 5 | pc | |
| 6 | O-ring 100x5.3 | 5 | pc | |
| 7 | O-ring 31.5x3.55 | 5 | pc | |
| 8 | O-ring 71x5.3 | 5 | pc | |
| 9 | valve ball SR17.5 | 4 | pc | |
| 10 | O-ring 75x5.3 | 5 | pc | |
| 11 | O-ring 45x2.65 | 5 | pc | |
| 12 | Quick Coupling | 2 | pc | |
| 13 | Accessories and tools kit | 1 | set | |
In order to recommend you more suitable models, please let me know more about your requirement on grout injection pump:
1. what project will you do with grout pump?
2. what is output and pressure?
3. what is max.aggregate?
4. do you need grout mixer which is usually used with grout pump?
if yes, what is water cement ratio?

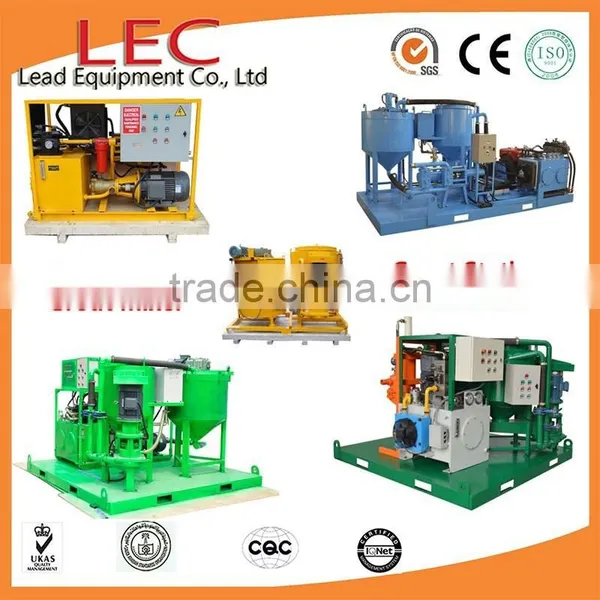

We also have other grouting equipment for your reference, please click below photos to check:
Plywood case for packge of grout pump
