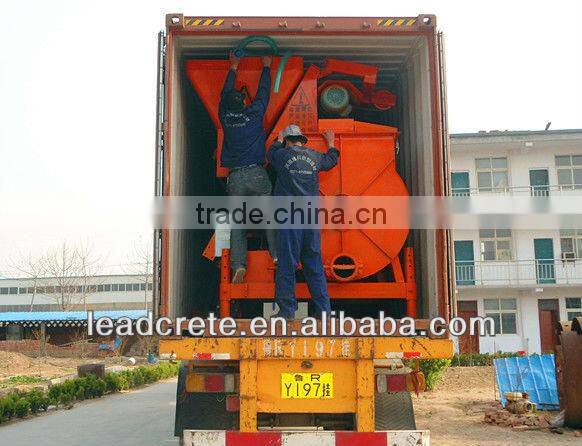

insulation foam concrete block making machine
Brief Instruction of Concrete Foam Machine:
Concrete foam machine is created by uniform distribution of air bubbles throughout the mass of concrete. Foam concrete is produced by mechanicalmixing of foam prepared in advance with concrete mixture, and not with the help of chemical reactions. Foam is prepared in special device: foam generator and after that mixing in foam concrete mixer, delivering by foam concrete pump.
Specifications:
1. movable type
2. ISO,CE
3. Warranty 1year
4. Used for light concrete block
Data of Concrete Foam Machine Mixer LD-2000 :
Model |
LD-2000 |
Production Capacity |
15-20 m3/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Data of Concrete Foam Machine Pump LD-30:
Model |
LD-30 |
Max.Output |
30 m3/h |
Max.Conveying Pressure |
8 MPa |
Max.Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max.Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |
Concrete Foam Machine's Features:
1. competitive price;
2. light weight;
3. heat preservation;
4. sound insulation;
5. fire proofing;
6. aseismatic;
7. high construction speed;
8. environmentally friendly.
Usage of Concrete Foam Machine:
1. Make light weight foam concrete blocks;
2. Precast wall panels;
3. Cast wall in construction site;
4. Roofing insulation and flooring insulation;
5. Gap filling;
6. Road base;
7. Leveling.
The specific production process of foam concrete machine:
1. Feeding and blend: The quantitative cement, foam agent, steady bubble enhancer is added intothe mixer, through feeding system will be quantitative strengthening agent, foaming agent, stabilizing bubble cement mixer with 30 seconds by dry blend.
2. Mixing: quantitative warm water be added into the mixer with 2 minutes by wet mixing; The quantitative foaming agent be added into the mixer with 8 to 15 seconds mixing.
3. Inject into the mold and foaming: this material be placed into the mould immediately to foaming with 3-5 minutes.
4. Preliminary maintenance: this process is done by several standing after injection moulding.
5. Demoulding: the foam concrete board can be demould is after initial set, which have the initialstrength.
6. Cutting: this foamed concrete board blank owning a certain intensity can be cut after demoulding, and the cutting specifications can be adjusted according to the need by the cutting blade.
7. Finish product maintenance: the curing time of foam concrete board should have no less than 7 days.
Our customer will get a one-stop service:
Pre-sales service: Customers are guided to choose the best applicable products and provided the technology-advanced, energy-saving and practical process. We are responsible for the local planning and design.
Middle-sales Service: Customers are welcome visit our factory for the spot simulation test and propose advices according to contract. We are pleasure to accept them.
After-sales service: Customers are available to get the technology support, including the installation, debugging and operation-training.
As an unique supplier with ISO 9001 and CE certificate in China, we have been exported to the USA, Canada, India, ,Malasia, Pakistan, Korea, Baharain, Nepal etc. What's more, they have received praise with good quality and excellent after-sale service.
