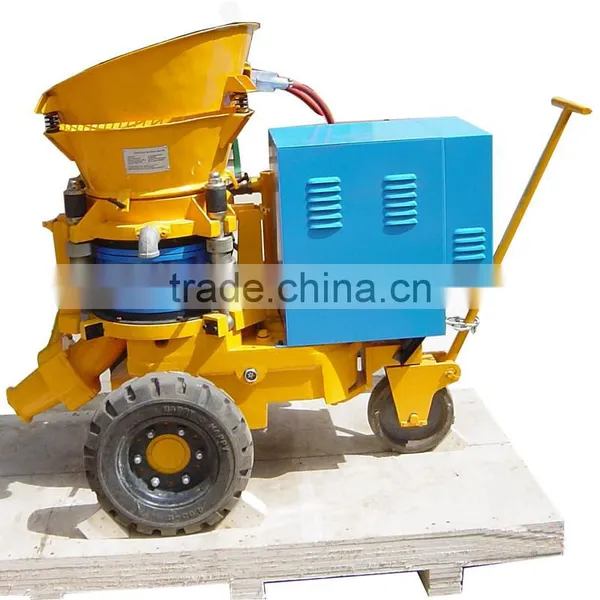

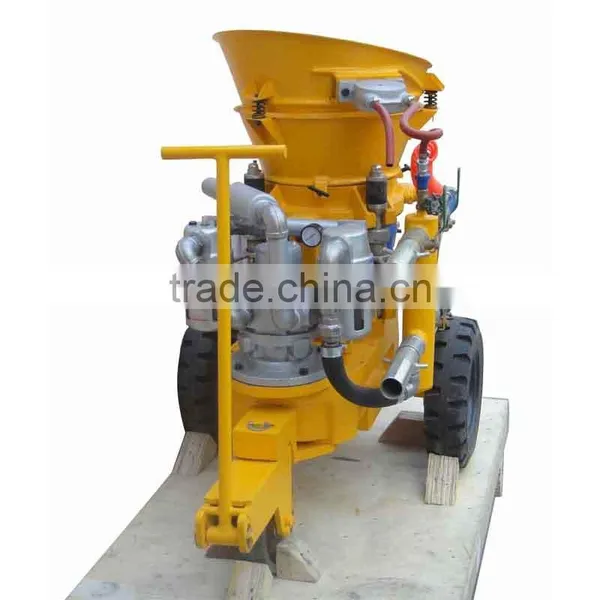

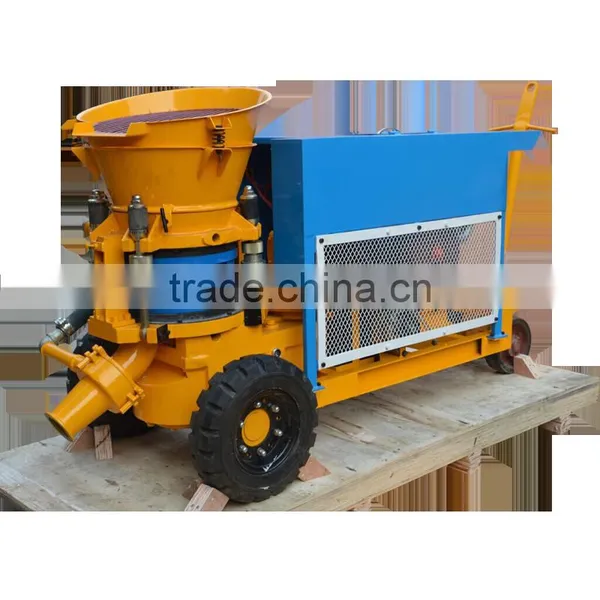

3m3/h refractory and concrete used electric small shotcrete machine
LZ3 refractory and concrete used electric small shotcrete machine description:
LZ-3 small shotcrete machine for the dry spraying process.
LZ-3 small shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.

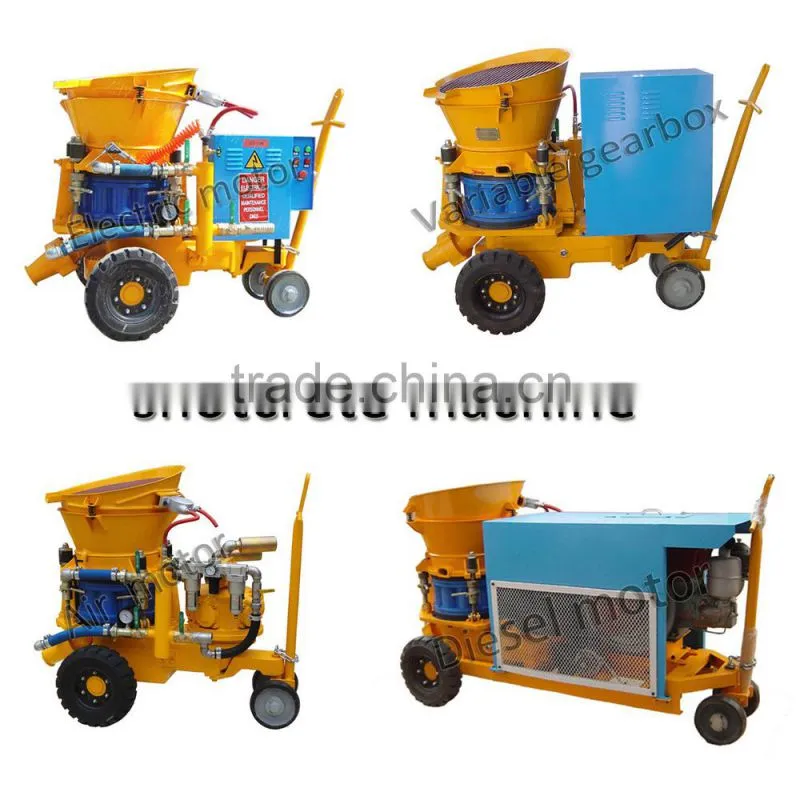

LZ-3 small shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): air motor or diesel drive combined skid or rail-wheel.

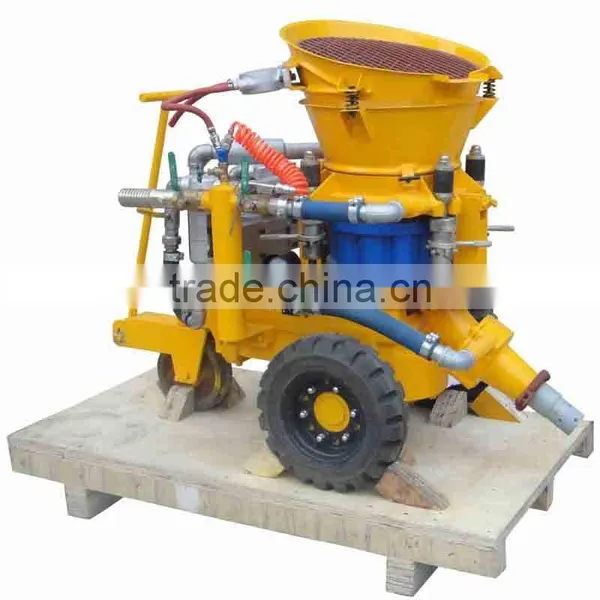

LZ3 refractory and concrete used electric small shotcrete machine
LZ3 refractory and concrete used small shotcrete machine technical parameters:
Electric Motor Driven:
Concrete used small shotcrete machine:
Output Capacity | 3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ38/Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Motor Power | 3kW(4hp),IP55 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg |
Refractory used small shotcrete machine:
Specification | |
Rated Output | 1-3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Max. Aggregate Size | Dia.10 mm |
Conveying Hose Inner Diameter | 38mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m3/min(180-215CFM |
Motor Power | 4kW |
Voltage | 3 phase,380V,50Hz |
Material Charging Height | 1.1m |
Rotor Speed | 13.2r/min |
Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
Weight | 430kg |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.

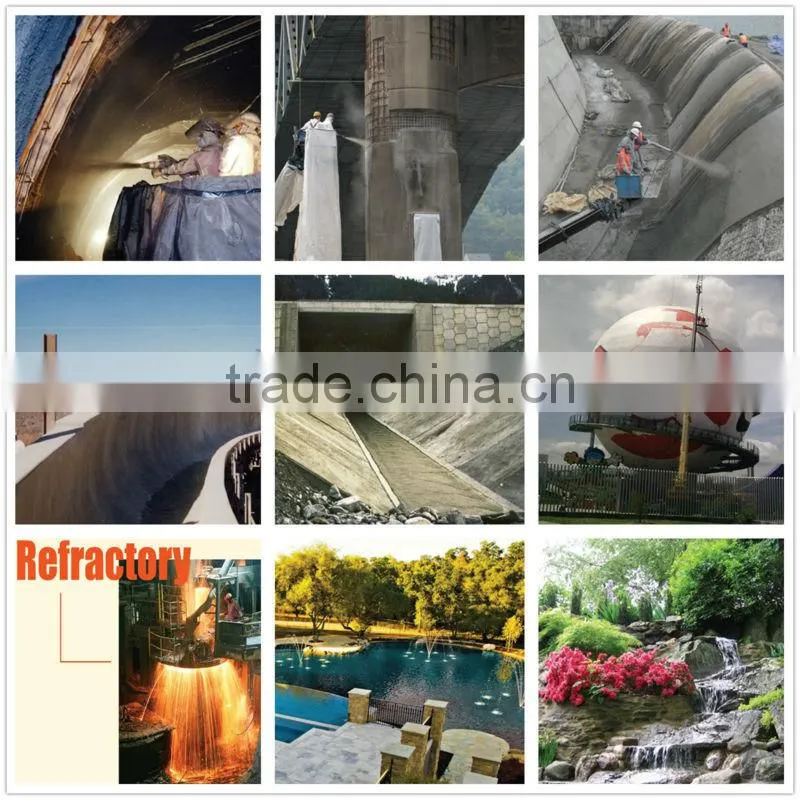

Application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

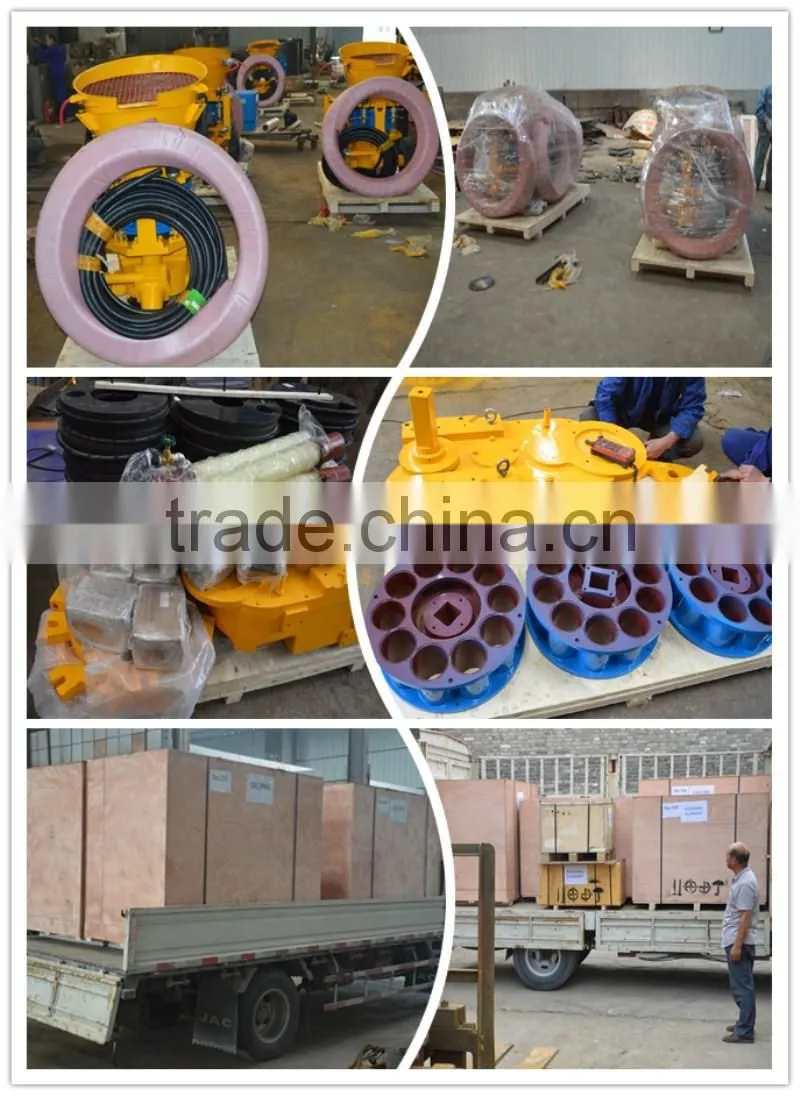

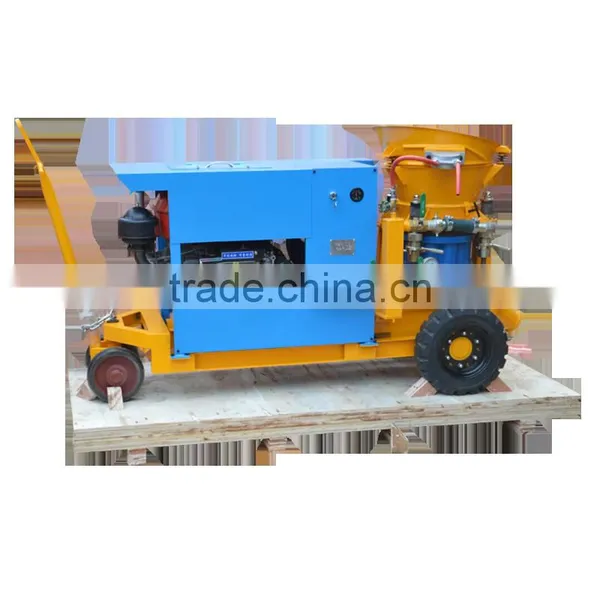

Package:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.

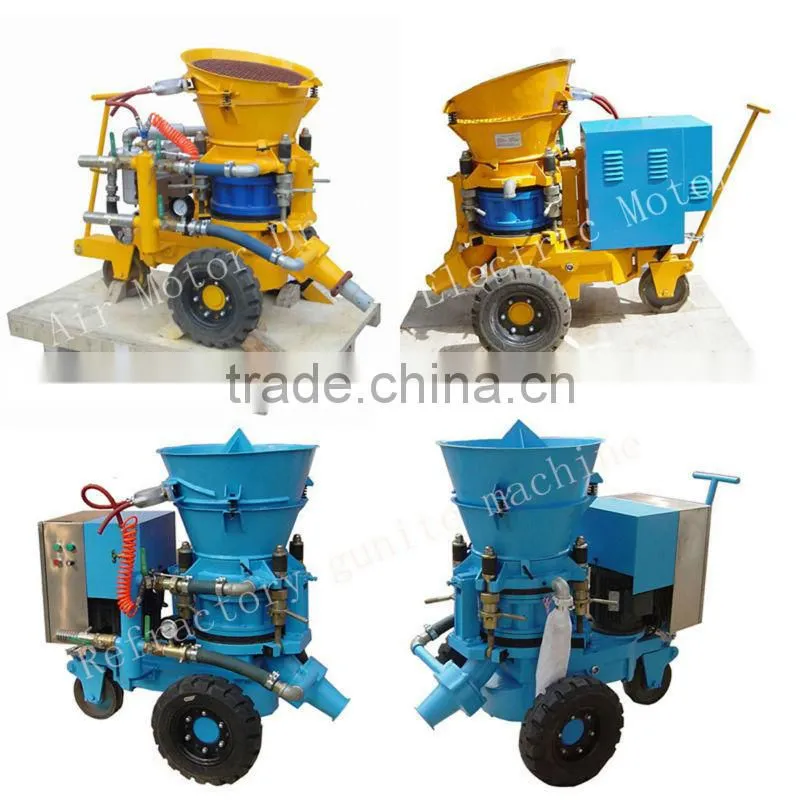

Other type shotcrete mahcine we supply:
LZ3000E wet-mix concrete spraying machine video application:
Why choose us ?
1. We are China's leading shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certifications of our company:
FAQ:
Thank you for your time and welcome to visit our factory!
