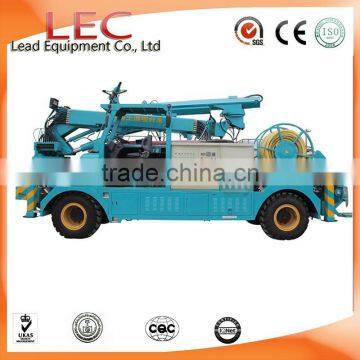

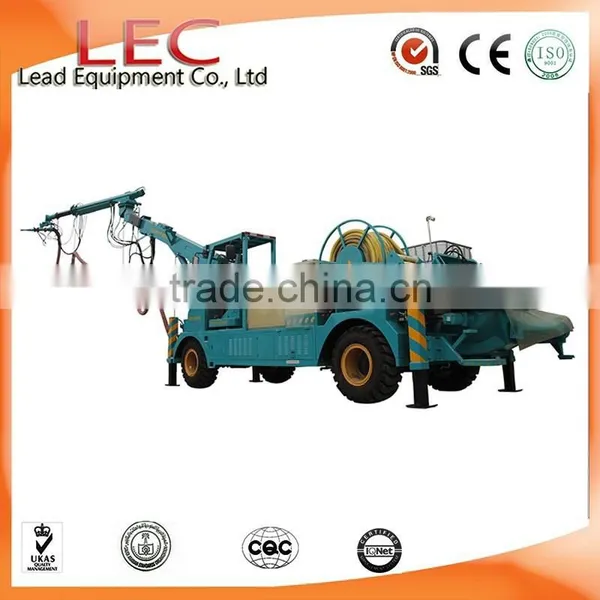

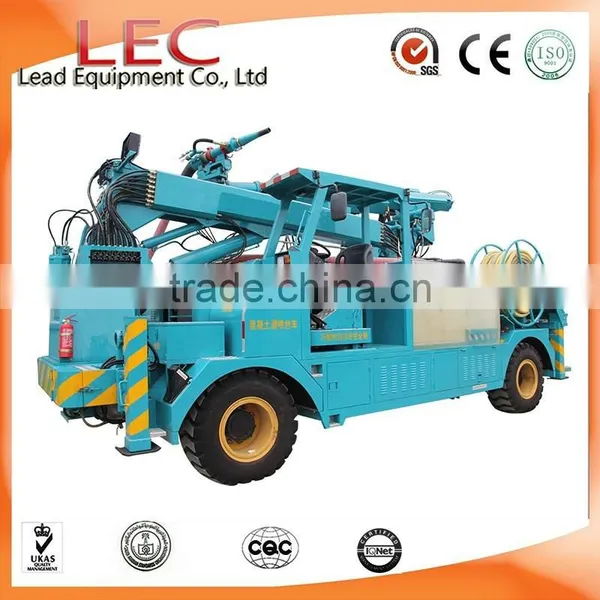

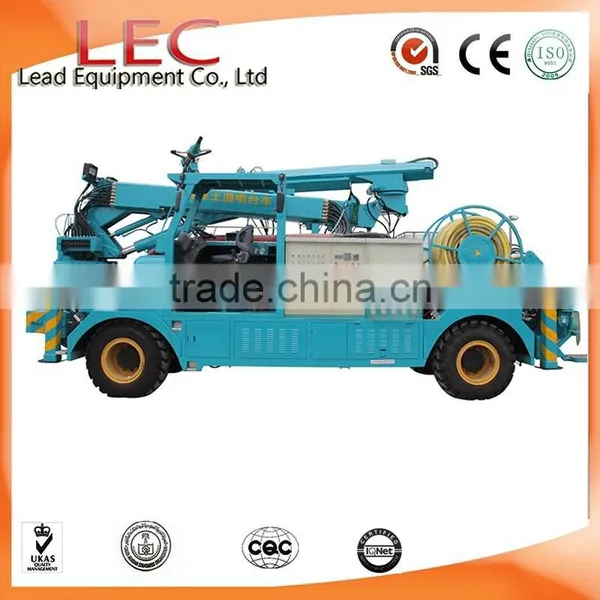

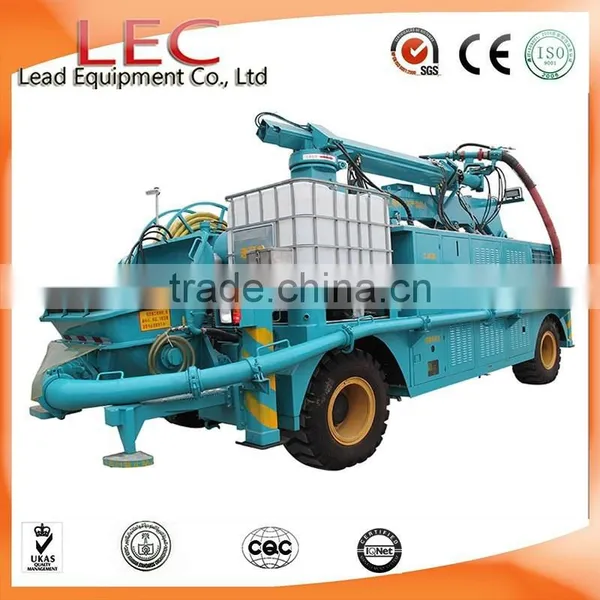

HSC-3016 30m3/h tunnel application concrete spray system with robotic arm shotcrete machine
HSC-3016 30m3/h tunnel application concrete spray system with robotic arm shotcrete machine description:
The series wet shotcrete system equipments are high-end equipment with top design and manufacture. They have multi-function and can be applied widely.
HSC-3016 30m3/h tunnel application concrete spray system with robotic arm shotcrete machine features:

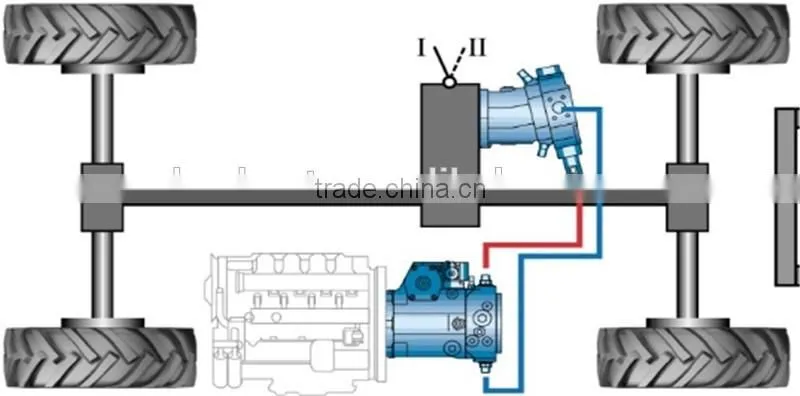

1. Hydrostatic running system, rigid chassis, wet mix braking system.
2. Four-wheel tranmission, four-wheel steering, small turning radius, thus make a better operation.
3. Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.

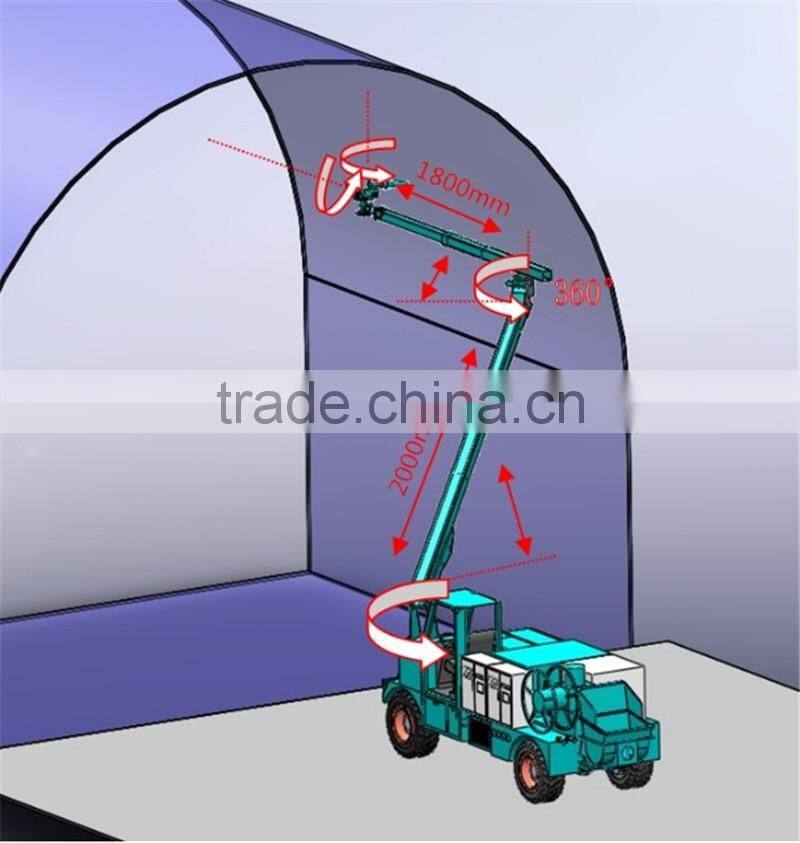

5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Electric motor and diesel two-motor drive.

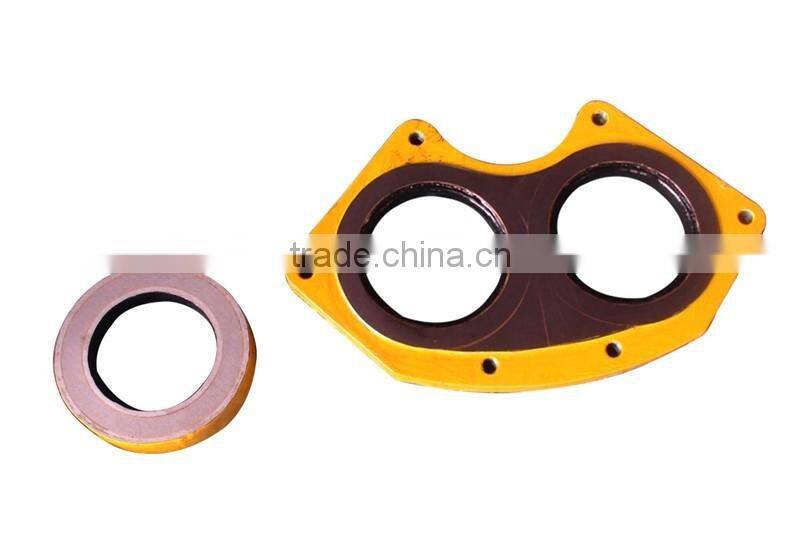

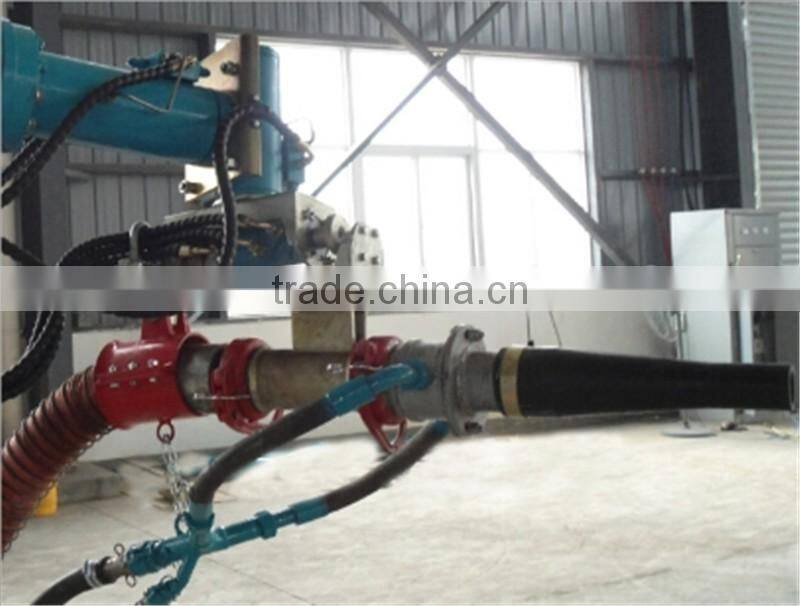

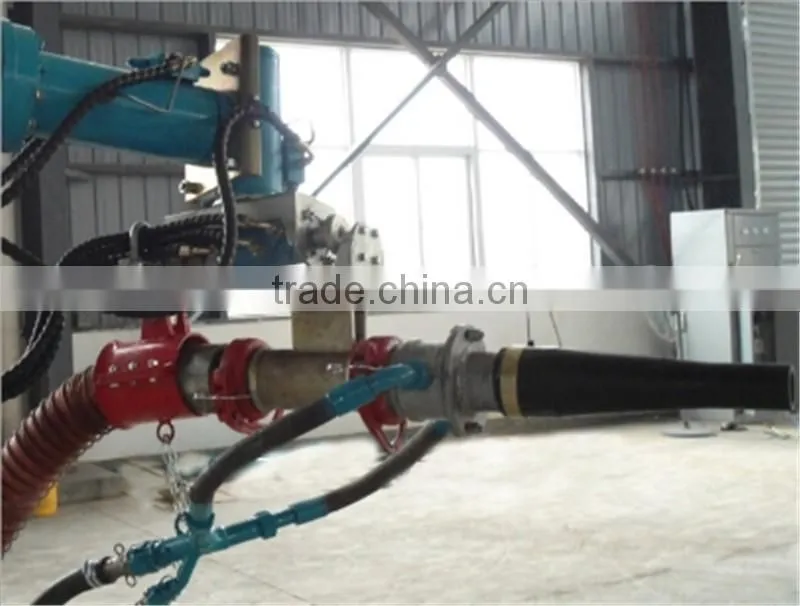

7. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
8. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
9. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
10. All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
11. Diesel engine can make the spray arms move slowly in case the concrete solidification makes the equipment crash when electric power is off.
HSC-3016 30m3/h tunnel application concrete spray system with robotic arm shotcrete machine technical data:
| Item | unit | HSC-3016A | HSC-3016 | HSC-2815 | |
| Unity machine parameter | L×W×H | mm | 8100×2730×3250 | 8100×2730×3250 | 7800×2530×3280 |
| Weight | kg | 17600 | 17500 | 14500 | |
| Arm and Leg parameter | Arm structure | main arm rotate + telescope, spray arm rotate + telescope | |||

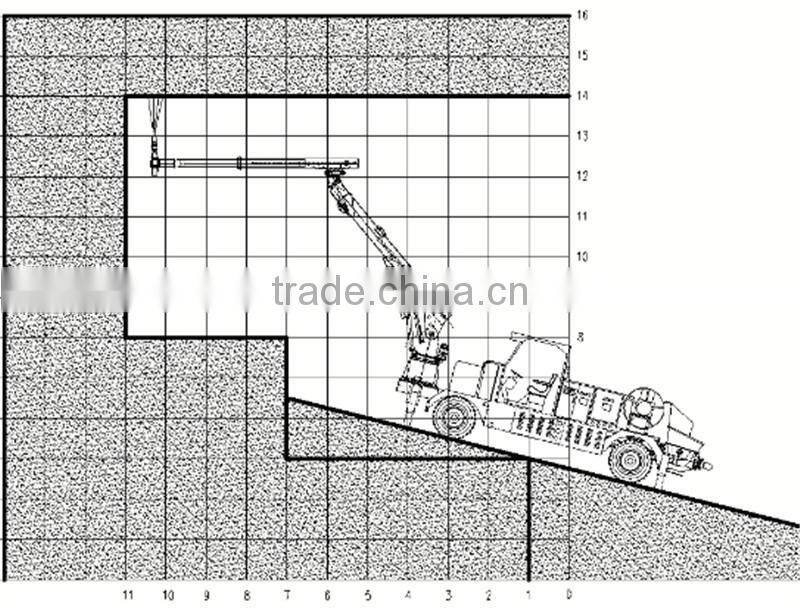

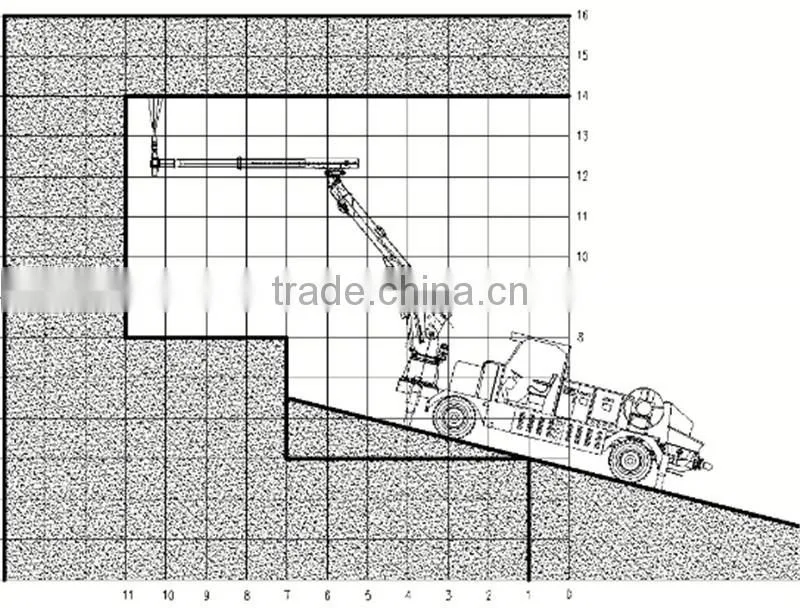

| max. spray height | m | 16 | 16 | 15 | |
| max. spray width | m | 2×14 | 2×14 | 2×13 | |
| max. spray depth | m | 8 | 8 | 7 | |
| big arm pitching angle | degree | -30º~+60º | -30º~+60º | -30º~+60º | |
| small arm pitching angle | degree | -60º~+30º | -60º~+30º | -60º~+30º | |
| nozzle rotate angle | degree | 360º | 360º | 360º | |
| nozzle swing angle | degree | 240º | 240º | 240º | |
| front leg span | mm | 3620 | 3620 | 3220 | |
| drive mode | electric motor and diesel two-motor drive | electric motor work (diesel is used for cleaning and withdrawing arms in case of electric power off) | electric motor work (diesel is used for blowdown, cleaning and withdrawing arms in case of electric power off) | ||
| electric motor rated power | kW | 55 | 59 | 59 | |
| electric motor working voltage | V/Hz | 380/50 | 380/50 | 380/50 | |
| diesel engine rated power | kW | 92 | 92 | 93 | |
| Pump parameter | rated output | m3/h | 30 | 30 | 28 |
| rated reversing time | /min | 17 | 17 | 23 | |
| system pressure | Mpa | 23 | 23 | 23 | |
| outlet pressure | Mpa | 7 | 7 | 7 | |
| convey cylinder inner diameter | mm | Φ180 | Φ180 | Φ160 | |
| convey cylinder stroke | mm | 1200 | 1200 | 1000 | |
| nozzle diameter | mm | Φ45 | Φ45 | Φ45 | |
| Chassis parameter | wheel track | mm | 1830 | 1830 | 1830 |
| wheel base | mm | 4500 | 4500 | 4100 | |
| front and rear axle drive mode | - | 4×4 | 4×4 | 4×4 | |
| fuel tank capacity | L | 200 | 240 | 190 | |
| max. running speed | Km/h | 22 | 22 | 22 | |
| max. gradeability | % | 40 | 40 | 40 | |
| min. ground clearance | mm | 450 | 450 | 450 | |
| min. turning radius | m | 5.5 | 5.5 | 5 | |
| braking distance | m | ≤10 | ≤10 | ≤10 | |
| Auxiliary system parameter | cable | m | 100 | 100 | 100 |
| air compressor power | kW | 65(75) | 65(75) | 55+1.5 | |
| air compressor output | m3/min | 15 | 15 | 15 | |
| air compressor working pressure | Mpa | 0.5 | 0.5 | 0.5 | |
| additive output | L/h | 800 | 800 | 800 | |
| additive system pressure | Mpa | 1 | 1 | 1 | |
| coagulant tank capacity | L | 1000 | 1000 | 850 | |

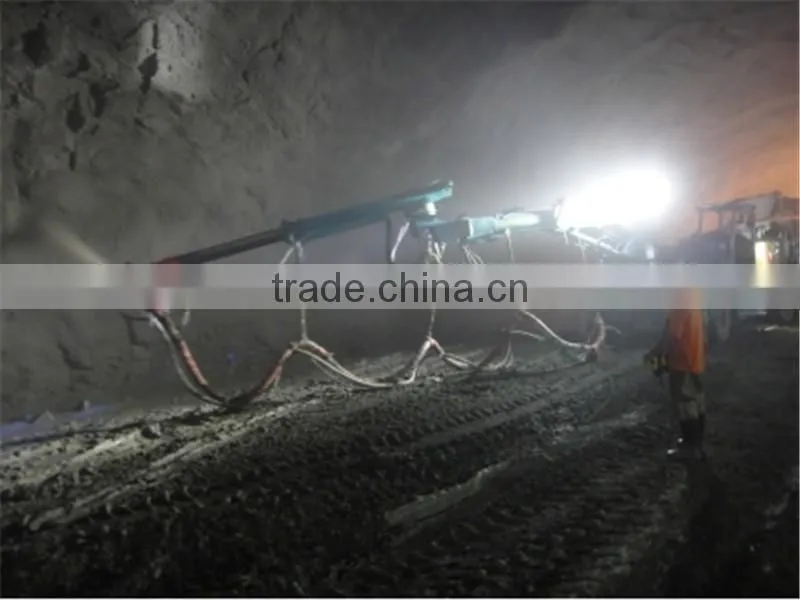

HSC-3016 30m3/h tunnel application concrete spray system with robotic arm shotcrete machine application:
This equipment are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.

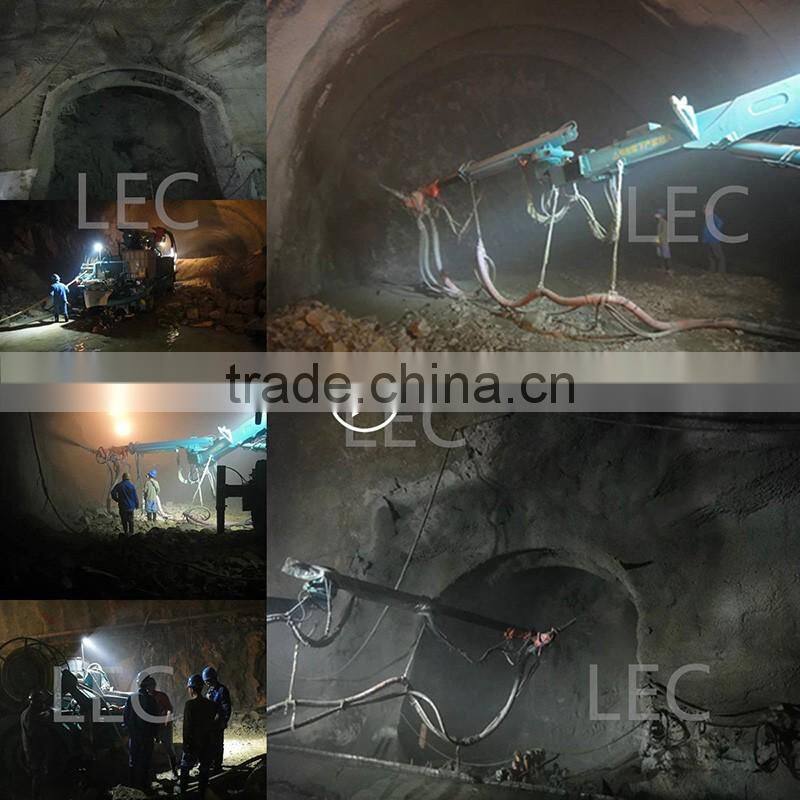

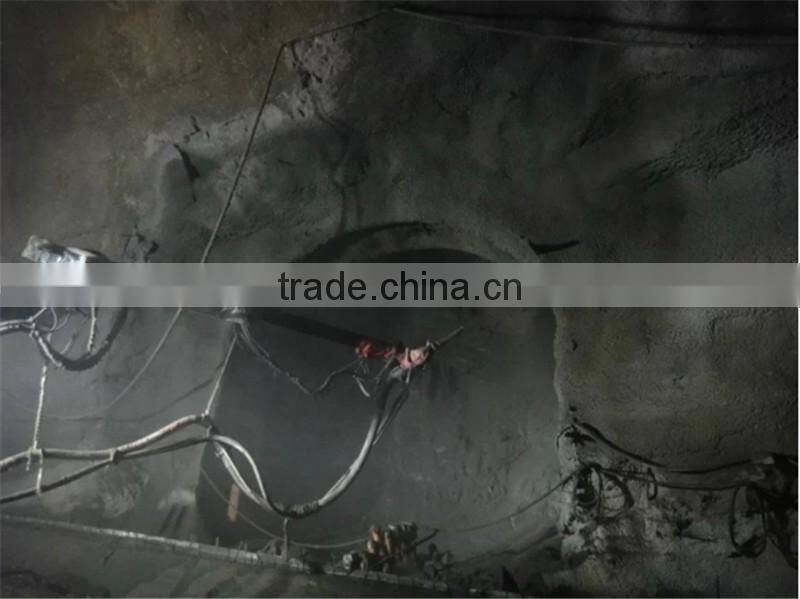

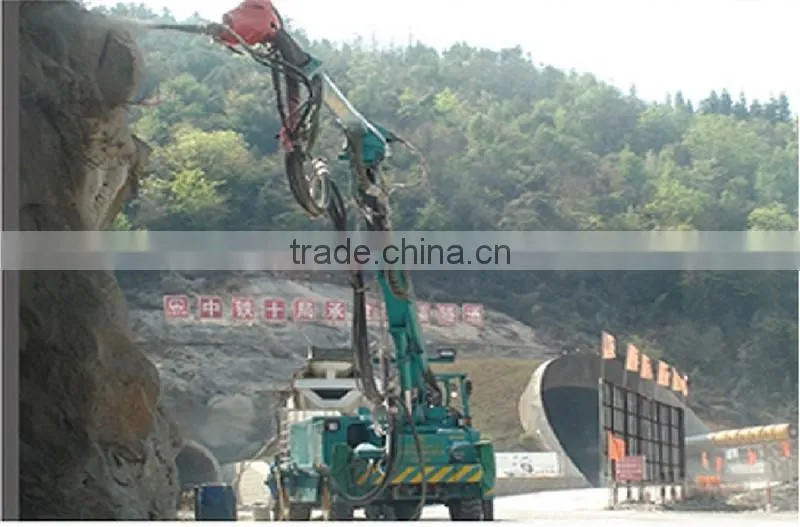

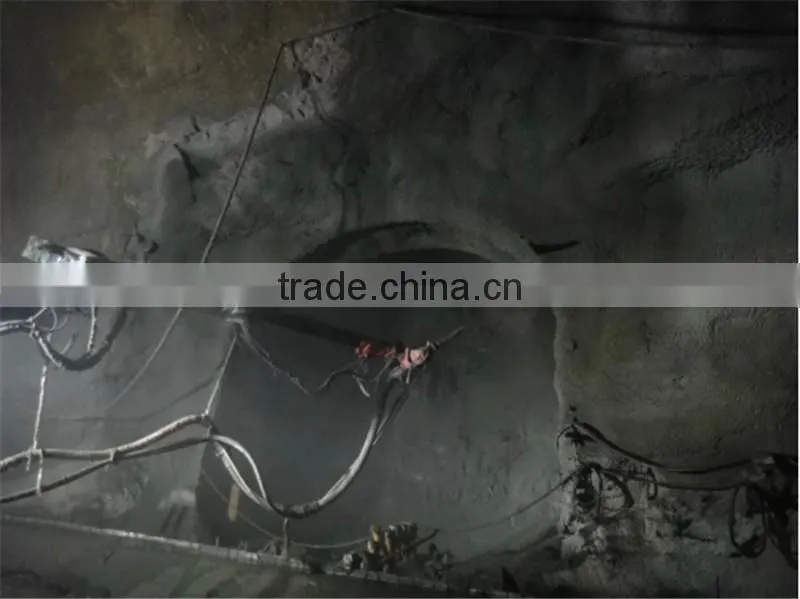

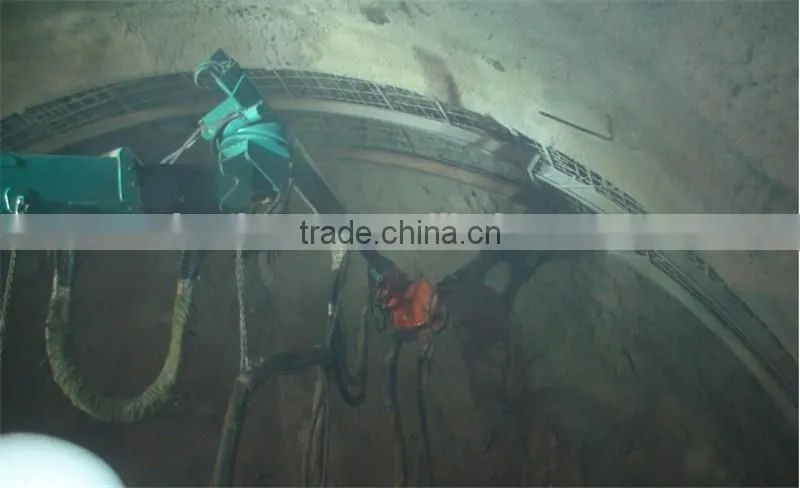

HSC-3016 30m3/h tunnel application concrete spray system with robotic arm shotcrete machine applied in railway tunnel
Concrete spray robotic telescopic arm shotcrete equipment video application:
1. We are China's leading shotcrete machine manufacturer.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
FAQ:
1. Q: Is this equipment suitable for our project?
A: Please tell us more about your project and our techinical staff will offer you best solution.
2. Q: Do you have smaller similar machine?
A: Yes. we also supply 2515 and 2013 series machines with smaller output.

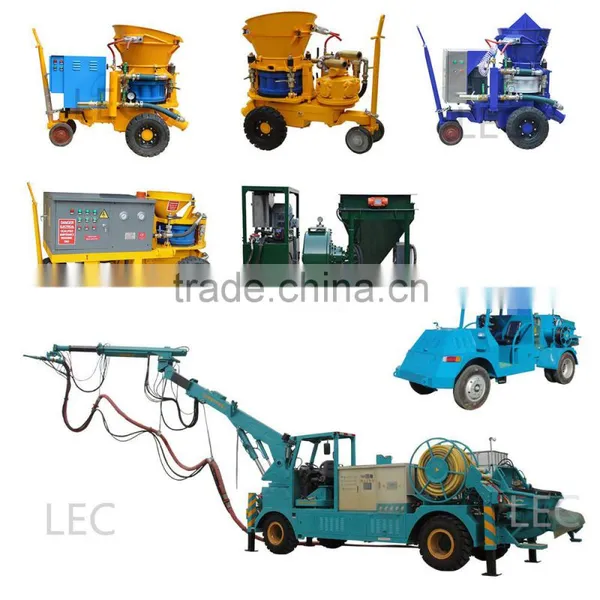

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
If you have any question please feel free to contact me.
Thank you for your time and welcome to visit our factory!
