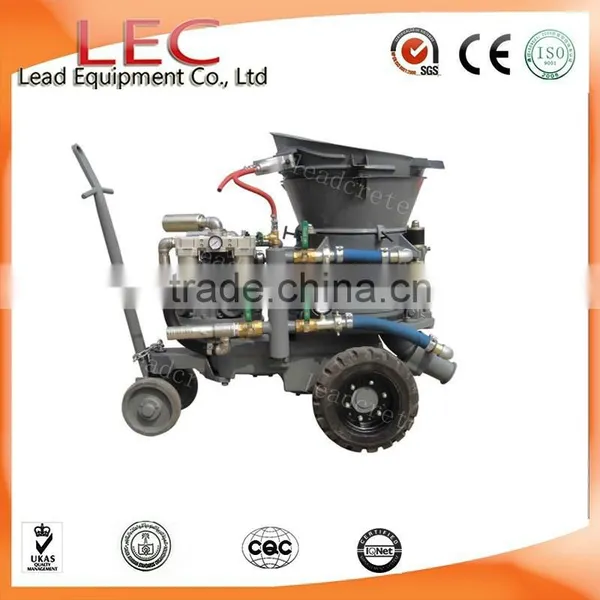

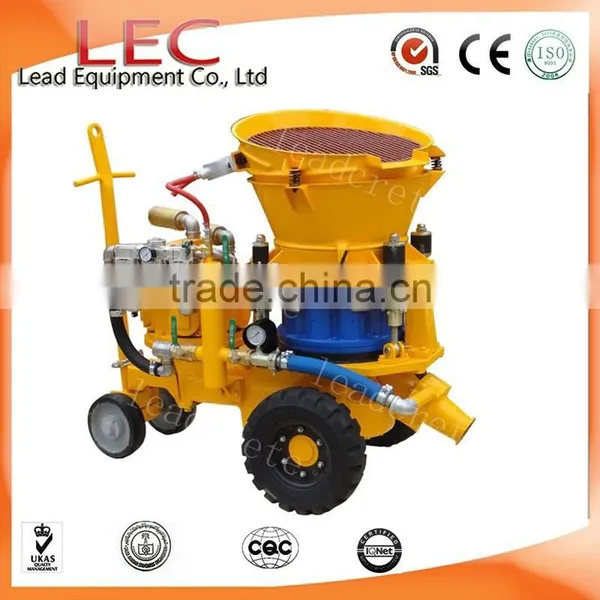

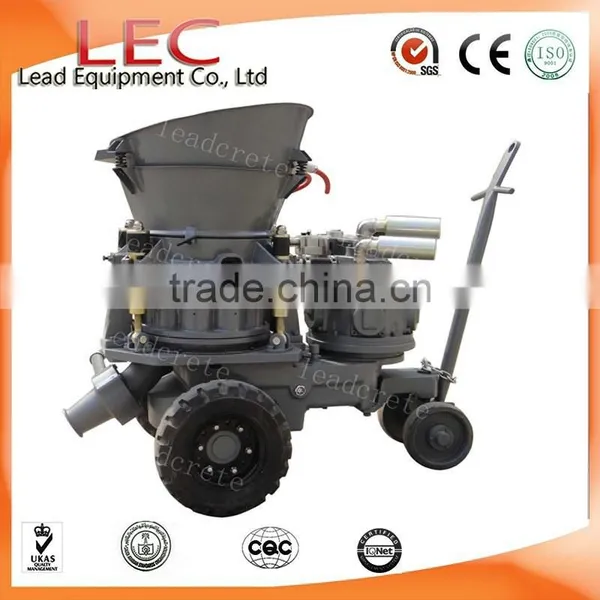

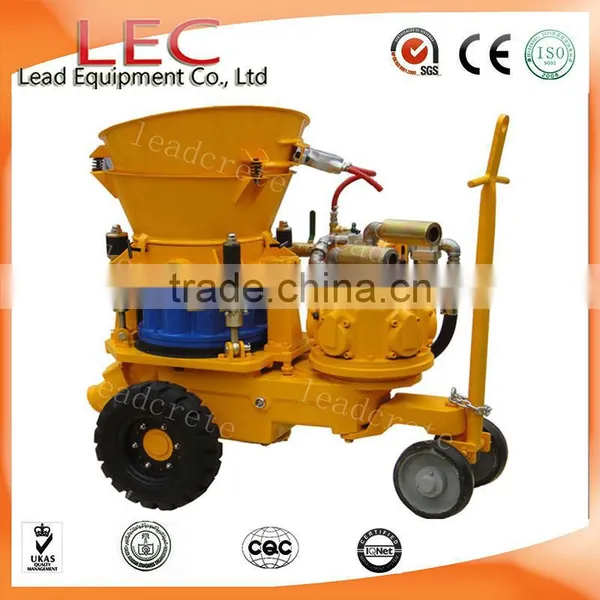

LZ-5A pneumatic anti-explosion tunnel mine concrete spray machine
LZ-5A pneumatic anti-explosion tunnel mine concrete spray machine description:

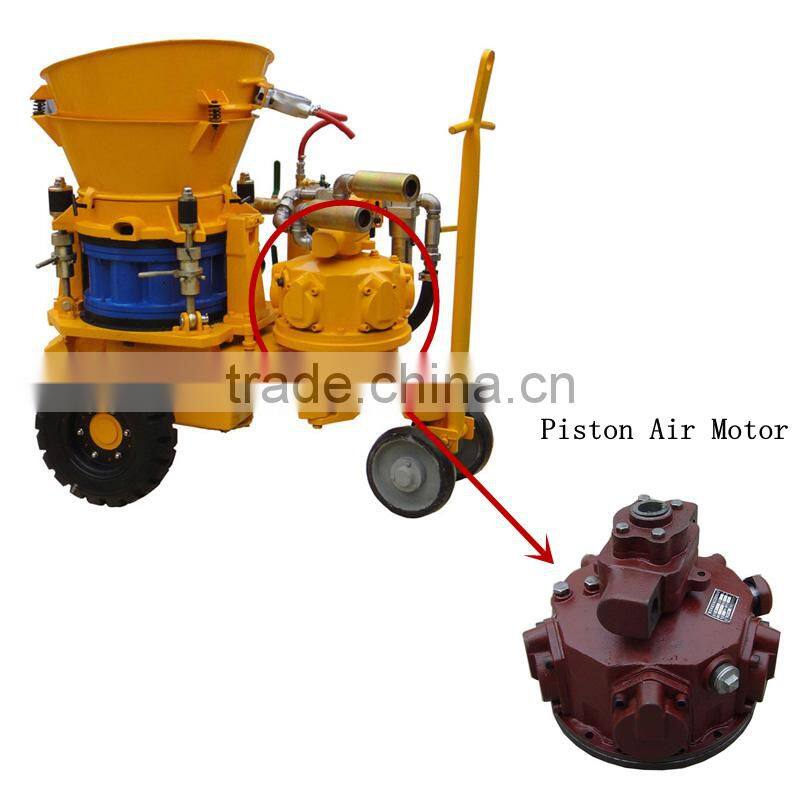

With our customers driving, our machine is designed and manufactured by us based on our original LZ-5 machine. Besides holing all advantages of LZ-5 concrete spray machine , LZ-5A Air motor drive concrete spray machine holds the additional new features:
In worksites, only one compressed air hose is connected to the inlet of LZ-5A Air motor drive gunning equipment , the machine can work, without electric power supply.
The output of machine can be Variable Speed from 2.5-5 cubic meter per hour(or from 3.3-6.6 cubic yards per hour)
The LZ-5A concrete spray machine can work in the explosion protection worksites.

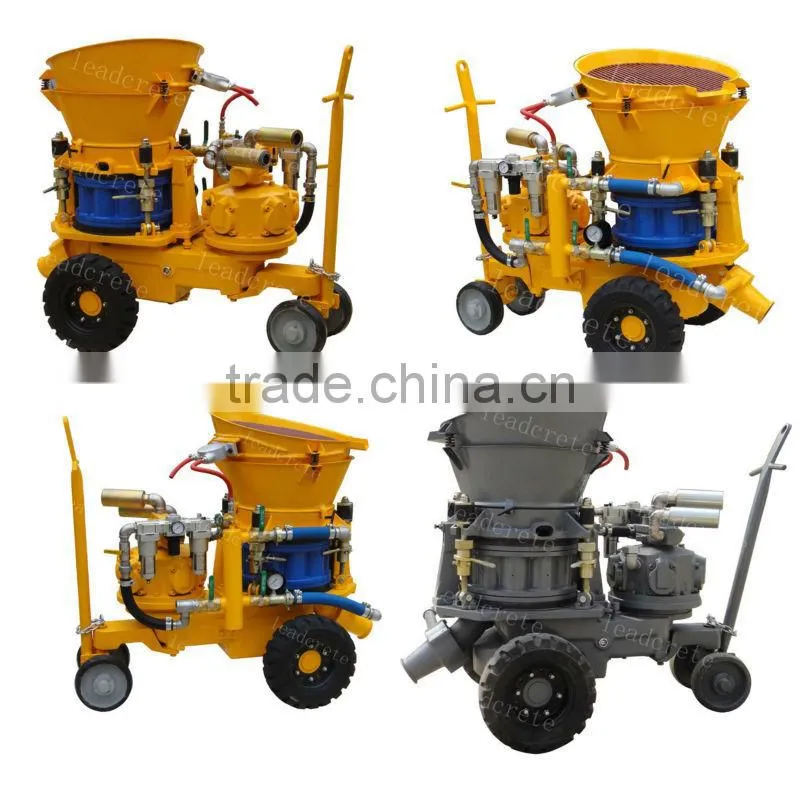

LZ-5A Air motor drive concrete spray machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel
LZ-5A pneumatic anti-explosion tunnel mine concrete spray machine Technical Data
Output Capacity |
2.5-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
Max. Aggregate Size |
Φ15 mm |
Conveying Hose Inner Diameter |
Φ51 mm |
Conveying Pressure |
0.2-0.4MPa |
Air Consumption for conveying material |
7~8m3/min |
Air Motor Air Pressure |
0.5MPa |
Material Charging Height |
1.1m |
Rotor Speed |
11rpm |
Air Motor Type |
TMH6A |
Air Motor Air Consumption |
7.5m3/min |
Overall Dimension(length×width×height) |
1.35×0.75×1.2m |
Net Weight |
720kg |
Durable spare parts:
Package:

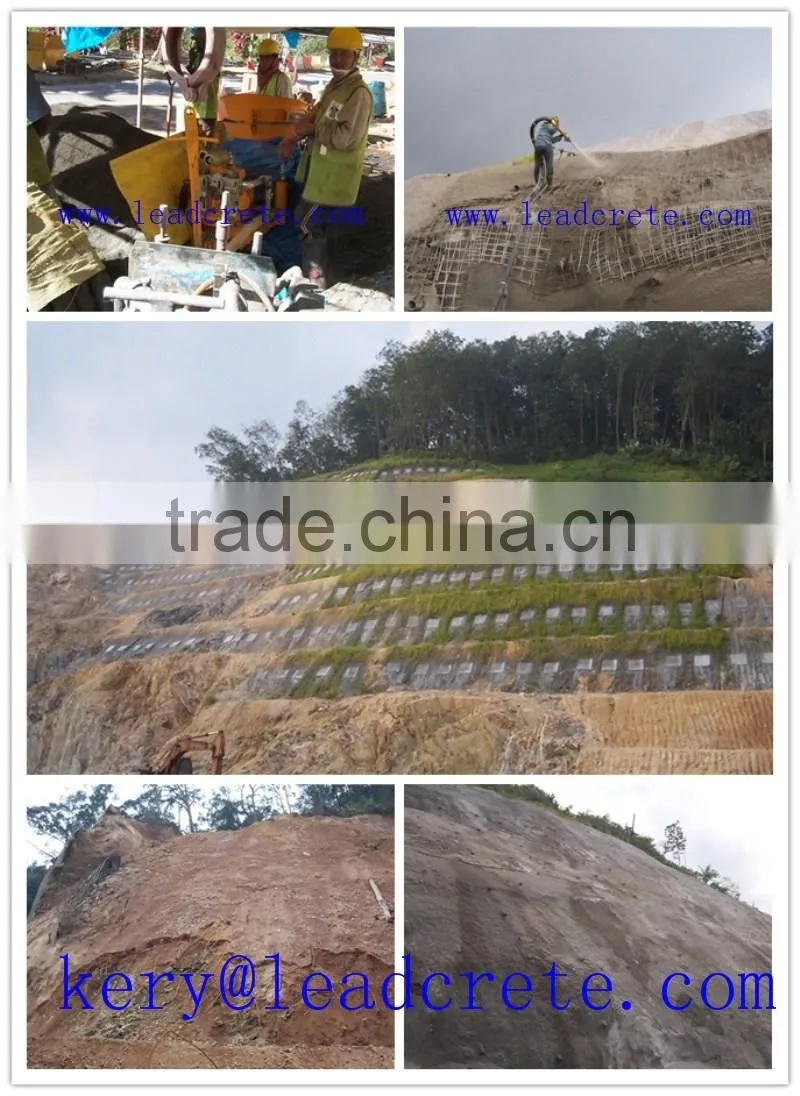

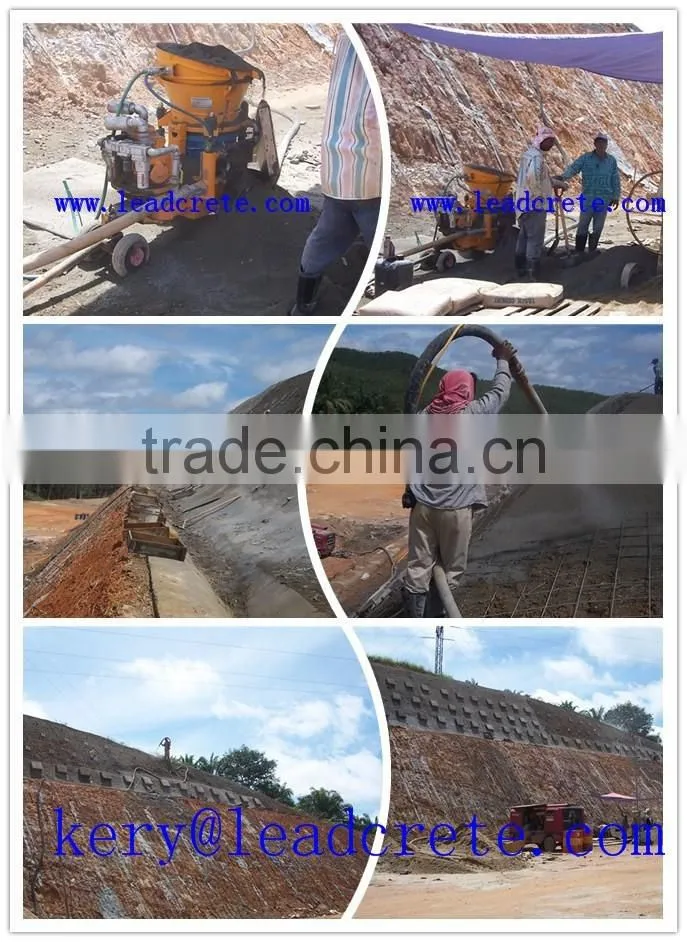

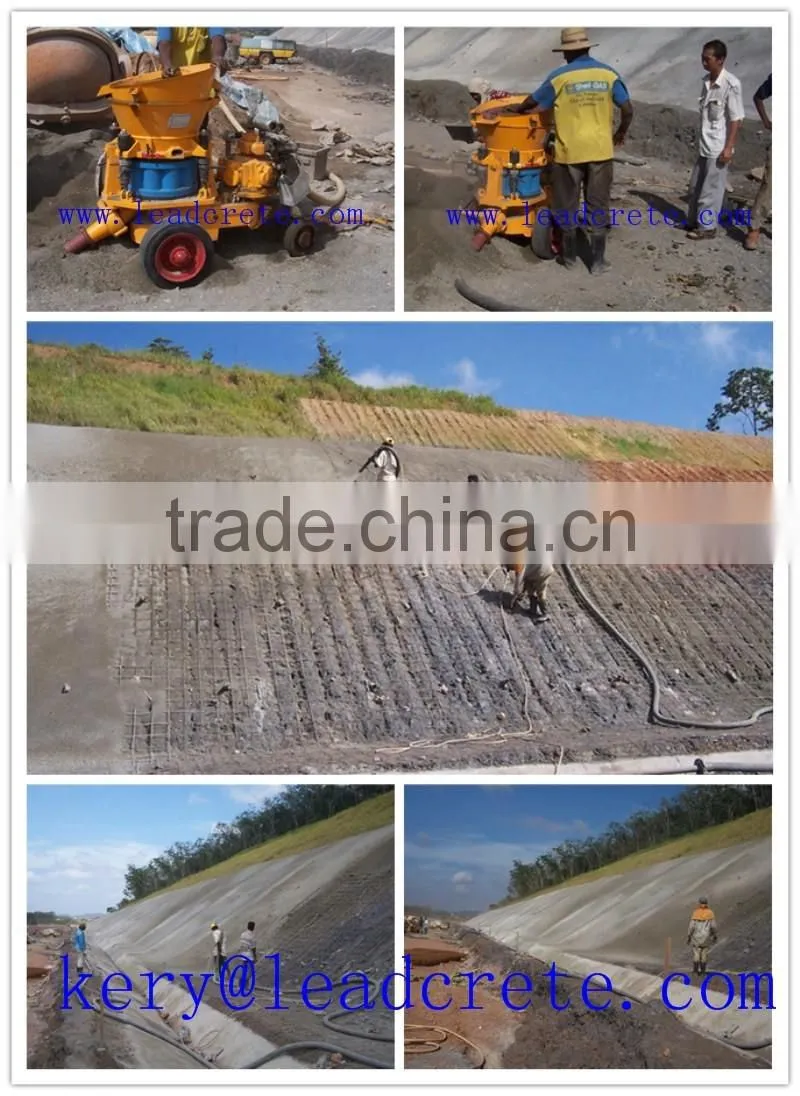

Application:
Why choose us ?
1. We are China's leading concrete spray machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certifications of our company:

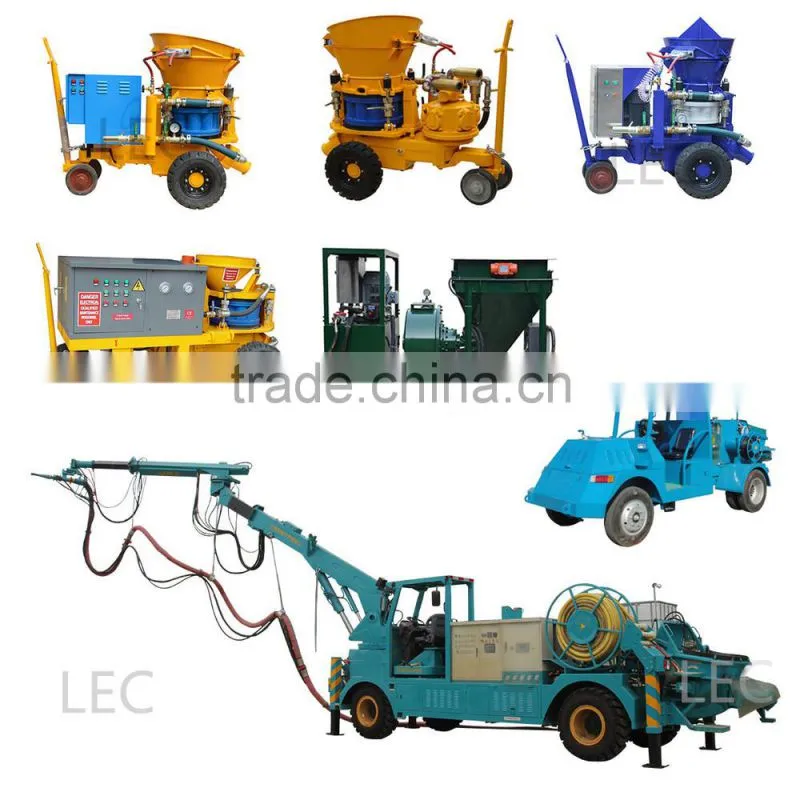

More shotcret machine we supply:
If you have any quetion please feel free to contact me:
Thank you for your time and welcome to visit our factory!
