LZ9 large sized gunite spray dry concrete shotcrete machine
LZ9 large sized gunite spray dry concrete shotcrete machine description:
LZ-9 shotcrete machine is LEC large-sized shotcrete machine for the spraying process.
LZ-9 shotcrete machine can be used for large-section tunnel building, mine, etc

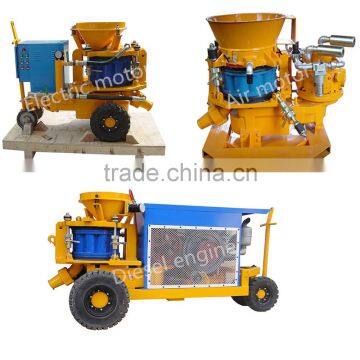

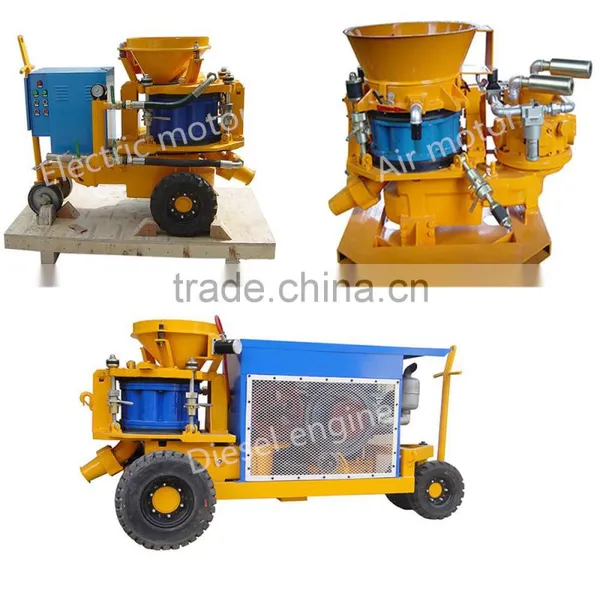

LZ-9 shotcrete machine is available in following versions:
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel

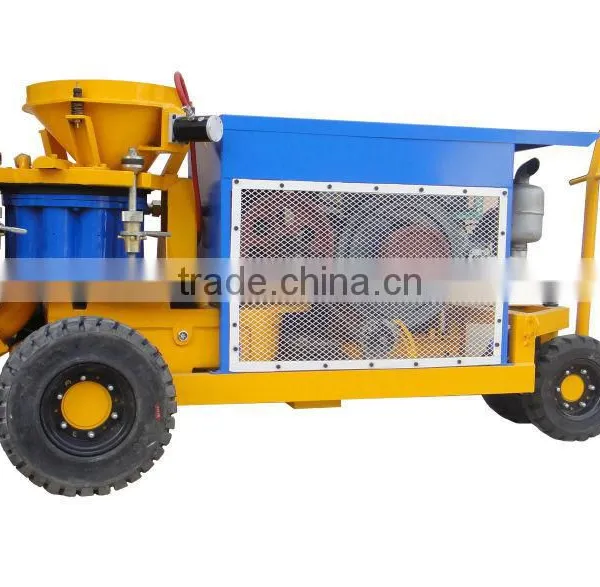

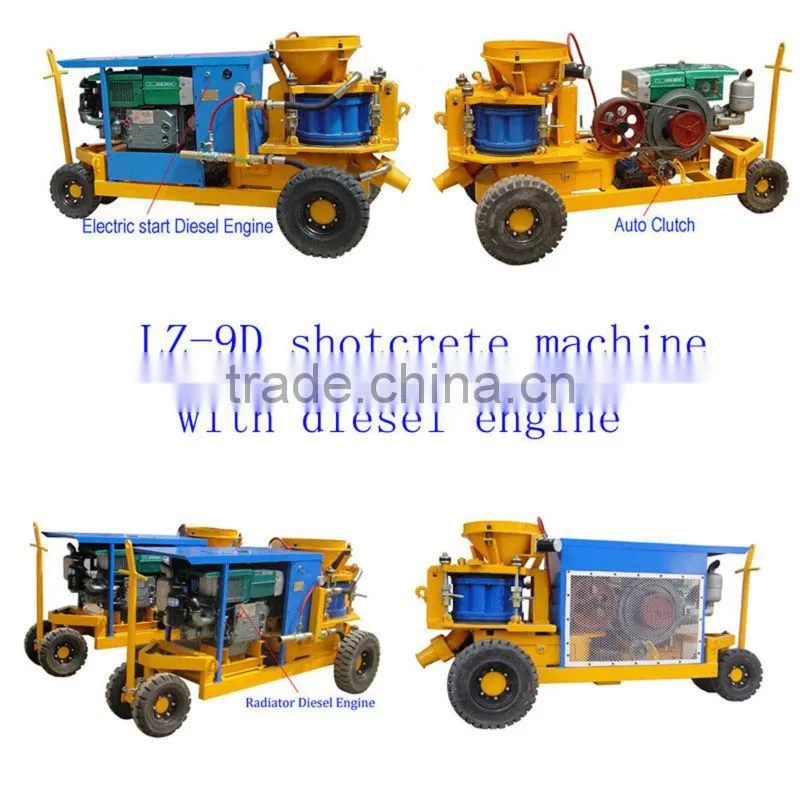

Diesel engine type concrete shotcrete machine:

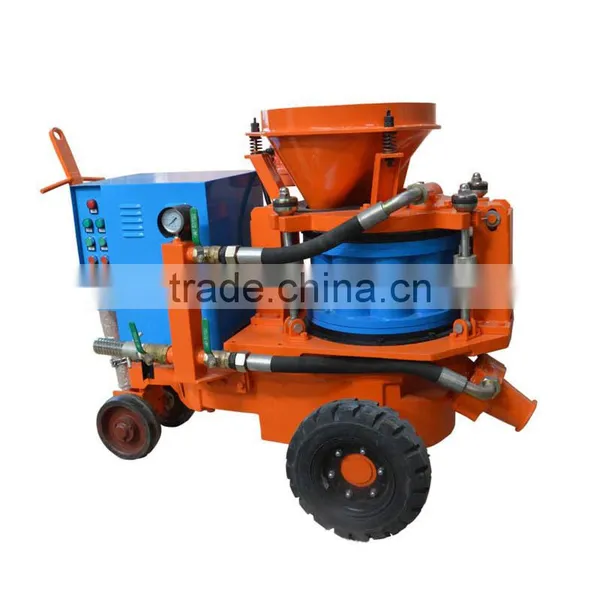

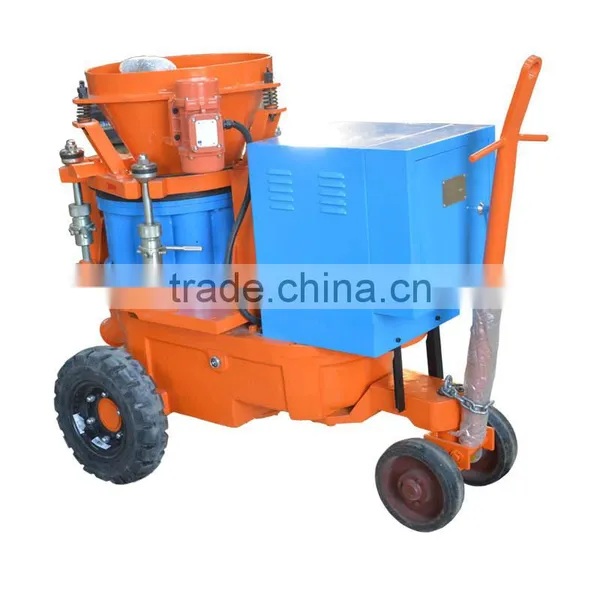

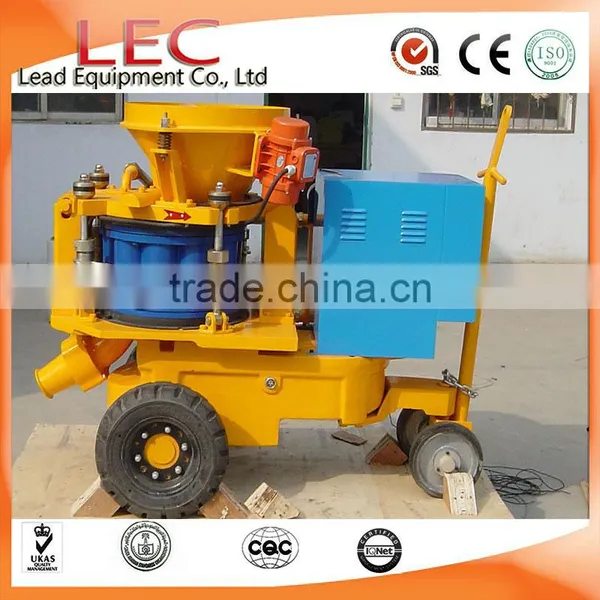

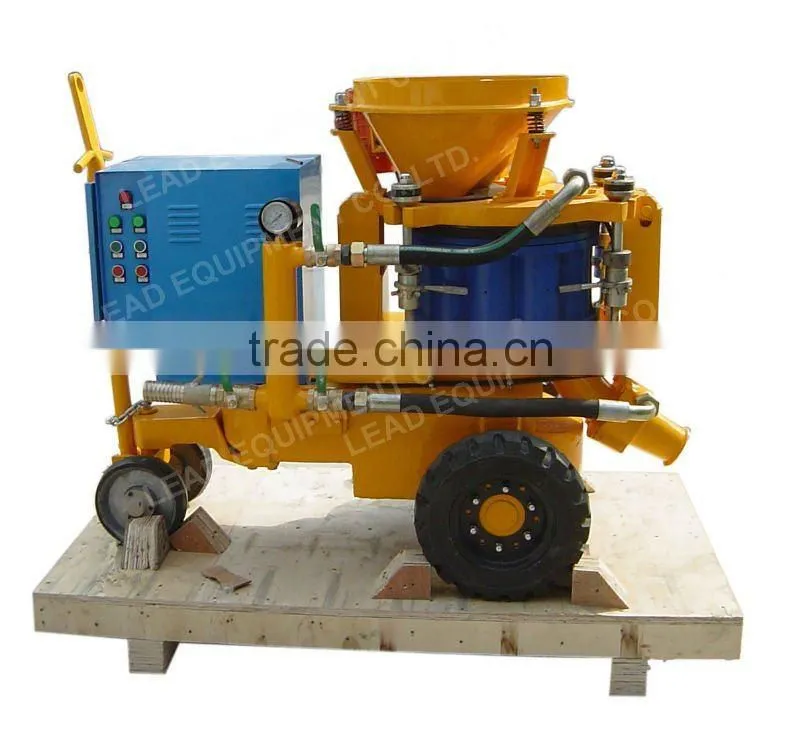

Electric drive type concrete shotcrete machine:

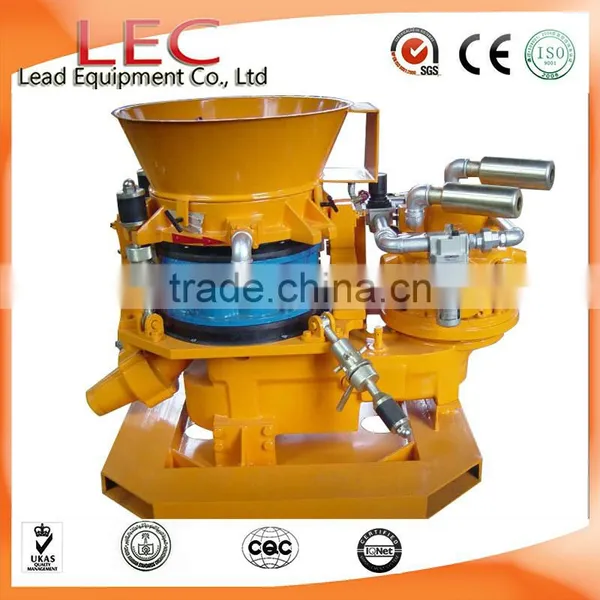

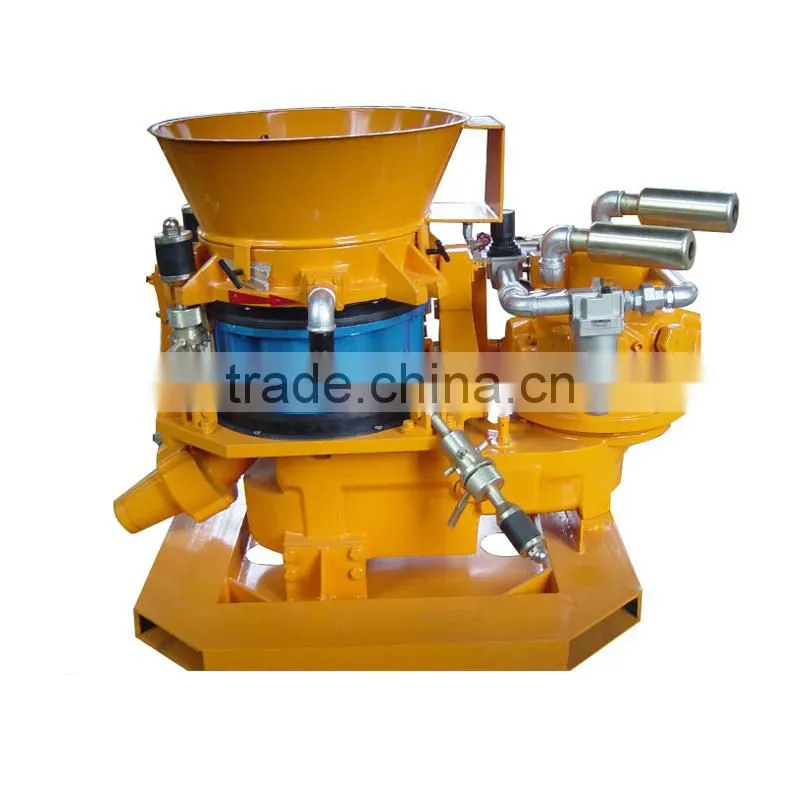

Air motor type concrete shotcrete machine:
LZ9 large sized gunite spray dry concrete shotcrete machine technical data:
Electric drive:
Output Capacity | 9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Electric Motor | 7.5kW,Y132M-4,IP55 |
Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
Net Weight | 900kg |
Air motor drive:
Output Capacity | 5-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 6-11r/min |
Air Motor | TMH8A |
Air pressure for air motor | 0.5Mpa |
Air consumption for air motor | 10 m3 /min/357CFM |
Vibrator | OR100,oil |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
Net Weight | 900kg |
Diesel drive:
Output Capacity | 6-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |
Diesel Engine | 20hp,2200rpm, Radiator Cooling |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
Net Weight | 950kg |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Durable concrete shotcrete machine spare parts:

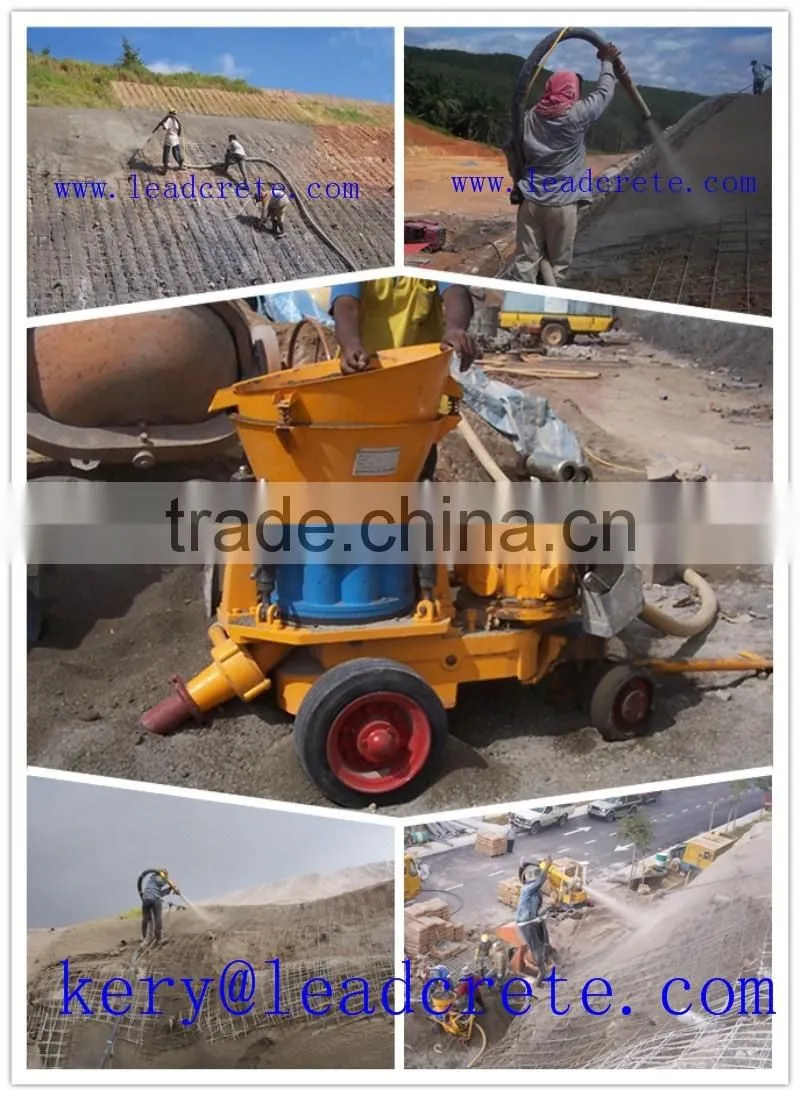

Various Application of concrete shotcrete machine:
LZ3000E wet-mix concrete spraying machine video application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD34000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
Why choose us ?
1. We are China's leading concrete shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certifications of our company:
Various Customized concrete shotcrete machine:
FAQ:
Thank you for your time and welcome to visit our factory!
