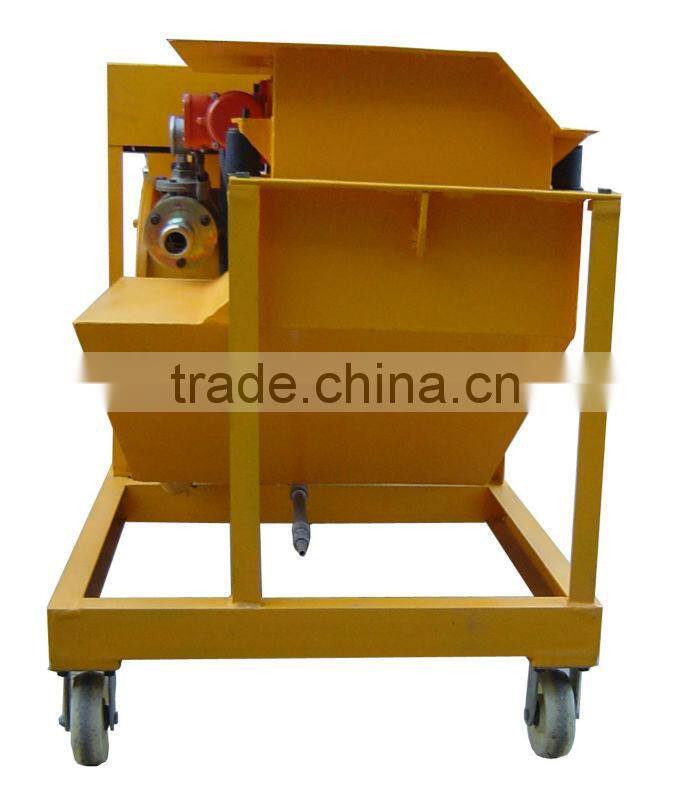

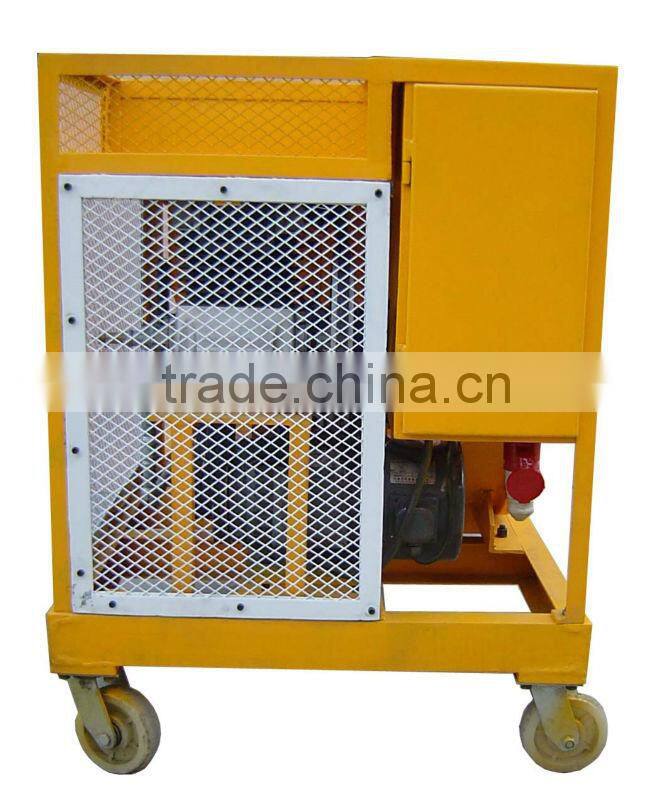

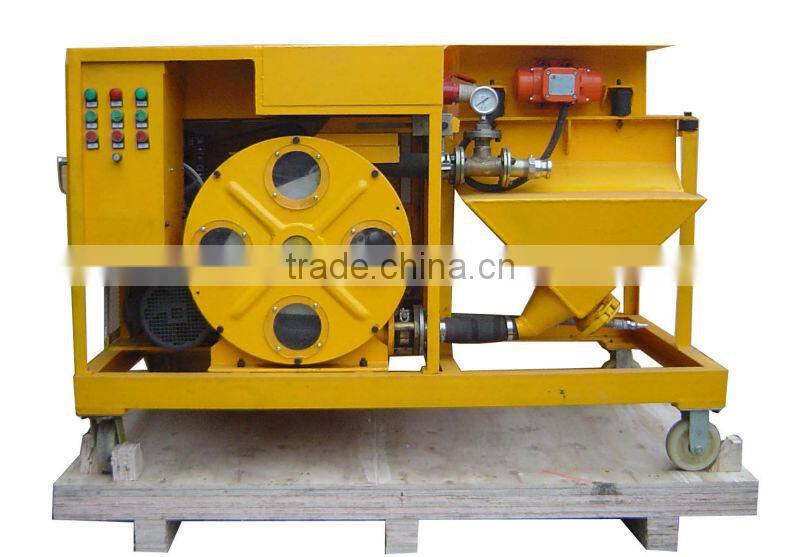

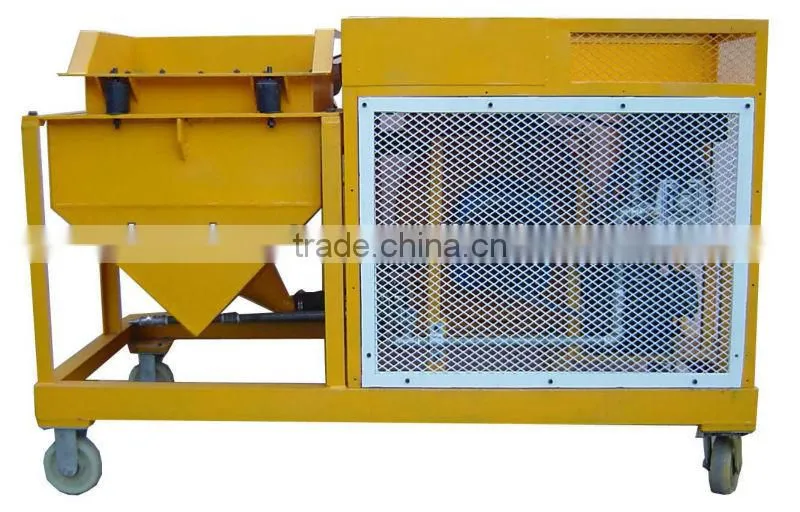

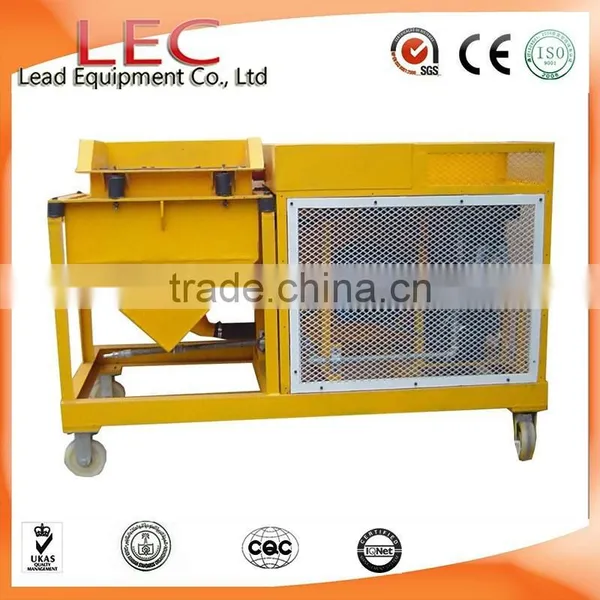

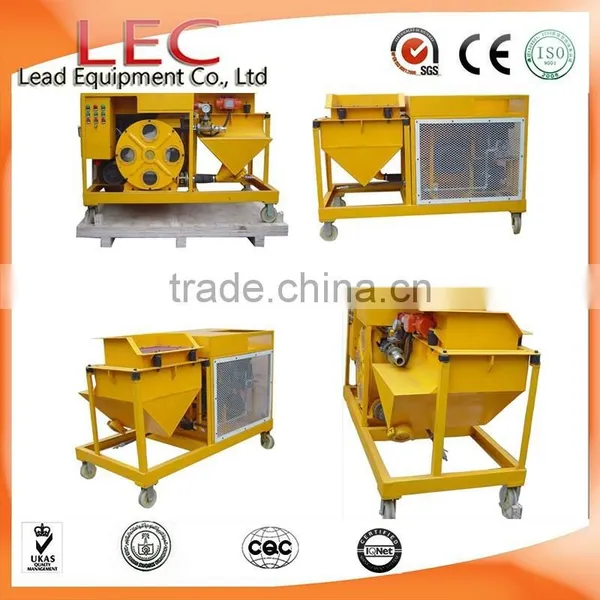

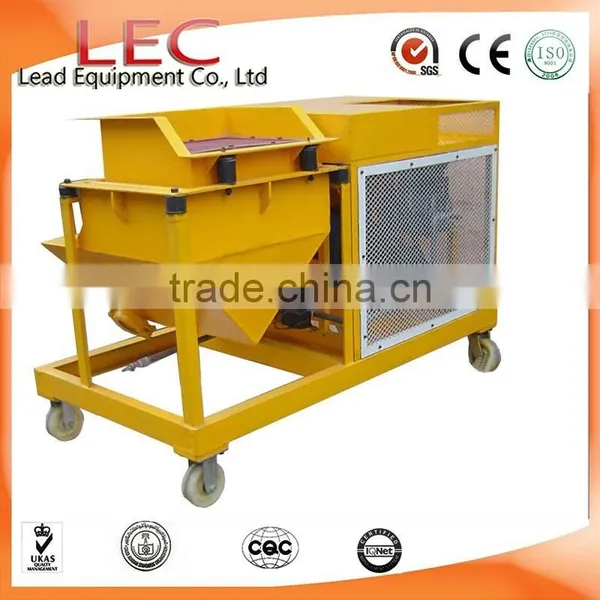

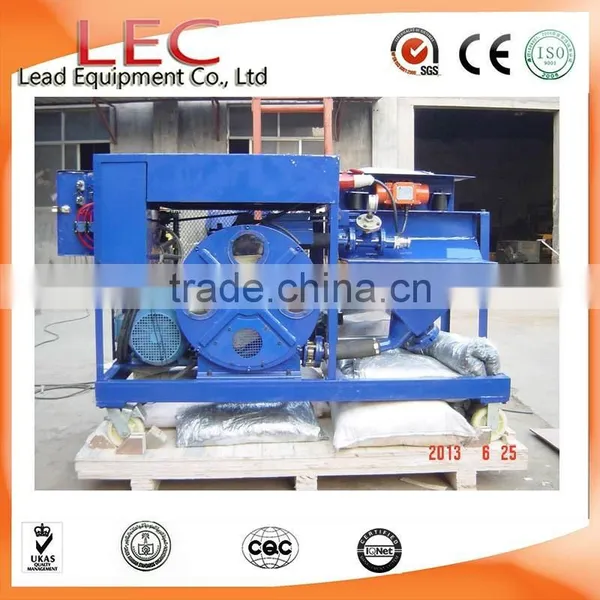

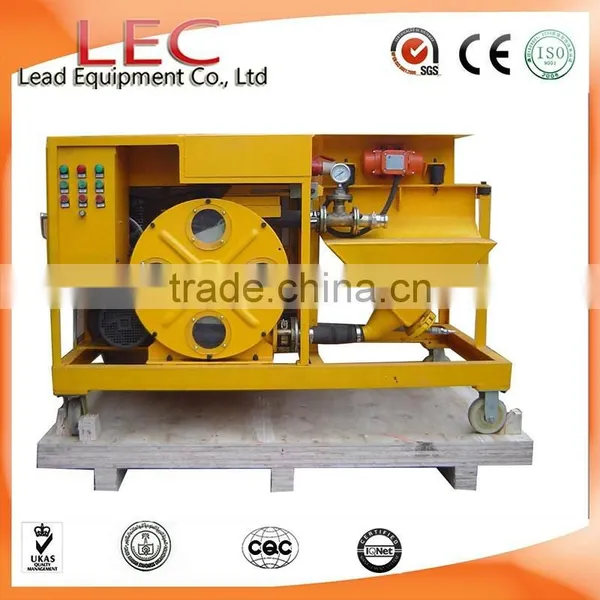

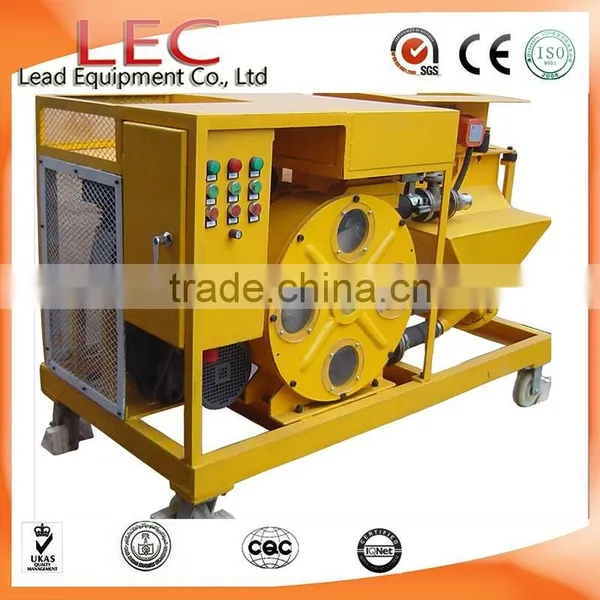

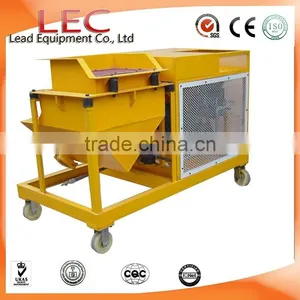

LMP40/10-H Plaster hose pump
Specification: this pump is designed as the combination of LH38-430 hose pump (peristaltic type), mini air compressor and frequency converter. | ||
LH38-430 HEAVY-DUTY HOSE PUMP TECHINCAL DATA | ||
Item | Description | Remarks |
Rotor Dia.(D) | 430mm | |
Hose ID | 38mm/1.5inch | |
Rotor Rev. | 15-33rpm | |
Rated Output/Flow | 18-40L/min | |
Rated pressure | 10 bar | |
Motor Power | 3 KW /4hp, 3 phase, 380v, 50 Hz,IP55 | * |
Suck lift | 5 meter | |
Hose material | NR(Natural Rubber) | |
Overall Dimension | 1600x800x1060mm | |
Weight | 440kg | |
Note:1,the gearbox is heavy -duty Helical-bevel gear 2,*WEG or China domestic electric motor | ||
mini. Air compressor | |
Rated output | 300L/min |
Rated pressure | 7 bar |
Plaster hose Pump
1.Rigid tooth flank helical gear
2.nozzle specially design to get continuous spaying flow
3.ISO, CE, SGS certificate
