China manufacturer electric single liquid medium pressure grouting pump

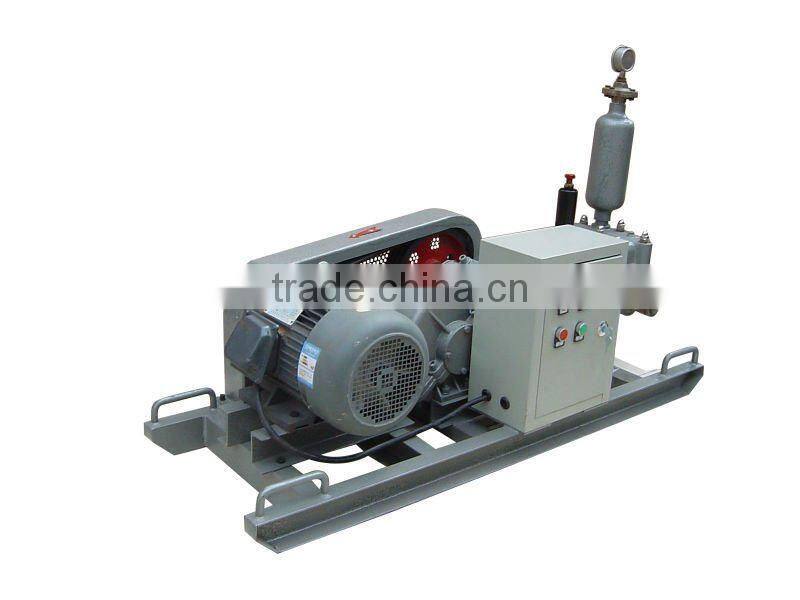

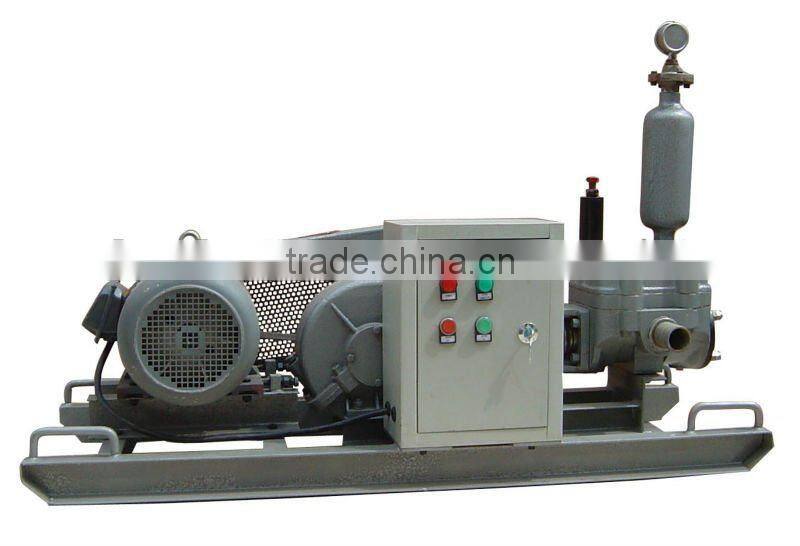

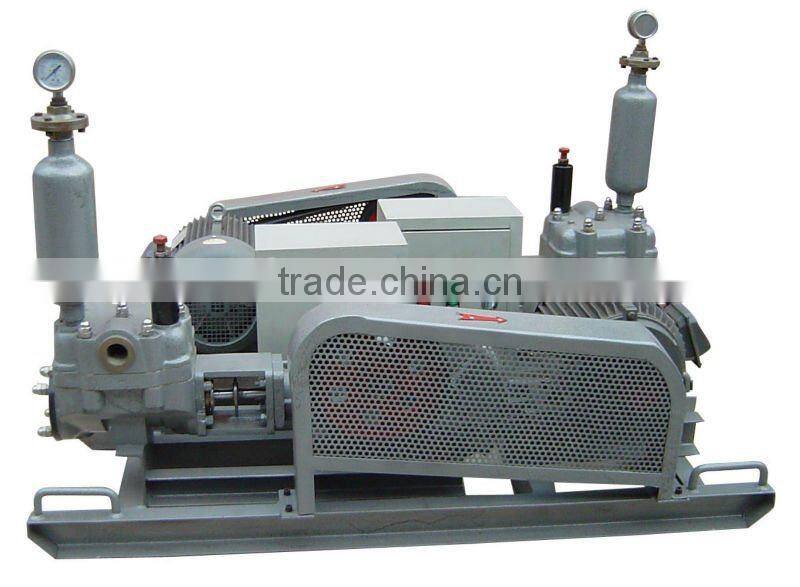

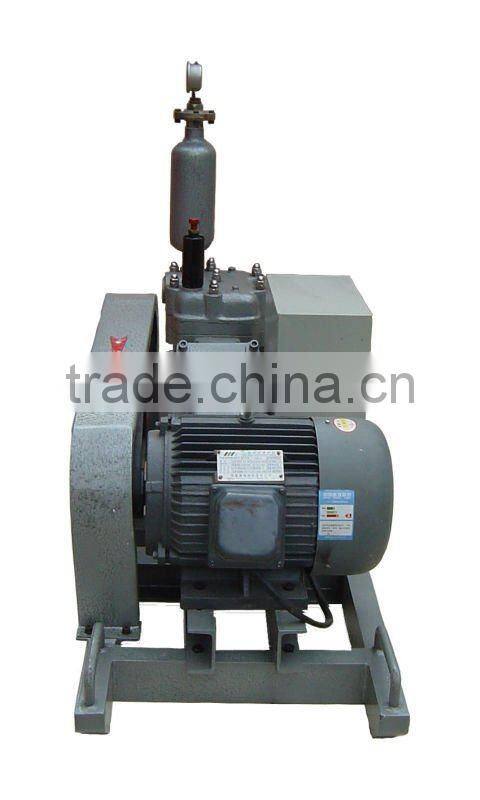

LGM60/20E Medium Pressure Grouting Pump
LGM60/20E Grouting pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
LGM60/20E Grouting pump Features:
1.Single Piston with double outing-acting
2.Gear reducer with electric motor drive
3.Ball valve
4.Compact size
5.High-strength aluminum casting pump house
LGM60/20E Grouting pump Main technical Data:
Rated Output |
60L/min |
Rated Pressure |
2MPa(20bar/290psi) |
Cylinder Dia. |
75mm |
Piston Stroke |
85mm |
Stroke/Minute |
83/min |
Inlet diameter |
51mm |
Outlet diameter |
38mm |
Power unit |
5.5KW(Electric) |
Transmission |
V-belt+gearbox |
Chassis |
Skid |
Weight |
230kg |
Overall Dimensions |
1450x550x950(mm) |
We also have other grouting equipment for your choice, please check it below:
LGH70/90 high pressure hydraulic cement grout pump:
LGM130/20 Medium pressure grout pump, pressure 20bar, output 130L/min, diesel engine.
LDH75/100 Hydraulic grout injection pump:
LGH-H sereis high pressure single slurry electric grout pump:
LHG-10 hand grout pump in stock:
LE series high pressure epoxy grout pump:
LMA500/1000E electric grout mixer and agitator:
LMA300/650D Diesel high speed cement mixer and agitator:
LM300E Colloidal grout mixer:
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
