Help CenterBag Filter for Water Treatment
Related Products
Specifications
1)Factory Price
2)150PSI at130C
3)High Dirt Holding Capacity
4)Easy to Operate & low Maintenance
5)Custom Design Service

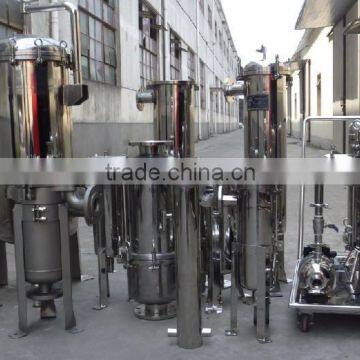

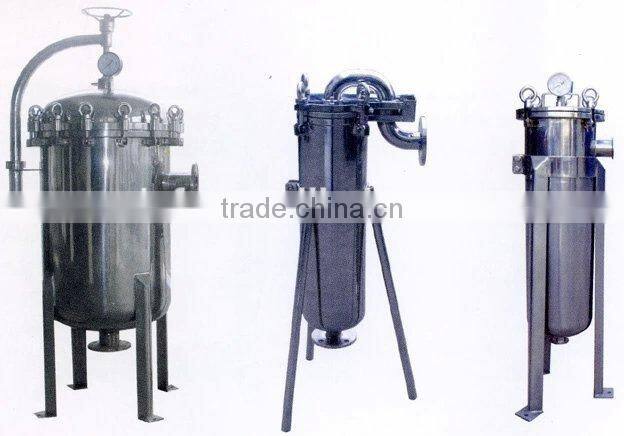

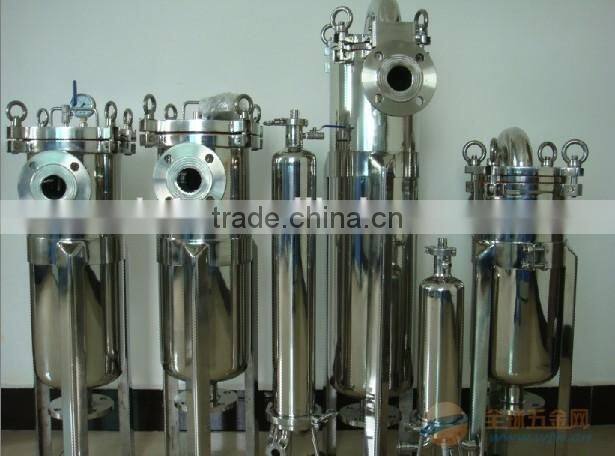

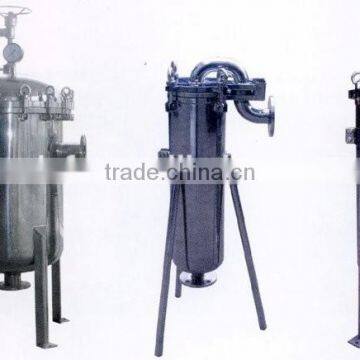

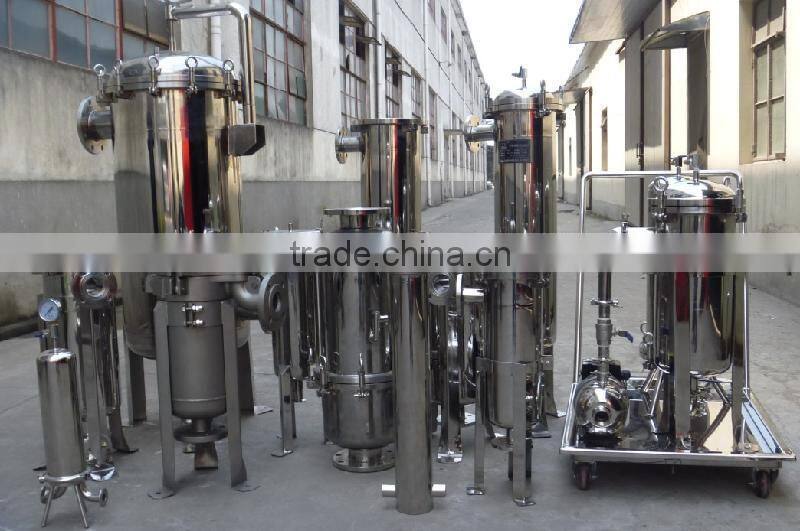

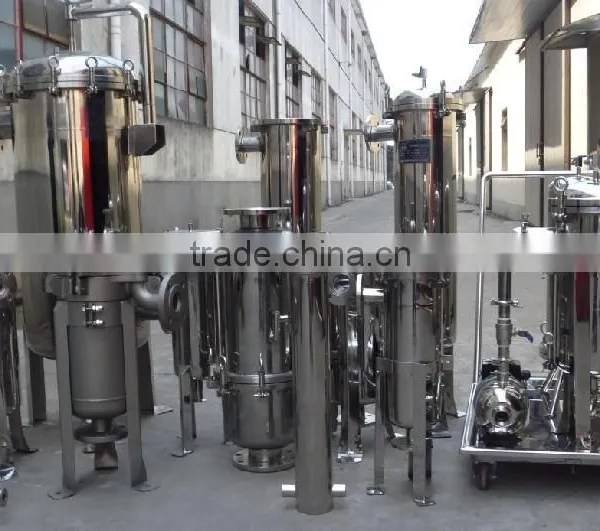

Bag Filter Housing
Product Description

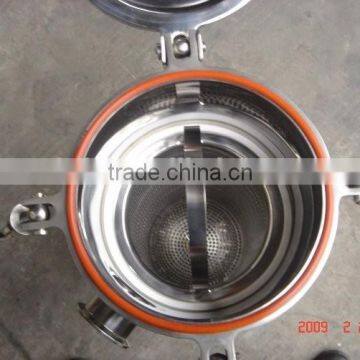

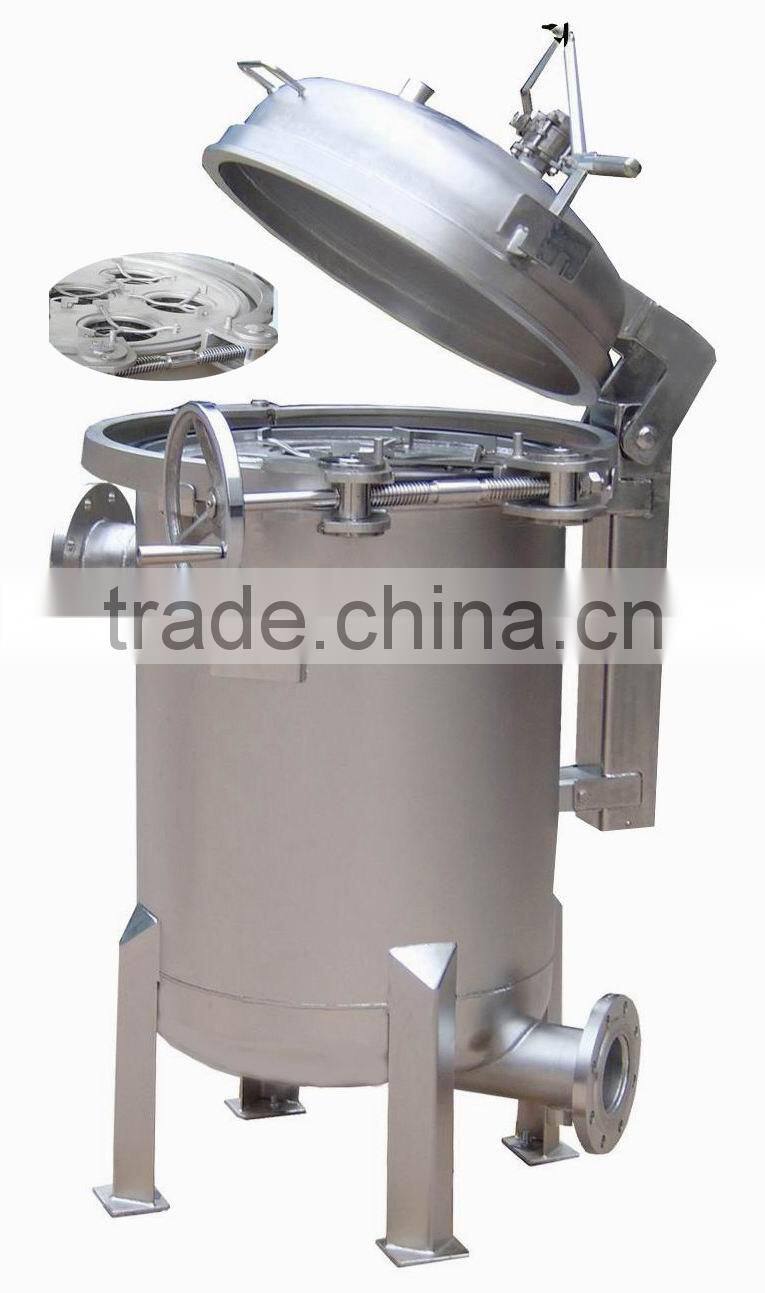

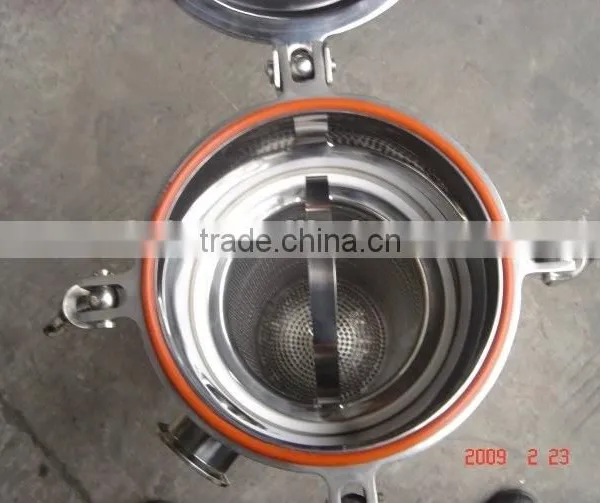

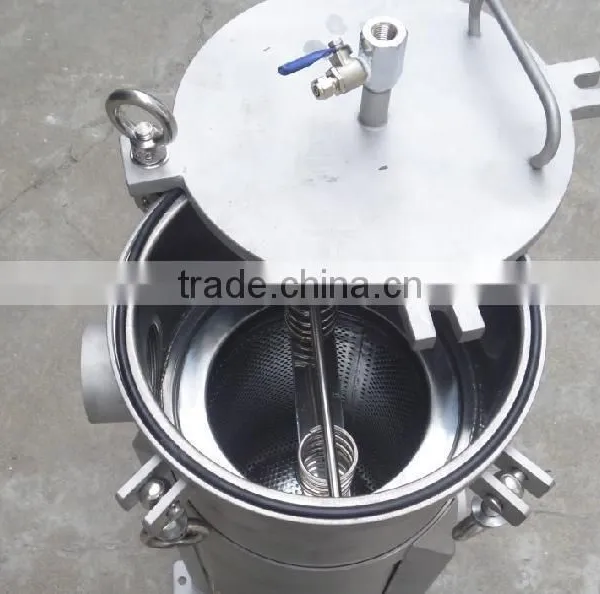

DF's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Technical specification
1.Material:SS304,SS316L
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag

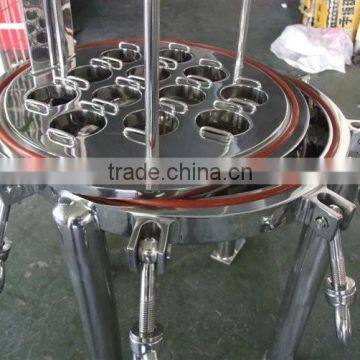

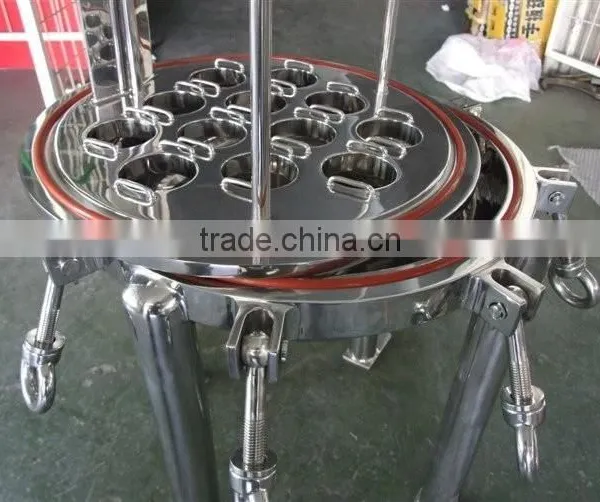

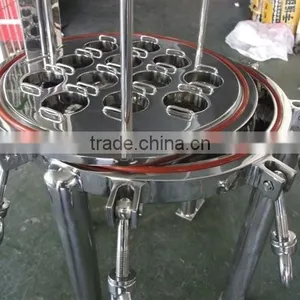

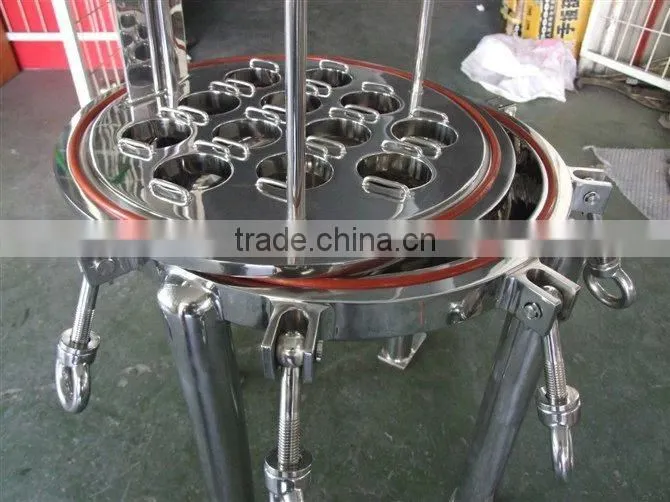

6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,
Electronic Industry and So On.
Technical Parameters
