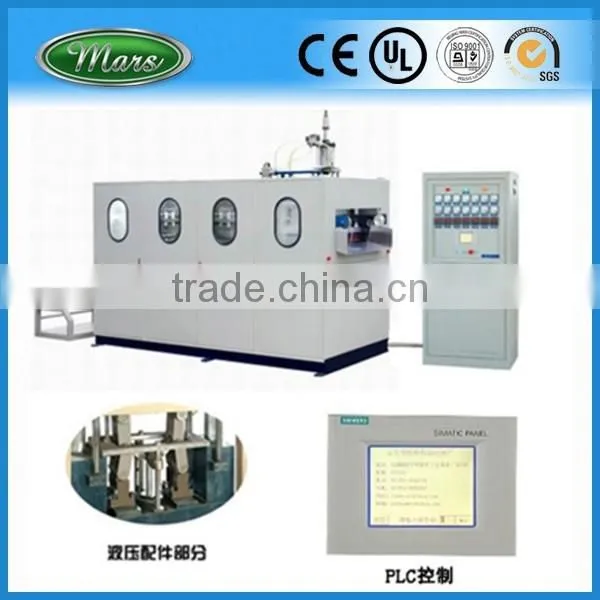

Plastic Cup Making Machine China
I.Parameters
| Parameter | MA-PC-660(Mode) |
MA-PC-700(Mode) |
MA-PC-720(Mode) |
| Available material | PP,PE,PET,HIPS,GPPS |
PP,PE,PET,HIPS,GPPS |
PP,PE,PET,HIPS,GPPS |
| Formed Area(mm) | 650×320 |
700×350 |
720×450 |
| Formed Depth(mm) | 120/180 |
120/180 |
120/180 |
| Formed Speed(times/min) | 20-35 |
20-35 |
20-35 |
Biggest Width Of Fiake Board |
660 |
700 |
720 |
| Thickness Of Flake Board | 0.3-2.0 |
0.3-2.0 |
0.3-2.0 |
power Of the whole machine(KW) |
≤45 |
≤50 |
≤55 |
Air Wastage (Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Water Wastage (m3/h) | ≤0.5 |
≤0.5 |
≤0.5 |
II.Function for Plastic Cup Making Machine China

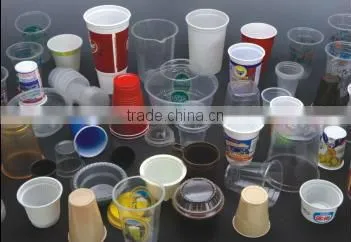

The machine is fit for producing PP, PE, PET, PS, HIPS plastic products, like milk cup, jelly cup, ice cream cup, one-off cup, instant noodle bowl, fast food box and food box, etc.
1) Stable operation
2) Low noise
3) Strong mold locking ability
4) High quality
5) Mainly consists of formed machine, material racks, material receiving machine and electrically controlled screen
6) Completely automatic
7) High production speed
8) Different products can be produced with different molds
9) Uses imported electric and pneumatic fittings under famous brands
10) Reliable quality
11) Long life span
12) Advanced and special design of molds
13) Compact structure of the whole machine
14) One mold has all the functions
15) Short process
16) Meets the national sanitary standards
III.Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider
Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2.Lubricating System: Taiwan Famous Automatic Oiling System;
3.Pneumatic System: Japan SMC;
4.Hydraulic System:Guangye hydraulic the pump and Taiwan Lianton hydraulic the electromagnetism valve.
