Plastic Machine For Cup
Application area:

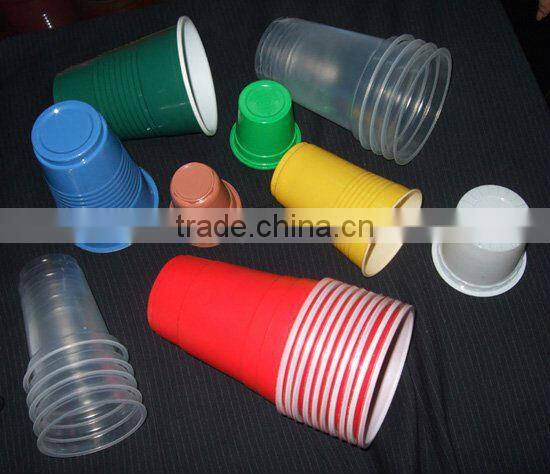

The machine produces plastic products like disposable plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, coffee
Plastic Cup Making Machine Technical Parameter:
Suitable Sheet: |
PP/PS/HIPS/PVC/PET |
Forming Area: |
650mm x 320 mm |
Forming Depth(Max) |
130mm |
Sheet thickness: |
0.3mm-2.0mm |
Sheet width(max): |
650mm |
Max. Sheet Roll of Diameter: |
800mm |
Forming Speed(max): |
≤35 times/min |
Adjustable Travel: |
100mm-350mm |
Oil Pump Motor: |
11kw, 6grades |
Plug Motor Power: |
4.4kw |
Feeding Motor Power: |
3.0kw |
Rewinding Motor Power: |
0.37kw |
Heating Power: |
60kw |
Rated Power: |
80kw |
Actual Power: |
55kw |
Compressed Air: |
About 0.6-0.8pa/1.6M3 |
Heating Type: |
Top + bottom IR Ceramic Heaters |
Temperature Control Module |
PID, K-type |
Type of Mould |
Multi cavity 1-4rows |
Cutting Type: |
In-mold cutting automatically |
Water Supply: |
About 0.5M3/H |
Overall Dimension(mm): |
L6000×W2000×H2700 |
Weight: |
4.5T |

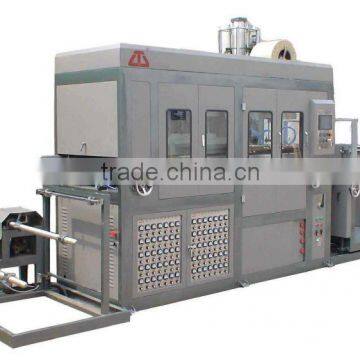

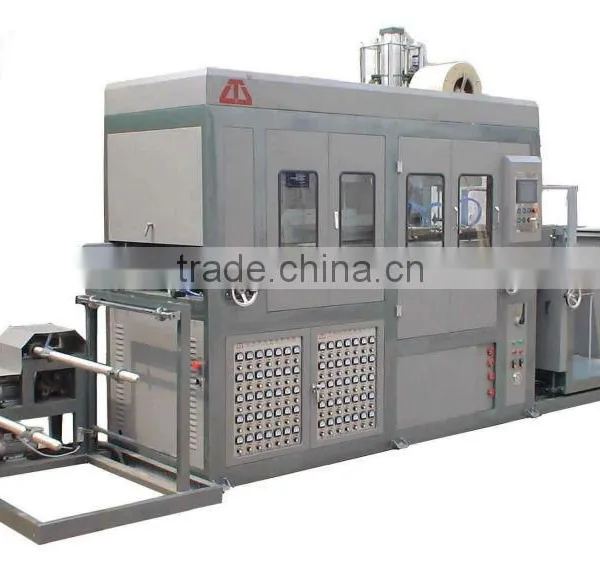

Plastic Cup Making Machine
