Home > Packaging & Printing > Packing Machinery > Filling Machine > Small Cup Filling Sealing Machine
US$ 11,000 - 12,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Other, Cup
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cup Flling and Sealing MachineUS$ 15,000 - 17,000MOQ: 1 Piece -
Cup Forming MachineUS$ 16,000 - 30,000MOQ: 1 Piece
-
Cup Packing and Sealing MachineUS$ 8,000 - 9,000MOQ: 1 Piece
-
Yoghurt Cup Piston Filling MachineUS$ 15,000 - 18,000MOQ: 1 Piece
-
Cup Sealing MachineUS$ 13,000 - 15,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Other, Cup
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220/380v
Power
1.2kw
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
BF-H4
Dimension(L*W*H)
2360 X 850 X 1550mm
Weight
700KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

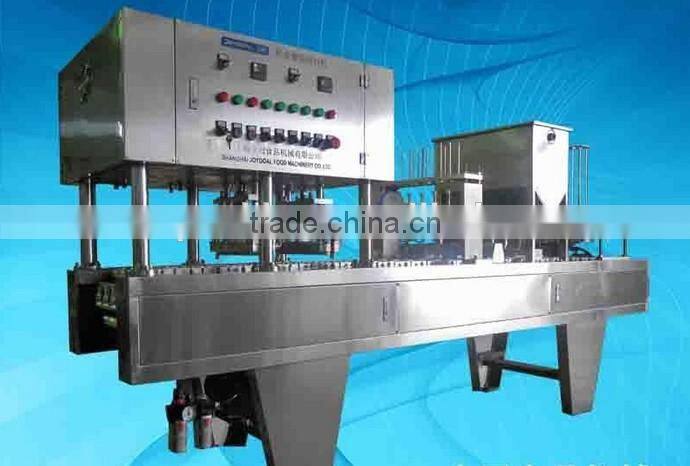

Small Filling Sealing Machine
Product Description
This machine adopts stainless steel manufacture, apply to all kinds of shapes of plastic cups liquid filling sealing of plastic cup. This series can be done automatically feeding, filling, sealing, trimming, date printing, ultraviolet radiation sterilization and automatic filling cup functions. In addition, it can be customized that according to your special requirements.
Characters for Cup Filling Sealing Machine :
1 The machine is suitable for the filling and sealing of jelly, pudding, drink, juice, milk, bean products, rice wine drink, jam, Guiling jelly, pickles, thick broad-bean sauce, etc.
2 This machine is made all by stainless and can fill and seal multi-cups at one time, high effectively, accuracy, quickly.
3 This machine adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
4 Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
5 This machine’s all components adopt international famous brand and the machine can adopt PLC system according to your requirements.
Technical standard for Cup Filling Sealing Machine :
Auto dropping cup→auto filling→UV sterilizing→printing date→auto putting film→auto sealing→cup out
Model for Cup Filling Sealing Machine :
Technical Specifications | ||
Type of Machine | : | Automatic cup fill seal & cut machine(Four CUP) |
Model No | : | BF-H4 |
Number of Cups | : | 4 Cups |
Power | : | 220V/50HZ 4kw |
Capacity | : | 60-64cups/min |
Filling Volume | : | 100-250ml |
Air Source | : | 0.6m^3/min |
Temperature | : | 0-200 |
Seal Material | : | PEPP PET/PE |
Dimension | : | 2360 X 850 X 1550 mm |
Weight | : | 700 kgs. |

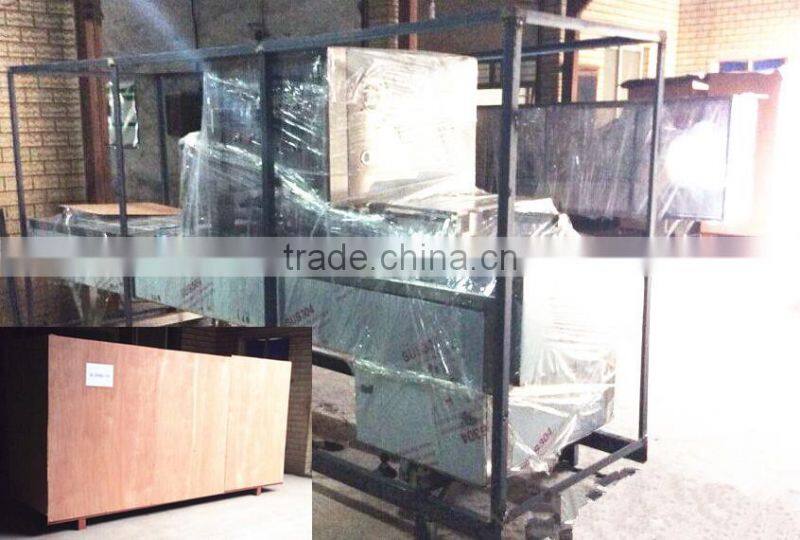

Packing:
