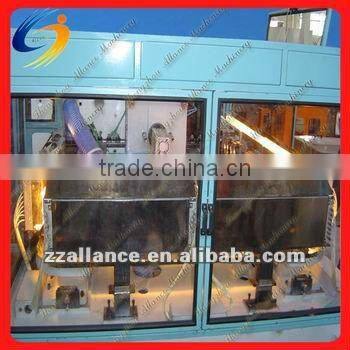

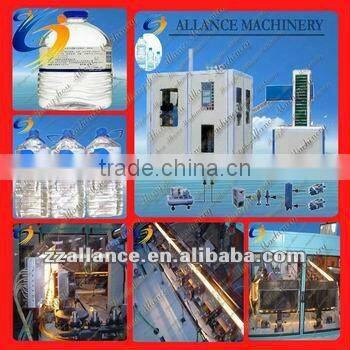

Hot selling PET bottle blowing machines for sale
Product features
1. Hot selling PET bottle blowing machines for sale
2. Automatic pre-form feeding

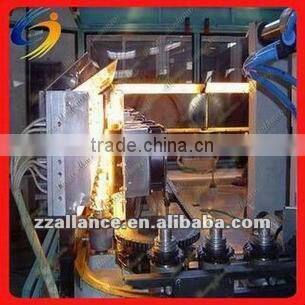

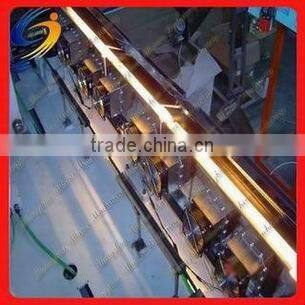

3. PET pre-form be heated evenly and thoroughly by infrared ray within oven heater
Detailed Description
1. The PET bottle blowing machines for sale is human and machine interface that is easily operated. There are single mould base, double moulds base, single mould head to six mould heads, single layer to six layers, multi-layer with liquid level line, mold inside logo, air-pressing water setting, automatic scraps collecting system, the daily output (8 hours) reaches approximately 6,000 to 24,000; it can produce 0.1-6L plastic hollow products.
2. The PET bottle blowing machines adopt the new type double bend arm and four pull rod-clamping structure (won the patent): Cross direction, Middle mould board is moved parallelly.
3. The distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
4. Seperated type air controlling system can be designed for avoiding waste pollution.
Main Technical Parameter | ||
Type |
Item |
Model: ALBM-0164(4 Cavity) |
Container |
Material Available |
PET, PC, PP or PE |
Bottle Volume (L) |
0.05~2.5 (4 Cavity) |
|
3~6 (2 Cavity) | ||
Theoretical Capacity (B/Hr.) |
6L--750; 2L--1900; 0.5L--2500; 0.1L--3000 |
|
Pre-form Length (mm) |
50~220 |
|
Max. Bottle Height (mm) |
350 |
|
Inner-Diameter of Pre-form (mm) |
15~180 |
|
Max. Bottle Diameter (mm) |
35~230 |
|
Molding |
Max. Mold-Plate Measuring (L*W) (mm) |
420*500 |
Max. Mold Thickness (mm) |
180~250 |
|
Clamping Force (KN) |
280 |
|
Mold Opening Stroke (mm) |
80~250 (Adjustable) |
|
Air Compressor |
H-Pressure Air Compressor |
≥0.60M3/3.0MPa*2Sets, 11Kw |
L-Pressure Air Compressor |
≥1.63M3/1.0MPa, 7.5Kw |
|
Dryer |
Air Dryer |
1.0M3/3.0MPa |
Blower Electricity |
Power (KW) |
25.5 |
Voltage/Frequency (V/Hz) |
380, 240, 110/50~60, 3Phase |
|
Security |
Auto-Emergency Alarm |
Security Inter-Locking Device |
Hot selling plastic bottle blow molding machine can apply for producing plastic bottles (PET,PE and PP) in all shapes, including wide-mouthed one, which bottles are originated from plastic pre-form and are suitable for different usages, such as in filled with mineral water, carbonated beverage, oil, pesticide, cosmetic, or filling in hot.
Any more question or inquiry about our products, please feel freely contact irene
