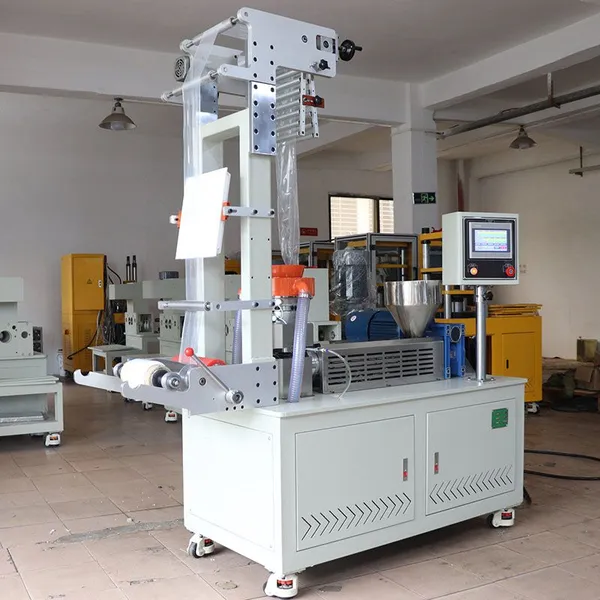

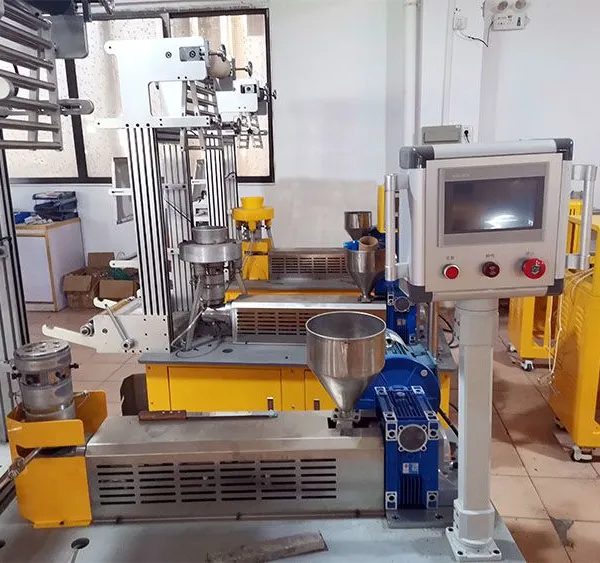

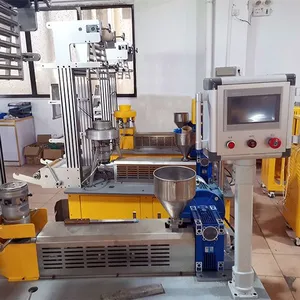

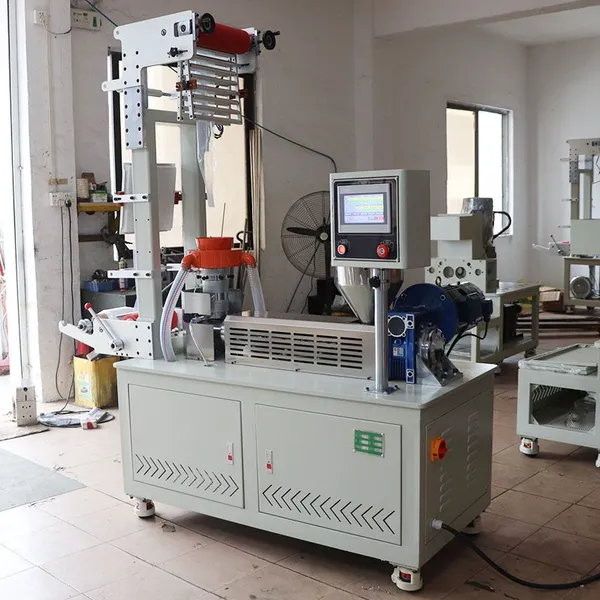

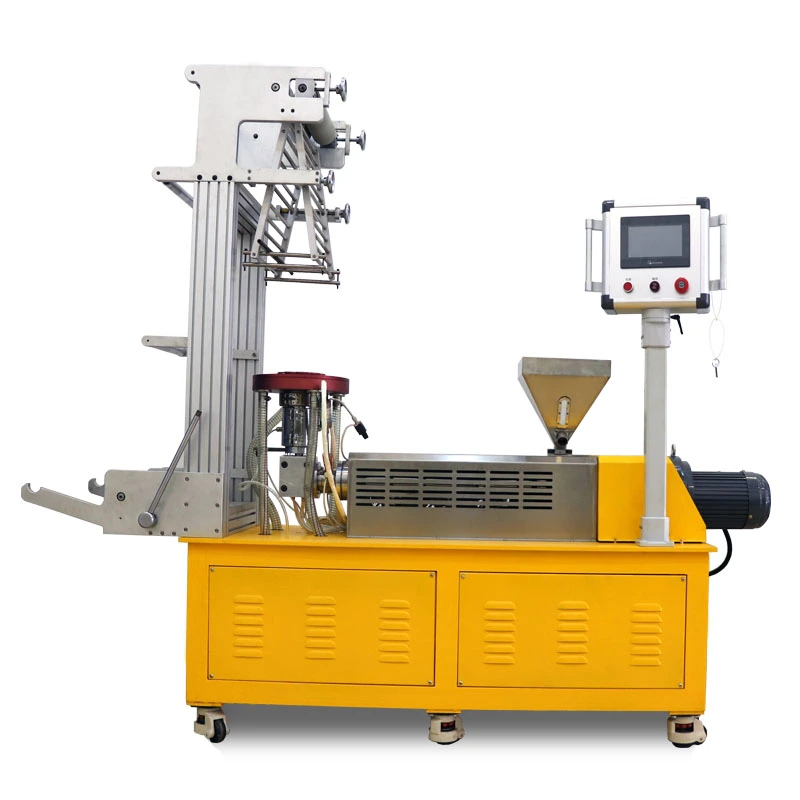

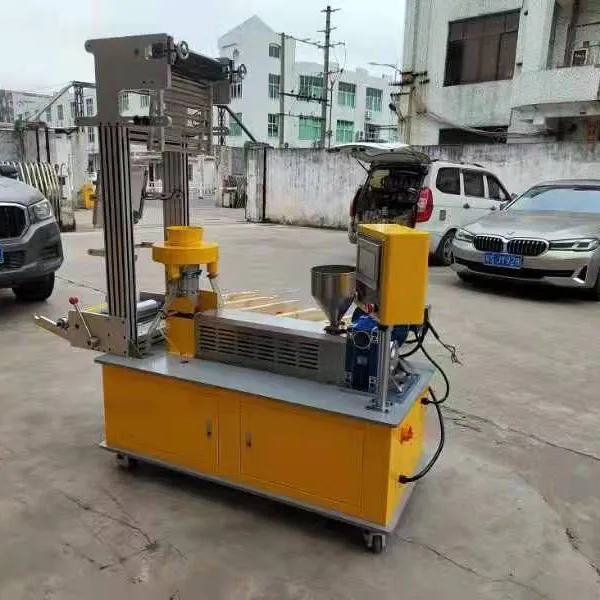

Small Plastic Film Blowing Machine, Lab Blown Film Equipment
Product Description
The program-controlled laboratory blown film extruder blown film means that the plastic melt is continuously extruded through the die under a certain temperature and a certain shearing force, and is inflated by compressed air, air ring cooling and frequency conversion traction. The process of obtaining a bi-fold plastic film. This Plastic Film Blowing Machine is mainly used to detect the blown film feasibility of polymer materials and the gel condition in the material, as well as the dispersion of colored dispersion, control mixture and extrudate.
Parameter
Single screw extruder | |
Screw diameter |
Ø 30 |
Length to diameter ratio |
1:30 |
Temperature |
Normal temperature~300 degrees |
Screw speed |
0-93rpm variable frequency speed regulation |
Heating power |
Barrel feeding section(Heating zone 1) 800W |
Machine barrel melting section( heating zone 2) 800W | |
Machine barrel melting section(heating zone 3) 800W | |
Barrel transfer section( heating zone 4) 1200W | |
Head mold section( Heating Zone 5) 1400W | |
Main motor |
2.2KW |
Reduction ratio |
1:15 |
Electric control system |
PLC programmable color touch screen, human-machine interface operation system, dynamic display and monitoring of extrusion process, adjustment of winding speed, and observation check the light switch, all processes are controllable |
Volume |
1880x700x1870 (W x D x H) mm |
Power supply |
3 Å, AC380V, 40A |
Weight |
635kg |
Blowing film tower auxiliary equipment: | |
Mold diameter |
Ø 30 |
Inflation gas |
Compressed air at 0~5bar |
Cooling gas |
blower flow rate 30L/min |
Traction roller size |
Ø 100 × L300mm |
Traction and winding speed |
0.5-14m/min, adjustable |
Adjustable film bending diameter |
60-150mm |
Traction motor |
180W |
Winding motor |
120W |
Fan |
0.37KW |
After-sales service commitment
(One year warranty, lifetime maintenance)
1) The new equipment provided by our company meets the national quality testing standards and can meet the production needs of customers. The product quality is stable and the after-sales service is convenient and fast. Provide detailed information and operation guides for after-sales technical support, and assume responsibility for after-sales service.
2) After the contract is signed, we will deliver the equipment to the user unit free of charge according to the date stipulated in the contract, and we will be responsible for the free technical installation of the installation, commissioning and use personnel, as well as the operation guide for the use of the Chinese manual and related equipment. Management training.
3) We will provide the original one-year full warranty and free on-site service (follow the national three guarantees) and 7*8 hours technical response service from the date of installation and commissioning of the supplied equipment.
4) If there is a serious quality problem, the products that affect the demander's use and cannot be repaired on the spot will be provided at any time according to the requirements of the purchaser (the performance is not lower than the original equipment).
5) The warranty period begins on the date of acceptance of the goods and acceptance.
6) We are responsible for the lifetime maintenance of the products we supply, and we guarantee that there are sufficient parts or accessories.
7) After the warranty period expires, if the main parts or accessories need to be replaced for repair, we will give the price concession with the consent of the purchaser. The discount rate is not lower than the preferential price of this bidding.
8) When the user requests for repair or assistance, we will reply within 3 hours, and within 72 hours (limited to Guangdong Province, other provinces except midway ride time) maintenance engineers arrive at the scene to solve the problem. Keep in touch with users at any time, communicate application status at any time, and be responsible for providing users with solutions to problems.
