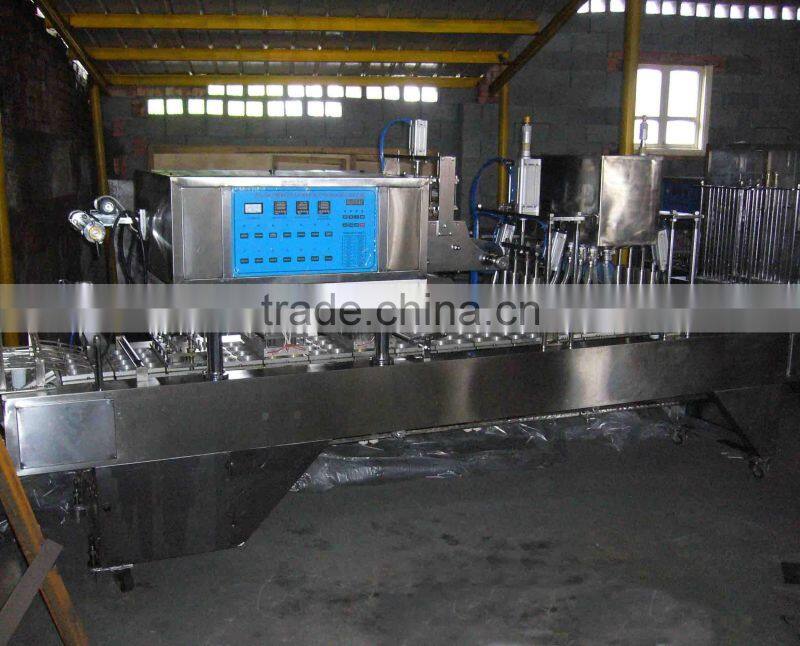

Sauce Cup Filling Machine

Sauce Cup Filling Machine

1. BF-H4
2. Product: SAUCE
3. Productivity: 4,800~6,000 Cups/Hour
4. Cup Diameter: depends on the customer
5. Cup Volume: depends on the customer
6. Power Supply: 3 phases, 50-60 Hz, 380V (Standare); Depends on the power you use, please confirm

1. Bottom Moulds: Anodized Aluminum Alloy
2. Main body is constructed with stainless steel (SUS#304) to meet sanitation standard
3. Air Consumption: 280 Liter/ min.
4. Machine Dimension (L x W x H): 3000 x 1000 x 1800 mm
5. Control Panel: Touching Screen
6. Automatic Dropping Cup System (Cups should meet the falling condition)

1. Automatic Filling System (Filling volume can be adjusted)
2. Piston Type: Piston made by stainless steel (SUS# 304)
3. Include a 100 L Storage Tank
4. Liquid level control refill systems (Customer should provide the refill pump)
5. Roll Film Storage Device
6. Automatic Sealing System

1. Automatic Correcting Film System
2. Automatic Cutting System
3. Automatic Out-Feeding System (Mechanical Cam Type)
4. Independent temperature controller for each mold
5. Temperature Controller: Made in Taiwan
6. Driving Gear and Chain: Made by Stainless Steel (SUS#304)

1. Springs and Screws: Made by Stainless Steel (SUS#304)
2. Pneumatic Parts: FESTO, made in Germany
3. Additional emergency stop switch for safety protection
