PET Bottle Blowing Machine
item |
BM-A4 |
|
|
Bottle type specification
|
cavity |
4 |
output (PCS/HR) |
3200-3500 |
|
Max. volume (L) |
2L |
|
Bottle mouth maximum overall diameter (mm) |
28-38mm |
|
Bottle biggest diameter |
100mm |
|
Bottle maximum height |
330mm |
|
|
Power specifications
|
Light tube quantity |
32pcs |
Light tube power |
1.25kw |
|
Maximum heating power |
40kw |
|
All electric machine installation |
43kw |
|
Actual consumption |
21.5kw |
|
|
Air pressure specification
|
Work pressure |
7-9kg/cm2 |
Low-pressure gas consumption |
1600Ltr/min |
|
Blow bottle pressure |
25-35kg/cm2 |
|
Higher -pressure gas consumption |
3000 Ltr/min |
|
|
Frozen water specification
|
Work pressure |
5-6 kg/cm2 |
Temperature range |
10C |
|
Consumption |
8000kcal/hr |
|
Frozen water flow |
88Ltr/min |
|
|
Machine specification
|
Size of the machine |
4.5x1.6x1.9 (m) |
Weight of the machine |
3.5ton |
Name |
Brand |
Original |
Blowing cylinder |
FESTO |
Germany |
Mould closing and opening cylinder |
FESTO |
Germany |
valve |
FESTO |
Germany |
PLC |
MITSUBISHI |
Japan |
HMI SCRENN |
WINVIEW 506L |
Taiwan |
Switch |
OMRON |
Japan |
Features
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.
After sales service
1) Free charge for mould design
2) Free charge to provide spare parts for one year
3) Our engneer with to client to install and debugging machine,and instruct buyer how to operate machine.
4) We will provide spare parts for free within one year
5) Our machine including long-range control,if machine can not working well,the client can open the long-range control,our engineer will instruct buyer how to repair and maintenance the machine.

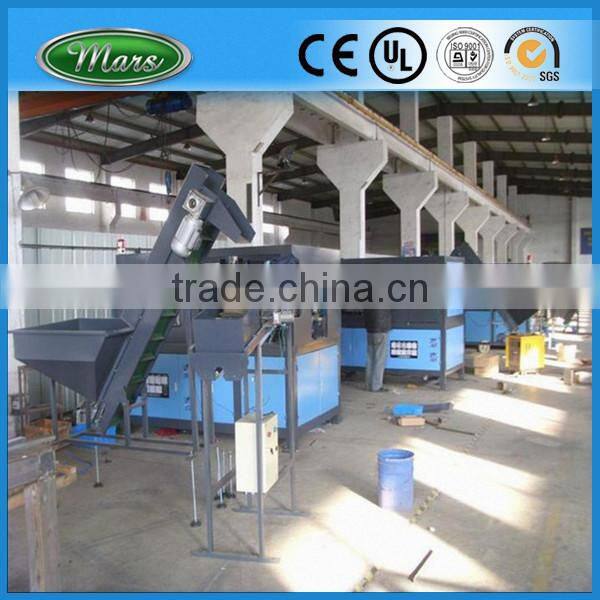

Product show
