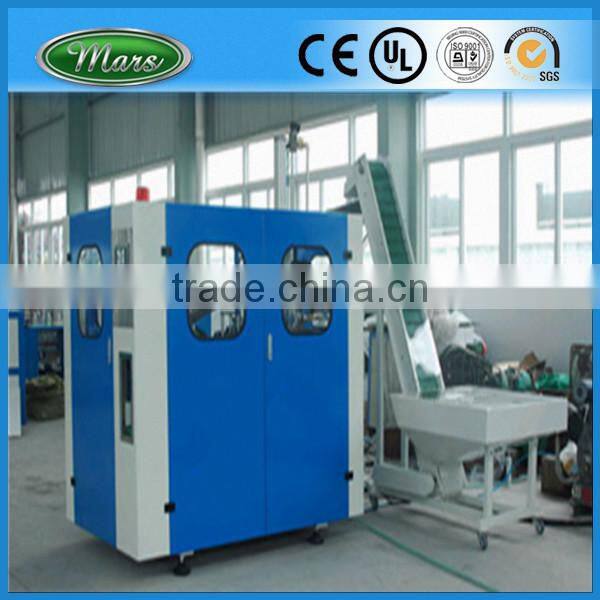

Water Bottle Blowing Machine
4000 bph PET preform blowing machine for water bottle
1.Size:250ml-200ml
2.Speed:4000bph@500ml
3.CE,ISO
Newly designed and reformed on previous experiences of our manufacture.
Specification:
JST-A4 automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from200-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
a. working power of the controller:100-240VAC
b. working power of the magnetism valve of the bottle blowing machine: 220VAC or 24VDC
c.Special voltage ,we can make it according to your standard .
Technical parameter
TYPE |
ITEM |
UNIT |
BM-A4 technical data |
Container |
Product material |
/ |
PET |
Container volume |
L |
0.05-2.0 |
|
Theoretic output |
Psc/hr |
4000 |
|
Preform length |
MM |
50-200 |
|
Max height of bottle |
MM |
320 |
|
Molding |
Preform inner diameter |
mm |
15-60 |
Bottle diameter |
mm |
35-110 |
|
Max mold plate dimension (L × W) |
mm |
380 × 460 |
|
Max mold thickness |
mm |
200 |
|
Air compressor |
High pressure compressor |
M3/Mpa |
1.2/30 × 3set |
Locking force |
KN |
170 |
|
Mold opening stroke (adjustable) |
mm |
200 |
|
Low pressure compressor |
M3/Mpa |
2.0/10 × 1sets |
|
Air dryer |
M3/Mpa |
2.0/30 × 1sets |
|
Main machine electricity |
Power |
KW |
30 |
Voltage / frequency |
V/Hz |
380/50hz |
|
Machine size and weight |
Main machine (L × W × H) |
M |
4.2 × 1.8 × 2.0 |
Main machine weight |
T |
4.2 |
|
Conveyor (L × W × H) |
M |
1.4 × 1.1 × 1.85 |
|
Conveyor weight |
T |
0. |
|
High pressure compressor (L × W × H) |
Kg |
1.90 × 0.75 × 1.50 × 3sets |
|
Low pressure compressor (L × W × H) |
M |
185 × 0.75 × 1.50 |
|
High pressure air reservoir tank (D × H) |
M |
0.70 × .25/3.0 |
|
Air dryer (L × W × H) |
M |
0.85 × 0.50 × 0.95 |
|
Air filters |
Kg |
10 × 5pc |
|
Cooling water: cooling water recycling system can be used with its power of 8~10 liter per minute and 2~3 kilos water pressure | |||
Total power: 50KW | |||
Safety |
Auto emergency alarm |
Safety inter-locking device |
|
Product show
