Plastic Bottle Blowing Machine
- 300 Set / Sets per Month
- Shanghai
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Stretch Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | Mars | Model Number: | BM-A2 | Voltage: | 380V |
Power(W): | 28KW | Certification: | CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Plastic Bottle Blowing Machine
Machine Features--- pet bottle blowing machine
1 Fully Automatic Molding Machine perform input and ready bottle output system.
2.The Fully Automatic Molding Machine adopts overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
3. Fully Automatic Molding Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
4 The structure of Fully Automatic Molding Machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model. Fully Automatic Molding Machine
5 Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
6 Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose. Fully Automatic Molding Machine
7 Storing more than 7 kinds specification for making bottle.
8 Adopt latest international air pneumatic. Fully Automatic Molding Machine
9 In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
Technical Details--- pet bottle blowing machine
Model | BM-A1 | BM-A2 | BM-A4 | BM-A6 |
Clamping force | 150KN | 180KN | 370KN | 565KN |
Clamping stroke | 120-175MM | 120-175MM | 120-175MM | 80-130MM |
Number of cavities | 1Cavity | 2Cavity | 4Cavity | 6Cavity |
Theoretical output | 1000BPH | 2000BPH | 4000BPH | 5500BPH |
Max.mould thickness | 250MM | 250MM | 250MM | 300MM |
Total power | 20KW | 28KW | 50KW | 70KW |
ntainer volume | 6L | 1.5L | 1.5L | 1.5L |
Neck diameter range | 16-38mm | 16-38mm | 16-38mm | 16-38mm |
ntainer diameter | 110mm | 110mm | 110mm | 110mm |
ntainer height | 380mm | 380mm | 380mm | 360mm |

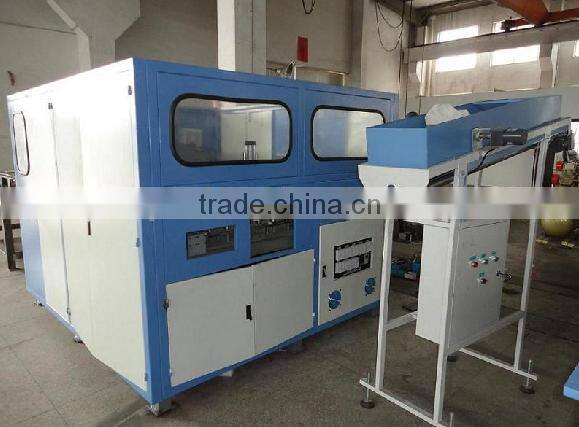

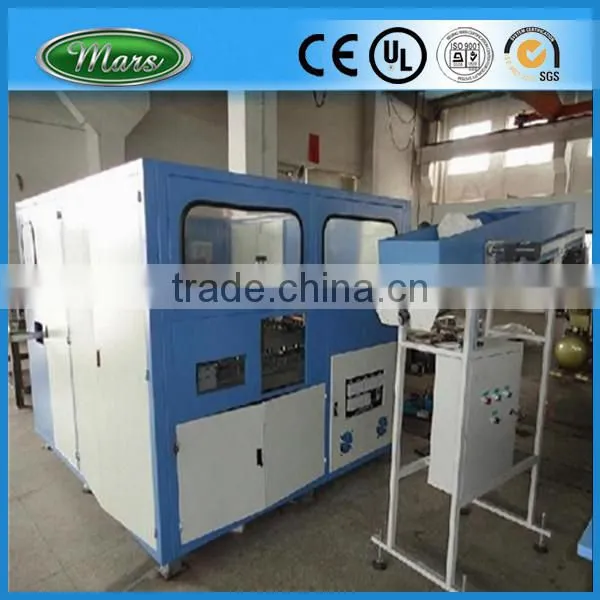

Photos Show--- pet bottle blowing machine
