Extrusion Blow Molding Machines
US$ 25,000 - 30,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangahai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Bottle
Plastic Processed
PP
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
EBM-50
Voltage
380V
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

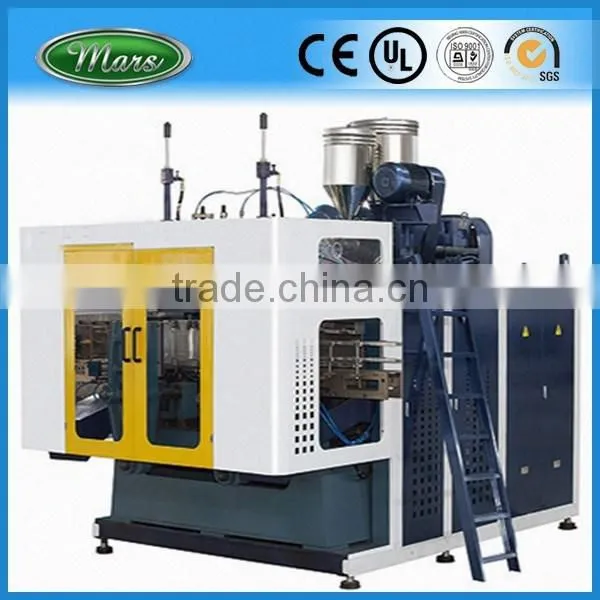

Extrusion Blow Molding Machines
1. Two station, single layer, 55mm screw, 7.5kw motor, PE / PP etc.
2. Power supply: 380VAC, 50Hz (depending on client's county ).
3. Different Die Head for Choosing:
One die head (500ml-1L): 1L around 400 bottles per hour
Two die head (250ml-500ml): 500ml around 1000 bottles per hour
Three die head( under 250ml):250ml around 2000 bottles per hour
4. Center Distance: Two Die head: 120mm, Three Die head: 80mm
5. Deflashing system: Neck/ handle/ bottom deflashing.Fully automatic.
6. MOOG 100 Points Parison Controller (Optional)
This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.
| SM Model No. | Unit | LXB45 | LXB45-2 | LXB45-2Y | LXB55 | LXB55-2 | LXB65 | LXB65-2 | LXB75 | LXB75-2 |
| Raw materials | PE/PVC | PE/PVC | PE/PVC | PE/PVC | PE/PVC | PE/PVC | PE/PVC | PE/PVC | PE/PVC | |
| Lord screw diameter | mm | 45 | 45 | 45 | 55 | 55 | 65 | 65 | 75 | 75 |
| Lord screw proportion | L/D | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Frequency conversion motor | HP | 10 | 10 | 10 | 15 | 15 | 20 | 20 | 25 | 25 |
| Screw speed | rpm | 15~85/15~55 | 15~85/15~55 | 15~85/15~55 | 20~80/15~55 | 20~80/15~55 | 20~80/20~50 | 20~80/20~50 | 20~75/20~50 | 20~75/20~50 |
| Heating points | Zone | 6 | 6 | 6 | 7 | 7 | 7 | 7 | 7 | 7 |
| Heating capacity | KW | 6 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 |
| Extruding quantity | kg/hr | 28/22 | 28/22 | 28/22 | 40/32 | 40/32 | 53/42 | 53/42 | 65/52 | 65/52 |
| Mould mouth foreign | mm | 55 | 55 | 55 | 55 | 55 | 63-135 | 63-135 | 73-145 | 73-145 |
| Open closed modules limit | mm | 90~290/150~350 | 80~230/110~260 | 120~270 | 120~320 | 120~320 | 170~420 | 170~420 | 230~530 | 230-530 |
| RongMo width X length | mm | 200x600 | 150x320/240x165 | 150x320/240x165 | 140x600/250X300 | 140x600/250X300 | 190x700/300X350 | 190x700/300X350 | 240x800/350X400 | 240x800/350X400 |
| Every little temporal loops | Time / hr | 1200 | 950X2 | 750X2 | 1000 | 850 | 950 | 800 | 900 | 700 |
| Pump drive horsepower | HP | / | / | 5 | 10 | 10 | 10 | 10 | 10 | 10 |
| Clamping pressure | Ton | 1.6 | 0.6 | 2 | 5 | 5 | 6 | 6 | 10 | 10 |
| Tank has a capacity | Gallon | / | / | 55 | 75 | 75 | 85 | 85 | 100 | 100 |
| Air pressure | Kg/cm2 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 |
| Compressed air consumption | HP | 5 | 5 | 3 | 3 | 3 | 3 | 3 | 5 | 5 |
| Product capacity | CC | 1000 | 500 | 500~2500 | 500~1000 | 2000~4000 | 500~2000 | 2000~6000 | 1000~4000 | |
| Total power | kw/h | 18/20 | 18/20 | 18/20 | 26/29 | 27/30 | 39/42 | 42/45 | 45/57 | 57/60 |
| Machinery net weight | kg | 1000 | 1200 | 1500 | 4000 | 4100 | 4800 | 4900 | 5600 | 5700 |
| Packing gross | kg | 1400 | 1600 | 1900 | 4800 | 4900 | 5600 | 5700 | 6400 | 6500 |
| Mechanical sizes | m | 2.2X1.3X1.9 | 2.2X1.3X1.9 | 2.2X1.3X1.9 | 2.6X1.6X1.9 | 2.6X1.8X1.9 | 2.8X1.7X2.2 | 2.8X1.9X2.2 | 3.0X1.8X2.5 | 3.0X2.0X2.5 |
| Mechanical loading capacity | m | 2.2X1.3X1.9 | 2.2X1.3X1.9 | 2.2X1.3X1.9 | 2.6X1.6X1.9 | 2.6X1.8X1.9 | 2.8X1.7X2.2 | 2.8X1.9X2.2 | 3.0X1.8X2.5 | 3.0X2.0X2.5 |
