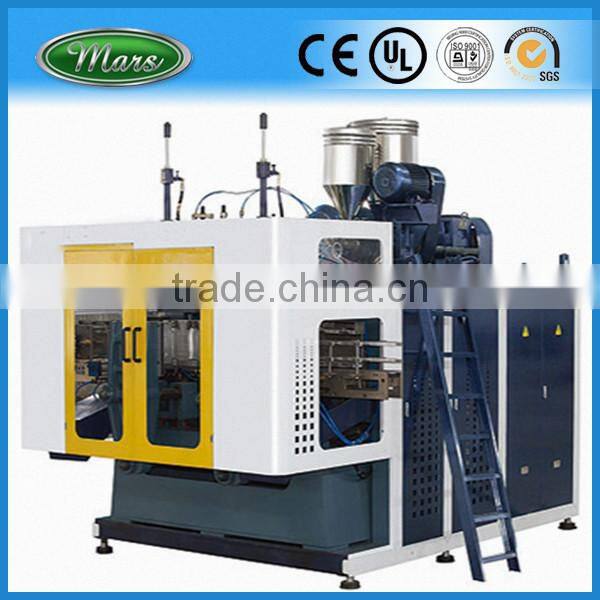

Hdpe Extrusion Blow Molding
Specifications
| Units | KAL60series |
Material | PE.PP.PVC.PA.... | |
Max container capacity | L | 5 |
Number of die | set | 1.2.3.4 |
Output(Dry Cycle) | Pc/hr | 1100 |
Machine dimension(L×W×H) | M | 3.0×1.7×2.5 |
Total weight | ton | 5.8 |
Clamping unit | ||
Clamping force | KN | 65 |
Platen opening stroke | mm | 164-524 |
Platen size | mm | 320×380 |
Max mould size(W×H) | mm | 380×390 |
Mould thickness | mm | 153-300 |
Power | ||
Max drive | KW | 26 |
Total power | KW | 32.5 |
Fan power for screw | KW | 0.14×3 |
Air pressure | Mpa | 0.6 |
Air consumption | m³/min | 0.5 |
Average energy consumption | KW | 17 |
Extruder unit | ||
Screw diameter | mm | 60 |
Screw L/D ratio | L/D | 24 |
Plasticizing capacity | Kg/hr | 70 |
Number of heating zone | zone | 3 |
Extruder heating power | KW | 6.5 |
Extruder driving power | KW | 11 |
Die-head | ||
Number of heating zone | Zone | 3 |
Power of die heating | KW | 2.5 |
Max die pin diameter | mm | 140 |
Center distance of double die | mm | 150/160 |
Center distance of tri-die | mm | 110 |
Center distance of tetra-die | mm | 80 |
Basic Equipment
Clamping system | Single translation+High-percision guide+Large arm cylinder axle |
Extruder unit | Hard gear box+Inverter |
Die system | Control-incoming die with special steel |
Hydraulic system | Hydraulic valve,Seal parts and Proportional control |
Control system | Import PLC+Human-machine+PLC automatic temperature control model |
Technical characteristic :
PLC+touch screen, making the operation easy, automatic malfunction alarm with selfdiagnosis, making the malfunction clear at a glance.
Center input die head, eliminating the knit line completely and making it easy to change the material and color.
Double linear rolling motion guider in moving, opening and closing mold, making the clamping force equally distributed, so the cut is smoother.
Control the hydraulic system with imported proportional valve, ensuring The action steasy, accurate and energy saving.
High speed and efficient plasticizing system, mixing well and ensuring the produce purity.
product show
