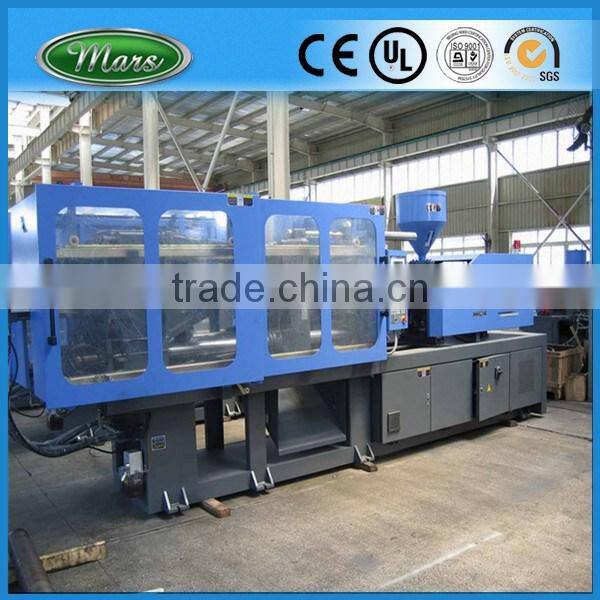

Factory Moulding Injection Plastic Machine
It adopts world famous brand hydraulic part and electric parts, uses intelligence controlling system, high efficient servo motor system and other environment protection and energy saving technic. All these methods ensure our injection machines tMars Packing Ma Factory Moulding Injection Plastic Machine chinery injection, clamping, hydraulic pressure, electric controlling parts which is designed by our professional technical engineers, with our carefully manufacture and assemble already enhance plasticizing system, so that the mould opening and clamping is more stable and quick. This machine o be suitable for market, with high competitive cost performance, with advantages of high efficiency and high speed.
Injection Machine has following features:
1) Double cylinder balancing injecting
2) High-performance, low-noise oil pump
3 High-torque oil-motor pre-plasticizing
4) Multi-step pressure and speed adjusting
5) Five-pivot double-toggle mold locking computer-control with Chinese or English
6) Oil-motor driving gear mold height adjusting
7) High-precision position transducer
8) Storage-type grease automatic lubricating system
9) Digital memory for mold group
10) Pressure and flow whole-proportion running
11) CE certificate Professional: ISO certificate
12) Packaging & Delivery: wooden cases ; 2-3 months
|
Item
|
Model
|
Unit
|
TWX3850 |
|
Injection Unit
|
Screw diameter |
mm |
65 |
Screw L/D ratio |
L/D |
16.2 |
|
Injection volume |
cm3 |
750 |
|
Injection weight |
g |
675 |
|
Injection pressure |
Mpa |
121 |
|
|
Clamping Unit
|
Clamping force |
KN |
2400 |
Opening stroke |
mm |
475 |
|
Space between tie-bars |
mm |
520×520 |
|
Max. mould height |
mm |
480 |
|
Min. mould height |
mm |
220 |
|
Ejector stroke |
mm |
100 |
|
Hydraulic ejection |
KN |
70 |
|
|
General
|
Pump pressure |
Mpa |
16 |
Motor power |
kw |
22 |
|
Heater power |
kw |
12.7 |
|
Dimensions(L×W×H) |
m |
5.5×1.6×2.1 |
|
Machine weight(approx) |
t |
7.1 |
Product show
