Extrusion Mold Machine
- Shangahai
- Money Gram
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PP | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Mars | Model Number | TCY45-J2-A1 | |
| Dimension(L*W*H) | 2650*1765*1800 | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Extrusion Blow Molding Machine
1. Adopt automatic design. The energy consumption is 40% less than hydro-dynamically operated, with no pollution of oil leaking.
2. The design of accessory and component is deft and speed in performance.
3. PLC control the action routine.
4. Operated easily. It is suitable for the hollow product with in 5000ml.
5. Two extruders can be working together acoording to the customers demand, blowing product with liquid level line.
6.Introducing advanced technology form Germany, Italy, Japan etc.
Model | Unit | TCY45-J2-A1 | TCY45-J2-A2 | TCY45-J2-A3 | |
Screw Diameter | mm | 45 | 45 | 45 |
|
Extrusion Capacity | kg/h | 40 | 40 | 40 |
|
Dry Cycle | s | 6 | 6 | 6 |
|
Screw Diameter | L/D | 26:1 | 26:1 | 26:1 |
|
Mold Center Distance | mm |
| 100 | 70 |
|
Screw Rotating Speed | R/min | 10-75 | 10-75 | 10-75 |
|
Mold Stroke | mm | 120-300 | 120-300 | 120-300 |
|
Max Mold Dimension | mm | 260×280 | 260×280 | 260×280 |
|
Length of Mold | mm | 50-180 | 50-180 | 50-180 |
|
Drive Motor Capacity | kw | 7.5 | 7.5 | 7.5 |
|
Hydraulic Pump | kw | 5.5 | 5.5 | 5.5 |
|
Number of Heaters |
| 5 | 6 | 8 |
|
Heating Capacity | kw | 6 | 7.2 | 9.6 |
|
A | 27 | 32.7 | 43.6 |
| |
Clamping Force | T | 3 | 3 | 3 |
|
Weight of Product | G | 5-60 | 5-30 | 5-20 |
|
Max. Product Capacity | L | 1000 | 500 | 300 |
|
Total Electric Power | kw | 19 | 20.2 | 22.6 |
|
Weight | kg | 1450 | 1450 | 1460 |
|
Dimension | L×W×H(mm) | 2650×1765×1800 | 2650×1765×1800 | 2650×1765×1800 |
|
Air Pressure | kg/cm | 6-8 | 6-8 | 6-8 |
|
Air Consumption | m³/min | 0.4 | 0.5 | 0.5 |
|
Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
|
Cooling WaterConsumption | L/min | 30 | 30 | 30 |
|

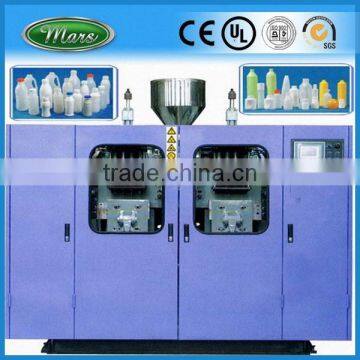

Product show
