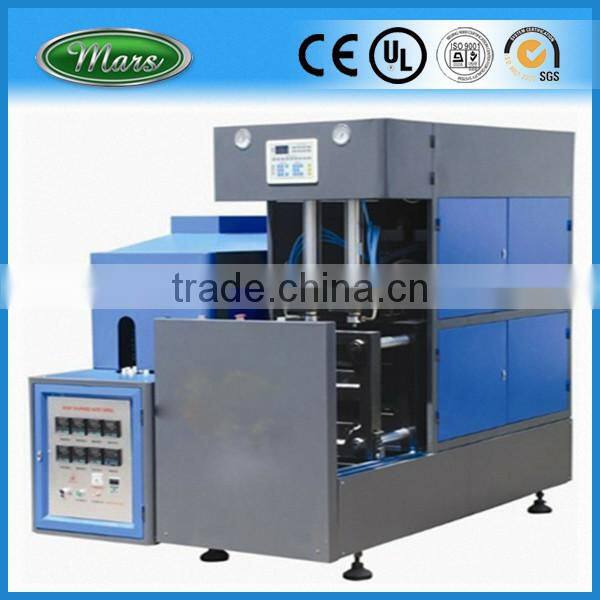

Help Center5 Liters Bottle Blow Machine
Related Products
-
5 Gallon Blowing Bottle MouldUS$ 16,000 - 40,000MOQ: 1 Set -
5 Gallon Strech Blowing Molding MchineUS$ 9,000 - 11,000MOQ: 1 Set
-
Extrusion Machine For PolyethyleneNegotiableMOQ: 1 Piece
-
Extrusion Mold MachineUS$ 20,000 - 30,000MOQ: 1 Piece
-
Factory Moulding Injection Plastic MachineUS$ 35,000 - 37,000MOQ: 1 Set
Automatic Blow Moulding Machine
1).BLOW MOULDING MACHINE
2).max capacity: 5L 3).good clamping system 4).high efficiency 5).good extrusion system
Technical parameters
SPECIFICATIONS | UNITS | Data |
Max container capacity | L | 5 |
Number of die heads | Set | 1,2,3,4 |
Out put ( dry cycle ) | Pc/hour | 1000 |
Machine dimension (L*W*H) | M | 3.1*1.8*2.6 |
Total weight | Ton | 4.5 |
CLAMPING UNIT | ||
Clamping force | KN | 68 |
Platen opening stroke | mm | 200-500 |
Platen size | mm | 330*370 |
Move mold stroke | mm | 420 |
Mold thickness | mm | 205 |
POWER | ||
Motor power of oil pump | KW | 11/15 |
Max pressure | Mpa | 12 |
Air pressure | Mpa | 0.7 |
Air consumption | M3/min | 0.6 |
Average energy consumption | KW | 17 |
EXTRDER UNIT | ||
Screw diameter | mm | 65 |
Screw L/D ratio | L/D | 24 |
Plasticizing capacity | Kg/hour | 70 |
Number of heating zone | Zone | 3 |
Extruder heating power | KW | 13.8 |
Extruder driving power | KW | 15 |
DIE HEAD | ||
Number of heating zone | Zone | 3 |
Power of die heating | KW | 5.7 |
Max die pin diameter | mm | 135 |
Center distance of double die | mm | 160 |
Product show
