Water Bottle Mould Machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Mars | Model Number | BM-S2 | |
| Voltage | 220V | Power(W) | 30KW | |
| Dimension(L*W*H) | 2.25x1.6x1.7M | Weight | 2.5ton | |
| Certification | ISO CE | Warranty | 1Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

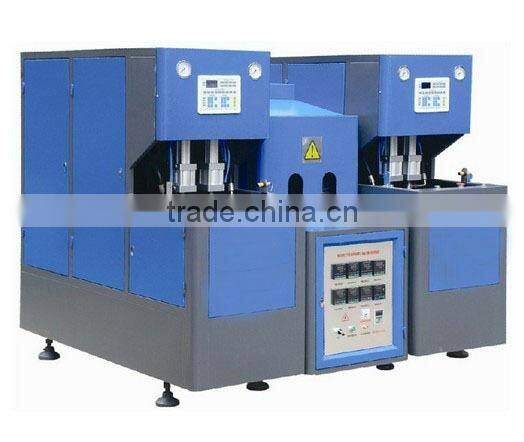

Water Bottle Mould Machine
500ml-1000ml Automatic Water Bottle Moulding Machine

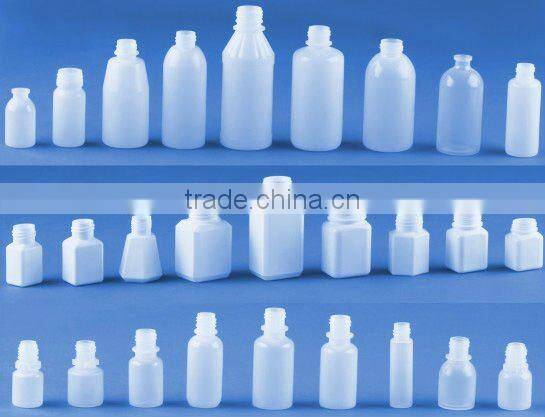

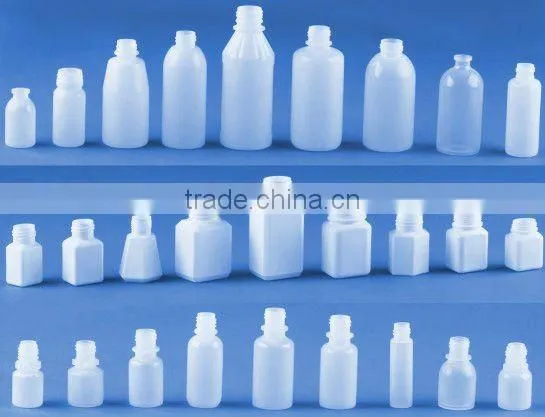

Our full automatic Blowing Plastic Bottle Moulding Machine is suitable for producing PET plastic containers and bottles in all shapes. They are widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc
Technical specification-----Water Bottle Moulding Machine
Item | BM-S2 | |
Bottle type specification | Cavity | 2 |
Theory output | 2400-2700 | |
Max.volume | 1L | |
Bottle mouth maximum overall diameter | 80mm | |
Bottle biggest diameter | 100mm | |
Bottle maximum height | 330mm | |
Power specifications | Light tube quantity | 32pcs |
Maximum heating power | 24KW | |
All electric machine installation | 27KW | |
Actual consumption | 8.1KW | |
Air pressure specification | Work pressure | 7-9kg/cm2 |
Low-pressure gas consumption | 1000L/min | |
Blow bottle pressure | 25-35kg/cm2 | |
Higher -pressure gas consumption | 1500Ltr/min | |
Forzen water specification | Work pressure | 5-6 kg/cm2 |
Temperature range | 10°C | |
Consumption | 5000kcal/hr | |
Forzen water flow | 30L/min | |
Machine specification | Size of the machine | 2.25x1.6x1.7 |
Weight of the machine | 2.5ton | |
Our advantage----Water Bottle Moulding Machine
1.High safety. high speed with high efficiency.
2.Manual saving, one man is enough for operation the machine.
3.Stable performing with easy maintaining.
4.Imported PLC controlling and man-machine interface computer.
5.Japan Omron inspection sensor.
6.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
7.Power saving design that can increase your profits.
8.Segregate type air controlling system, which is designed for avoiding waste pollution.
9. Perfet after-sale service. We can offer you spare parts for free at the first year.
