Home > Health & Medicine > Medical Equipment > Disinfect Equipment & Sterilizer > UHT For 5 Tons

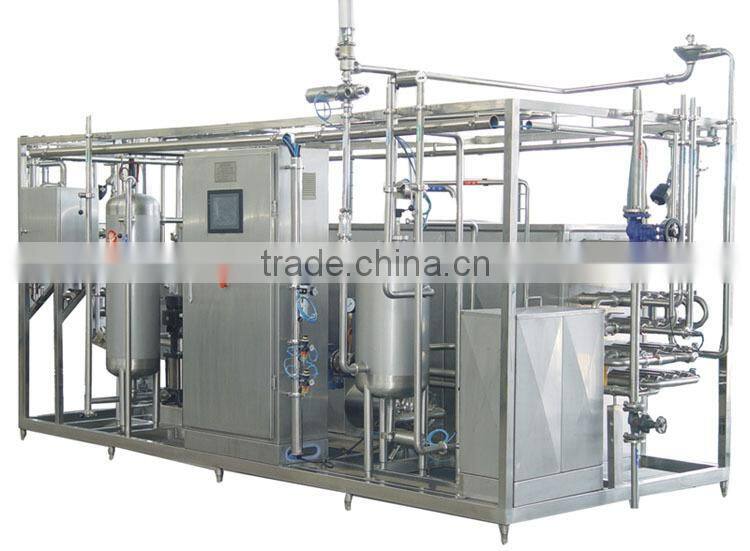

UHT For 5 Tons

Name: UHT For 5 Tons
Brand: Mars
SKU: 141355358
Availability: InStock

Zhangjiagang Mars Packing Machinery Co., Ltd.

US$ 15,000 - 16,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Mars

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Mars

Model Number MA-UHT-5

Processing Types Milk

Voltage 220v 380v

Power(W) 7kw

Weight 2900kg

Dimension(L*W*H) 4.5x2.0x2.0m

Certification CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

UHT For 5 Tons

Usages of Tube Sterilizer

It is widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.

Technical Parameters of Tube Sterilizer

Process parameters: 5°C→65°C homogenizer →95°C(30S)→140°C(4S)→25°C

Chilled water: 1:1 (≤2°C spare) Cooling water: 1:1(30°C spare)

Main Parameter for UHT For 5 Tons

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Material	Steam	Medium
MA-UHT-1	1	40	6.0	4.0	3.3×1.6×1.8	1960	25	DN25	25
MA-UHT- 1.5	1.5	60	6.0	4.0	3.3×1.6×1.8	1960	25	DN25	25
MA-UHT- 2	2	80	6.0	6.0	3.5×1.8×2.0	2160	38	DN25	38
MA-UHT- 3	3	120	6.0	6.0	4.5×1.8×2.0	2420	38	DN25	38
MA-UHT- 4	4	160	6.0	7.0	4.5×2.0×2.0	2570	38	DN32	38
MA-UHT- 5	5	200	6.0	7.0	4.5×2.0×2.0	2940	38	DN32	38
MA-UHT- 6	6	240	6.0	7.0	4.5×2.0×2.2	3300	51	DN40	51
MA-UHT- 8	8	320	6.0	11.0	6.5×2.0×2.2	3700	51	DN50	51
MA-UHT- 10	10	400	6.0	11.0	6.5×2.0×2.2	4200	51	DN50	51

Notes for UHT For 5 Tons:

1. the parameters in the chart are reference( in kind prevail), if the customer requires otherwise, please put forward.

cess parameters that need provided:material properties, sterilization process, specific requirements, etc.

3. auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

Main Configuration of Tube Sterilizer

This unit is mainly composed of material system, high temperature hot water system, degassing system (optional), high pressure homogenization system(optional),CIP system, self-sterilizing aseptic system(optional) and control system and other system components.
