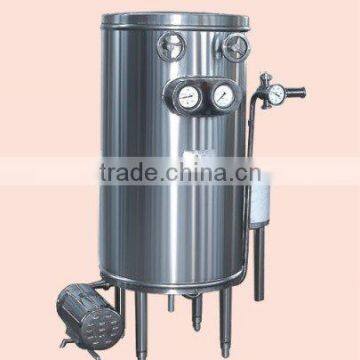

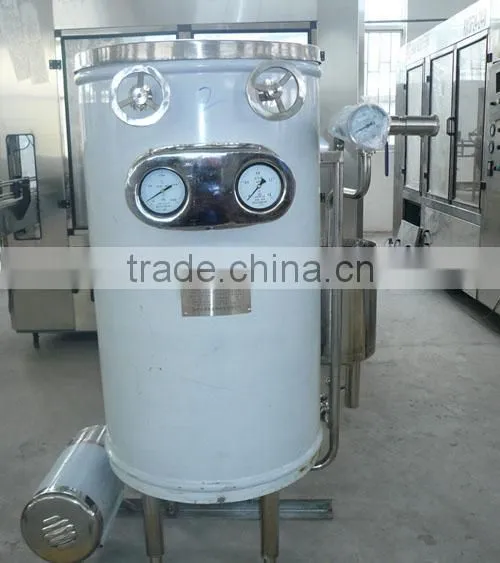

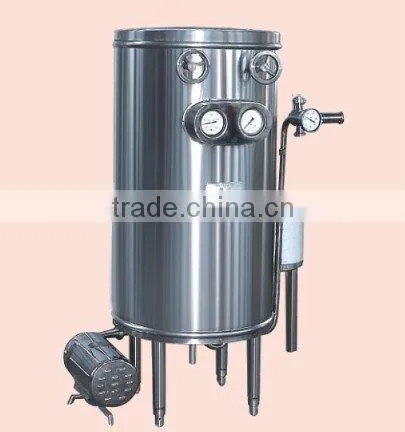

UHT
Introduction:
UHT ultra-high temperature instantaneous sterilization machine is suitable for the fresh milk, juice, beverage, frozen sucker, and ice cream paste, soy sauce, soybean milk, condensed milk, wine and other liquid materials of instantaneous sterilization, sterilization of liquid materials can also be used for. The device of feeding and discharging adopt t cock, flow can according to need to adjust, use and reliable.
Classification for UHT Milk Factory :
1. According to the heating mode can be divided into: the steam heating, electric heating
2. According to the control mode: manual ultra high temperature instantaneous sterilization machine and automatic instantaneous ultra high temperature sterilizing machine
Principle for UHT Milk Factory :
Material generally by the centrifugal pump into the sterilization machine, make the cold and hot material for heat exchange and preheating, after high temperature barrels, material was rapidly heated to and after the sterilization temperature keep about 3 seconds, the microbes and enzymes were quickly kill. Material after the heat barrel heat with cold material of heat exchange cooling, average temperature below 65 °C.
Technology parameters for UHT Milk Factory :
| (Product model) | UHT-1 | UHT-2 | UHT-4 | UHT-6 |
| (Processing power) | 0.5-1T/H | 1.5-2T/H | 3-4T/H | 5-6T/H |
| (Sterilization temperature) | 115-135°C | 115-135°C | 115-135°C | 115-135°C |
| (The use of steam pressure) | <0.4MPa | <0.4MPa | <0.7MPa | <0.78MPa |
| (High temperature heating time) | 4-6S | 4-6S | 4-6S | 4-6S |
| (The discharge temperature) | <65°C | <65°C | <65°C | <65°C |
| (motor power) | 2.2KW | 2.2KW | 4KW | 5.5KW |
| (overall dimensions) | 920*920*1400 | 1100*1100*1700 | 1200*1200*1800 | 1400*1400*2000 |
| ( net weight) | 280KG | 380KG | 550KG | 700KG |
