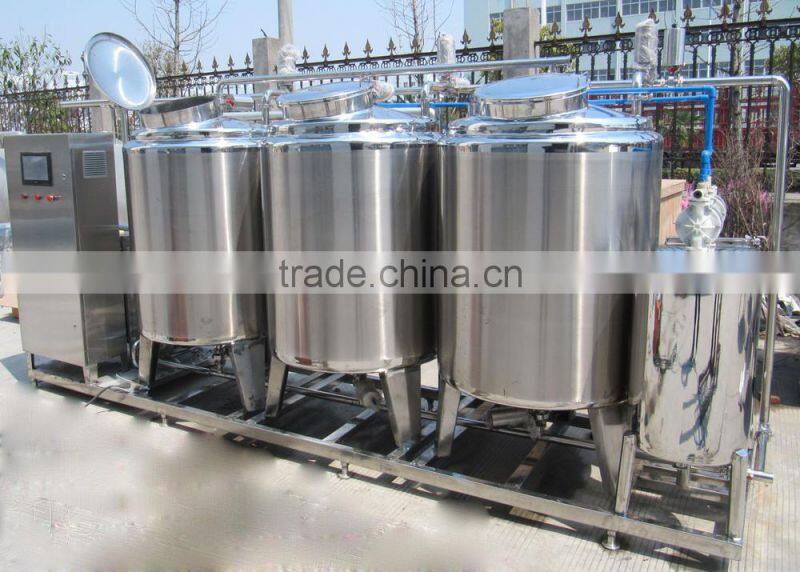

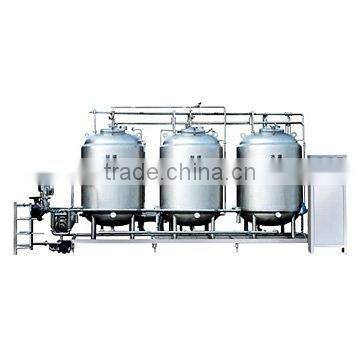

CIP local cleaning system is specialized equipment used for automatic cleaning for beverage production line and filling facility. Such as milk, juice, carbonated drink etc. a centrifugal pump is used in CIP to convey liquid into product pipes to force the cleaning agent (Acid, alkali, hot water)to circulate inside to make cleaning without dismantling pipes. It is featured by high efficiency and labor saving. Acid washing, alkali washing and thermal can be chosen.
Automatic CIP System Feature:
1. NO. of tanks-3-(for acids, alkali and for water), 3 tanks are separated, with 2pcs concentrated acid, alkali tanks.
2. Capacity of tanks: 500L each for acids, alkali and water tank, 120L for concentrate acid and alkali tanks.
3. The cleaning time, PH value, temperature can be set.
4. The new generation of man-machine dialog operation system can be arranged with certain standard with ray operation.
5. Automatic inspection of cleaning solution, dosing, discharge, display and adjustment.
6. Automatic mode and manual mode operation are available.
7. PE and S.S 316 material can be choosed for concentrated acid and concentrated lye tank
8. The cleaning process finished in complete close condition, decrease the second pollution chance
9. Recycle water system decrease water consumption
10. Membrance pump, plate heat exchanger are equipped
11. The whole operation of the CIP system is PLC controlled.
Automatic CIP System Main technology parameter:
Working pressure | 0.3-0.7Mpa normal pressure inside tank, inside steam pipe |
Working temperature | 60-138℃ inside acid and alkaline tank, water pipe ,steam pipe |
Tank volume | 500L each of acid, alkaline and hot water tank |
Centrifugal pump flux | 10 T/h |
Max. Centrifugal Head | 35m |
Pump Power | 2.2Kw |
Volume | Acid and alkaline tank |
Size (L×W×H) | 2.9×1.0×1.7m |
Weight | 350 Kg |
