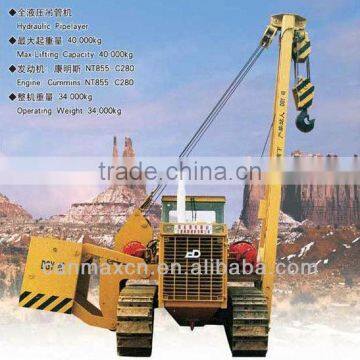

40t Multifuctional Pipelayer

Name: 40t Multifuctional Pipelayer
Brand: Daifeng
SKU: 141325696
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

US$ 39,000 - 99,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Type:

Other, pipelayer

Pipe Material:

Stainless Steel

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, pipelayer

Pipe Material Stainless Steel

Place of Origin Shandong, China

Brand Name Daifeng

Model Number DGY40

Power(W) 164kw

Dimension(L*W*H) 4.65*4.60*7.22(with boom)

Weight 34t

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Maximum lifting weight: 40t
. Rated power: 164kw
. Excellent quality & competitive price

DGY40 MULTIFUNCTION PIPELAYER

TECHNICAL SPECIFICATION:

Max. lifting capacity (t)		40
Max. lifting moment at Min. range of the boom (KN.m)		478(392kN×1.22m)
Max. lifting moment at Max. range of the boom (KN.m)		220(49kN×4.50m)
Max. lifting height of the hook (m)		4.72
Boom length (m)		6.5
Hoisting speed (eight times) (m/min)		6
Time of change rangs (s)		30
Model of chassis		PD220Y,TY230
Model of diesel engine		CUMMINS NTA855—C280
Model of hydraulic pump		CB-P63/63HF
Rated working pressure of system (Mpa)		21
Rated speed (r/min)		2000
Model of lifting winch		IYJ4BL—5500
Rated working pressure		20
Motor consumption at rated speed (ml/rev)		5848
Rated pulling force of single rope (N) (third layer)		58890
Diameter of wire rope (mm)		d18
Model of ranging winch		IYJ4B—5500
Rated working pressure in the ranging winch		18
Motor consumption at rated speed (ml/rev)		4935
Rated pulling force of single rope (N) (second layer)		600000
Diameter of wire rope (mm)		d18
temperature of surroundings (°C)		-20~+40
Overall dimension(LWH)	with boom (m)	4.65×4.60×7.22
	without boom (m)	4.65×3.40×3.00
operating weight (t)		34
