Home > Products > Pipelayers > 2013 New type 40t Multifuctional Pipelayer

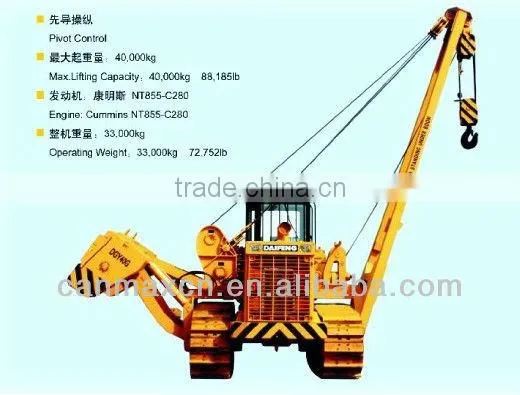

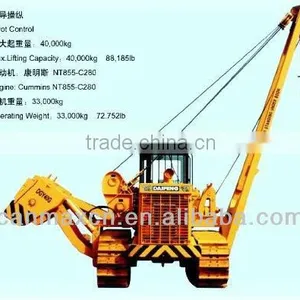

2013 New type 40t Multifuctional Pipelayer
US$ 99,000 - 169,000
/ Unit
1 Unit(Min. Order)
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, pipelayers | |
| Place of Origin | Shandong, China | Brand Name | Daifeng | |
| Model Number | DGY40G | Power(W) | 169kw | |
| Dimension(L*W*H) | 4.84*3.24*3.45/4.84*3.24*3.45(without boom) | Weight | 3460kg/34750kg | |
| Warranty | 1 year |
Product Description
Specifications
1. Maximum lifting weight: 40t2. Rated power: 169kw
3. Excellent quality & competitive price
DGY40G MULTIFUNCTION PIPELAYER
TECHNICAL SPECIFICATION:
| Max. lifting capacity (t) | 40 | ||
| Max. lifting moment at Min. range of the boom (kN.m) | 478(392kN×1.22m) | ||
| Max. lifting moment at Max. range of the boom (kN.m) | 404(73.5kN×5.50m) | ||
| Boom length(m) | 7 | 8 | |
| Max . lifting height of the hook (m) | 5.3 | 6 | |
| Hoisting speed (eight times) (m/min) | 7 | ||
| Time of change range (s) | 35 | ||
| Model of chassis | DGY-40 | ||
| Model of diesel engine | CUMMINS NT855-C280 | ||
| Rated power (kW/r.p.m) | 169/1800 | ||
| Track gauge(mm) | 2250 | ||
| length of track on ground(mm) | 3150 | ||
| Track shoe width(mm) | 660 | ||
| Model of oil hydraulic pump | CBY4140/2010 | ||
| Rated working pressure of system (MPa) | 20 | ||
| Lifting winch | Hydraulically-driven, Planetary transmission, Free -fall function | ||
| Diameter of lifting wire rope(mm) | d20 | ||
| Length of lifting wire rope(m) | 65 | ||
| Ranging winch | Hydraulically driven, Planetary transmission | ||
| Diameter of ranging wire rope(mm) | d18 | ||
| Length of ranging wire rope(m) | 55 | ||
| Temperature of surroundings(°C) | -20 ~ +40 | ||
| Overall dimension | With boom(m) | 4.84×4.54×7.70 | 4.84×4.54×8.70 |
| Without boom(m) | 4.84×3.24×3.45 | 4.84×3.24×3.45 | |
| Operating weight (kg) | 34,600 | 34,750 | |
