Home > Products > Pipelayers > Famous Brand 25t Multifuctional pipelayer

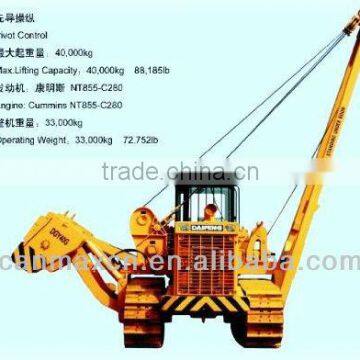

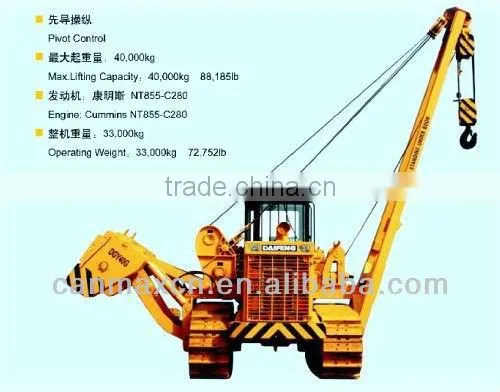

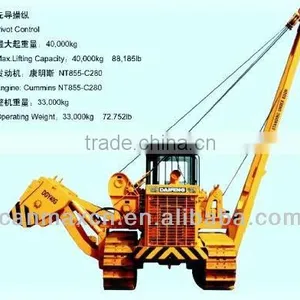

Famous Brand 25t Multifuctional pipelayer
USD $59,000 - $119,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CNC router for stone processing engraving machine
-
Glass polishing machine JMB95A
-
Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
-
Automatic aluminum window corner connector cutting machine
-
aluminum door and window frame cutting machine aluminum windows and doors machine
-
Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
| Condition: | New | Type: | Other, pipelayers | Place of Origin: | Shandong, China |
| Brand Name: | Daifeng | Model Number: | DGY25G | Power(W): | 138kw |
| Dimension(L*W*H): | 4.66*2.95*3.15(without boom) | Weight: | 24500kg | Warranty: | 1 year |
Product Description
Specifications
1. Maximum lifting weight: 25t2. Rated power: 138kw
3. Excellent quality & competitive price
DGY40G MULTIFUNCTION PIPELAYER
TECHNICAL SPECIFICATION:
| Max. lifting capacity (t) | 25 | |
| Max. lifting moment at Min. range of the boom (kN.m) | 299(245kN×1.22m) | |
| Max. lifting moment at Max. range of the boom (kN.m) | 235(39.2kN×6.0m) | |
| Boom length(m) | 6.5 | |
| Max . lifting height of the hook (m) | 4.78 | |
| Hoisting speed (eight times) (m/min) | 10 | |
| Time of change range (s) 20°-80° | 30 | |
| Model of chassis | TY165-2 | |
| Model of diesel engine | Shangchai C6121 | |
| Rated power (kW/r.p.m) | 138/1900 | |
| Track gauge(mm) | 1880 | |
| length of track on ground(mm) | 2570 | |
| Track shoe width(mm) | 560 | |
| Model of oil hydraulic pump | CBY4140/2010 | |
| Rated working pressure of system (MPa) | 20 | |
| Lifting winch | Hydraulically-driven, Planetary transmission, Free -fall function | |
| Diameter of lifting wire rope(mm) | d18 | |
| Length of lifting wire rope(m) | 55 | |
| Ranging winch | Hydraulically-driven, Planetary transmission, Free -fall function | |
| Diameter of ranging wire rope(mm) | d16 | |
| Length of ranging wire rope(m) | 42 | |
| Temperature of surroundings(°C) | -20 ~ +50 | |
| Overall dimension | With boom(m) | 4.66×4.17×7.17 |
| Without boom(m) | 4.66×2.95×3.15 | |
| Ground pressure | With full load(MPa) | 0.14 |
| Operating weight (kg) | 24,500 | |
