Good Price 90t Multifuctional Pipelayer
US$ 379,000 - 419,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, pipelayers
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2013 New Type 40t Multifuctional PipelayerUS$ 99,000 - 169,000MOQ: 1 Unit -
Famous Brand 25t Multifuctional PipelayerUS$ 59,000 - 119,000MOQ: 1 Unit
-
Pipelayer 25t SP25YUS$ 70,000 - 80,000MOQ: 1 Set
-
Pipelayer 45t SP45YUS$ 180,000 - 200,000MOQ: 1 Set
-
Pipelayer 70t SP70YUS$ 250,000 - 270,000MOQ: 1 Set
Condition
New
Type
Other, pipelayers
Place of Origin
Shandong, China
Brand Name
Daifeng
Model Number
DGY90
Power(W)
257kw
Dimension(L*W*H)
5.4*4.95*8.13/5.4*4.95*9.21mm(with boom)
Weight
57.3t/ 58t
Warranty
12 months
Specifications
1. Maximum lifting weight: 90t2. Rated power: 257kw
3. Excellent quality & competitive price

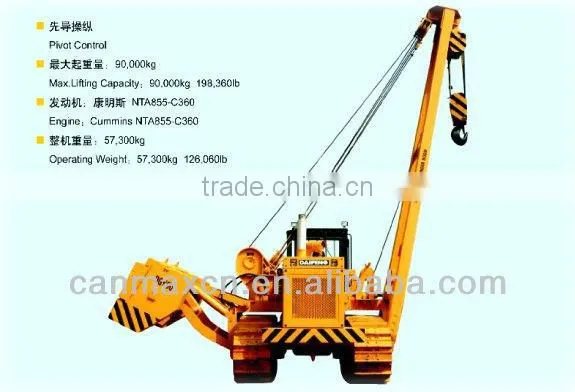

DGY90 MULTIFUNCTION PIPELAYER
TECHNICAL SPECIFICATION:
| Max. lifting capacity (t) | 90 | ||
| Max. lifting moment at Min. range of the boom (kN.m) | 1076(882kN×1.22m) | ||
| Max. lifting moment at Max. range of the boom (kN.m) | 891.8(127.4kN×7m) | ||
| Boom length(m) | 7.35 | 8.6 | |
| Max . lifting height of the hook (m) | 5.75 | 7.1 | |
| Hoisting speed(eight times) (m/min) | 6 | ||
| Time of change range (s) | 60 | ||
| Model of chassis | DGY-90 | ||
| Model of diesel engine | CUMMINS NT855-C360 | ||
| Rated power (kW/r.p.m) | 257/2000 | ||
| Track gauge(mm) | 2480 | ||
| length of track on ground(mm) | 3620 | ||
| Track shoe width(mm) | 760 | 860 | |
| Model of oil hydraulic pump | CBj125/100/08 | ||
| Rated working pressure of system (MPa) | 20.5 | ||
| Lifting winch | Hydrauliclly driven,Planetary transmission,Free-fall function | ||
| Rated pulling force of system (N) (third layer) | 120,000 | ||
| Diameter of wire rope(mm) | φ22 | ||
| Ranging winch | Hydrauliclly driven,Planetary transmission | ||
| Rated pulling force of system (N) (second layer) | 100,000 | ||
| Diameter of wire rope(mm) | φ22 | ||
| Temperature of surroundings(°C) | -20 ~ +40 | ||
| Overall dimension | With boom(m) | 5.4×4.95×8.13 | 5.4×4.95×9.21 |
| (Length×Width×Height) | Without boom(m) | 5.4×3.47×3.30 | 5.4×3.47×3.30 |
| Ground Pressure | Without load (MPa) | 0.104 | 0.105 |
| With loading of 10t(MPa) | 0.122 | 0.109 | |
| Operating weight (kg) | 57,300 | 58,000 | |
