Help Center90t Pipelayer PMGY90
Related Products
Specifications
1.Good quality,low price.2.World famous brand,professional service
3.Max.lifting capacity:90t.

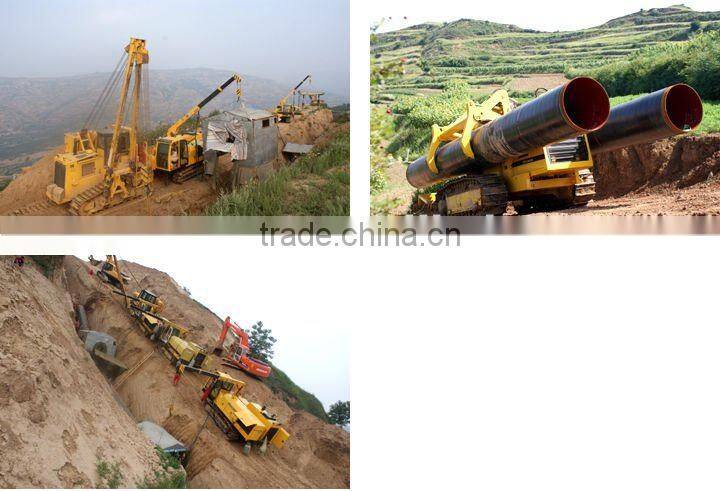

PMGY 90 full hydraulic sideboom is a self-developed high tonnage sideboom which adopts fulll hydraulic driving micro computer control and specialized chassis. It realizes harmonious uniform of machine, electric, and hydraulic mechanisms with advanced control system. It possesses advantages of high automation degree, smooth traveling, simple operation, high efficiency and energy saving, safe & reliable, and low maintenance cost.
Model |
PMGY90 |
||
Max. lifting capacity t |
90 |
||
Rated lifting capacity t |
76.5 |
||
Gross weight(around) t |
60,1 |
||
Transportation dimension (L×W×H) mm |
5800×3315×3100 |
||
Transportation Weight t |
37 |
||
Average ground pressure KPa |
80.2 |
||
Min. ground clearance mm |
433 |
||
Max. climbing capacity ° |
20 |
||
Suitable ambient conditions |
Ambient temperature: -20 °C ~ 40 °C Altitude: below 3000m |
||
Engine |
Model |
Cummins QSM 11-C400 |
|
|
Rtd. power/Rtd. rotating speed |
298/2100 |
||
Traveling System |
Chassis |
Specially designed chassis for sideboom |
|
Control mode |
electrical control handle |
||
Theoretical speed km/h |
0 ~ 2 : 0 ~ 5.1 Two gears infinite speed variable |
||
Length of track on ground mm |
3700 |
||
Track width mm |
900 |
||
Track ro ll er Nos. |
8×2 ( single flange 6×2 , double flange2×2 ) |
||
|
Hoisting system |
Luffing Type |
Wire rope luffing |
|
Operational type |
Electronic control handle |
||
Sideboom |
Length mm |
8600 |
|
Max. lifting height mm |
7000 |
||
Boom luffing angle ° |
0~86 |
||
Hook speed( 8 MF)m/min |
0~4.1and 0~8.1(Two gears infinite speed adjustable) |
||
Luffing time s |
30 |
||
Applied standards |
Q/GDR 008-2008 , ISO8813-92 |
||
