Specifications
1.Good quality and low price.2.Impotrd hydraulic parts,professional service
3.Max.lifting capacity:10t
Features:

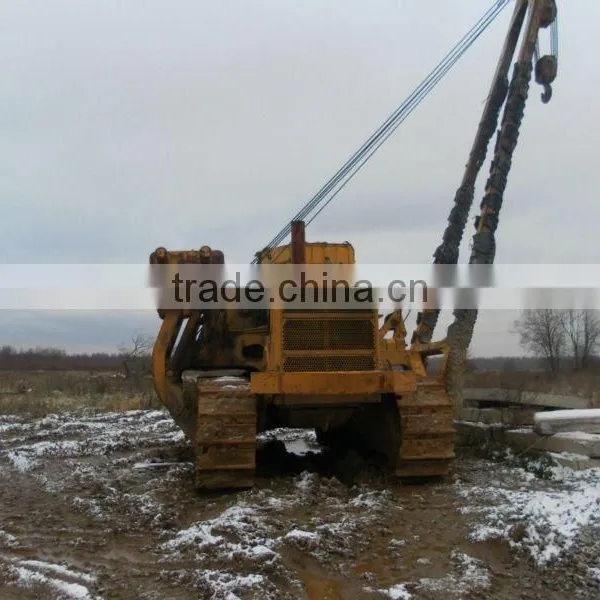

The SP100Y pipe layer is equipped with advanced international technology to provide load feedback and prevent overloading. The SP100Y is mainly used for laying large, heavy pipes. The gear shift and steering systems are operated by an electrical lever which is reliable and flexible. With a hydraulic pilot control system, the operations of working devices such as the hook and lifting arm are integrated into a single lever, which is capable of precise, sensitive performance. The machine has been designed to specially measure operating functions in order to prevent overturning or rolling over.
Type | SP100Y |
Engine Model | KTA19-c525 |
Rated power & revolution (kw/rpm) | 310/2000 |
Max.lifting weight(t) | 100 |
Operating weight(kg) | 61000 |
L x W xH(mm) | 6041/4125/3981 |
Min.turning radius(mm) | 3700 |
Track gauge (mm) | 2550 |
Ground length(mm) | 3750 |
Track shoes width(mm) | 860 |
Ground Pressure(Mpa) | 0.085Mpa |
Mas.lifting height(mm) | 7800mm |
Boom swing amplitude (m) | 1.2-9.0m |
Hook speed (m/min) | 0-6.5 |
Boom length(m) | 8.6 |
