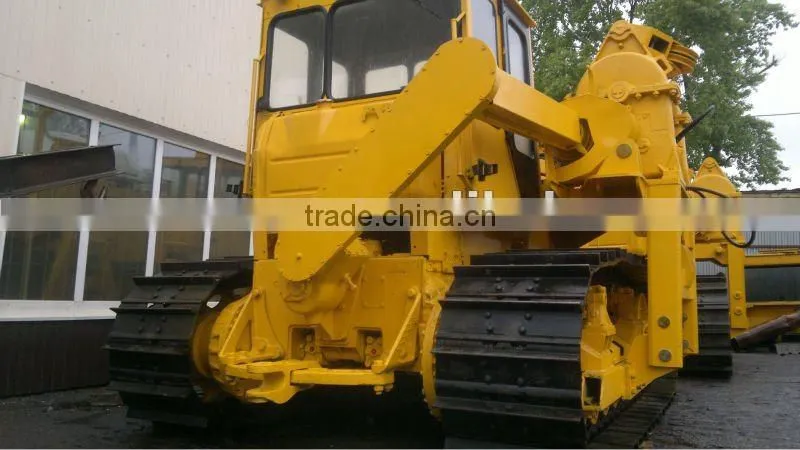

Help Center45t Pipelayer SP45YS
Related Products
Specifications
1.Good quality, low price.2.World famous brand,and professional service
3.Max.lifting capacity:45t.
Features:
The SP45YS swamp pipe layer is equipped with advanced international technology to provide load feedback and prevent overloading while working on pipe laying projects in wetlands. With a hydraulic pilot control system, the operations of working devices such as the hook and lifting arm are integrated into a single lever, which is capable of precise, sensitive performance. The machine has been designed to specially measure operating functions in order to prevent overturning or rolling over.
Type |
SP45YS |
Engine Model |
Cummins NTA855-C280 |
Rated power & revolution (kw/rpm) |
169/2000 |
Max.lifting weight(t) |
45 |
Operating weight(kg) |
34000 |
L x W xH(mm) |
4750*4400*3375 |
Min.turning radius(mm) |
3600 |
Track gauge (mm) |
2550 |
Ground length(mm) |
3480 |
Track shoes width(mm) |
910(1050) |
Ground Pressure(Mpa) |
0.051(0.046) |
Mas.lifting height(mm) |
5250 7210(7500) |
Boom swing amplitude (m) |
1.4-6.65 |
Hook speed (m/min) |
0-6.0 |
Boom length(m) |
6.5(7.5) |
